ACD GRUPPE M2Smart SE Set Kurzübersicht Seite 83

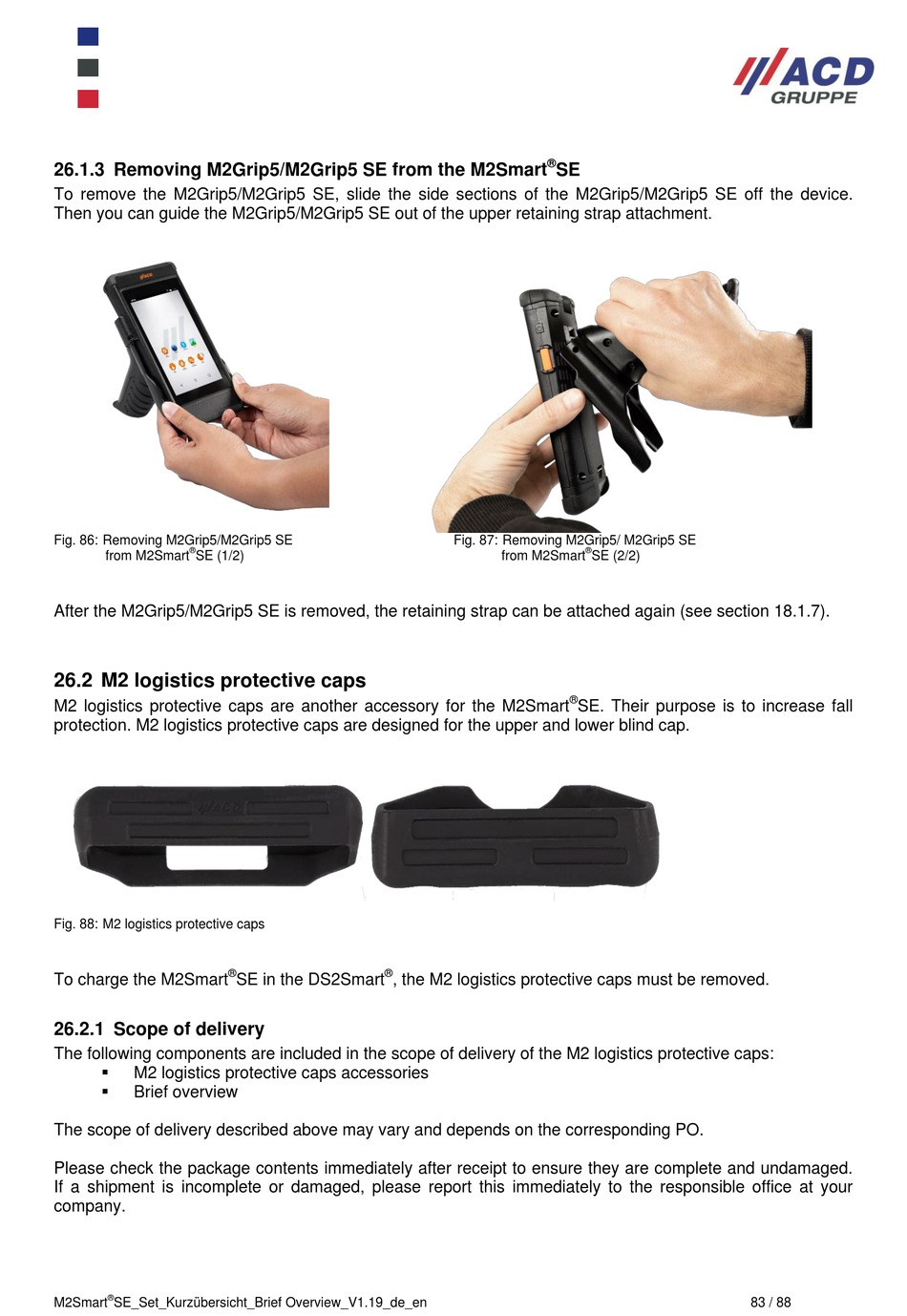

26.1.3 Removing M2Grip5/M2Grip5 SE from the M2Smart
To remove the M2Grip5/M2Grip5 SE, slide the side sections of the M2Grip5/M2Grip5 SE off the device.
Then you can guide the M2Grip5/M2Grip5 SE out of the upper retaining strap attachment.
Fig. 86: Removing M2Grip5/M2Grip5 SE
®
from M2Smart SE (1/2)
After the M2Grip5/M2Grip5 SE is removed, the retaining strap can be attached again (see section 18.1.7).
26.2 M2 logistics protective caps
M2 logistics protective caps are another accessory for the M2Smart
protection. M2 logistics protective caps are designed for the upper and lower blind cap.
Fig. 88: M2 logistics protective caps
To charge the M2Smart
26.2.1 Scope of delivery
The following components are included in the scope of delivery of the M2 logistics protective caps:

M2 logistics protective caps accessories

Brief overview
The scope of delivery described above may vary and depends on the corresponding PO.
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.19_de_en
® ®
SE in the DS2Smart , the M2 logistics protective caps must be removed.
®
SE
Fig. 87: Removing M2Grip5/ M2Grip5 SE
®
from M2Smart SE (2/2)
®
SE. Their purpose is to increase fall
83 / 88
