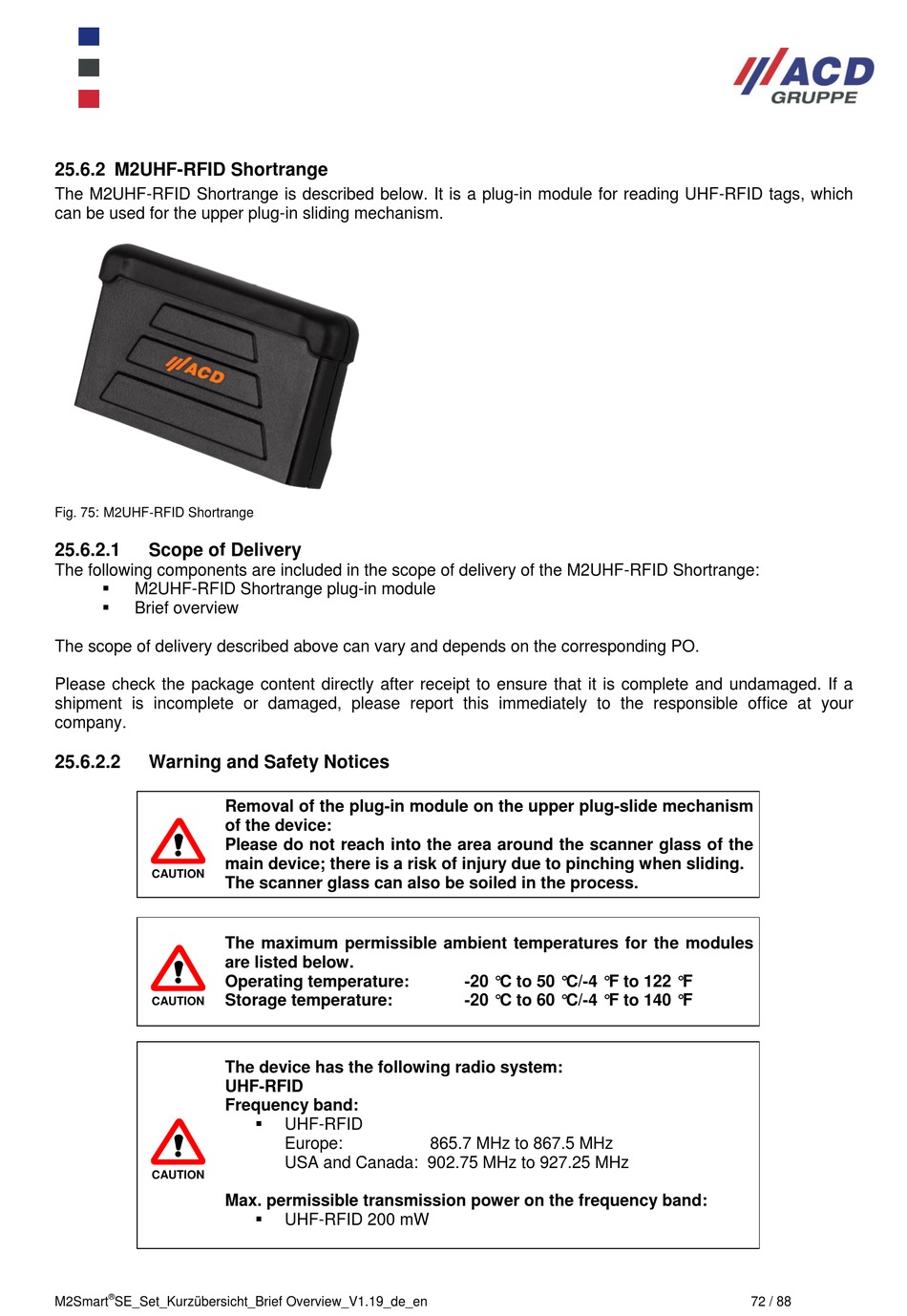

25.6.2 M2UHF-RFID Shortrange
The M2UHF-RFID Shortrange is described below. It is a plug-in module for reading UHF-RFID tags, which
can be used for the upper plug-in sliding mechanism.
Fig. 75: M2UHF-RFID Shortrange
25.6.2.1 Scope of Delivery
The following components are included in the scope of delivery of the M2UHF-RFID Shortrange:

M2UHF-RFID Shortrange plug-in module

Brief overview
The scope of delivery described above can vary and depends on the corresponding PO.
Please check the package content directly after receipt to ensure that it is complete and undamaged. If a
shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
25.6.2.2 Warning and Safety Notices
Removal of the plug-in module on the upper plug-slide mechanism
of the device:
Please do not reach into the area around the scanner glass of the
main device; there is a risk of injury due to pinching when sliding.
CAUTION
The scanner glass can also be soiled in the process.
The maximum permissible ambient temperatures for the modules
are listed below.
Operating temperature:
Storage temperature:
CAUTION
The device has the following radio system:
UHF-RFID
Frequency band:
CAUTION
Max. permissible transmission power on the frequency band:
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.19_de_en

UHF-RFID
Europe:
USA and Canada: 902.75 MHz to 927.25 MHz

UHF-RFID 200 mW
-20 °C to 50 °C/-4 °F to 122 °F
-20 °C to 60 °C/-4 °F to 140 °F
865.7 MHz to 867.5 MHz
