18.1.7 Changing the retaining strap
To remove the retaining strap, turn the device on its back and open the Velcro closure of the retaining strap.
Then loosen the retaining strap eyelet at the bottom of the unit and pull the retaining strap down through the
upper retaining strap attachment.

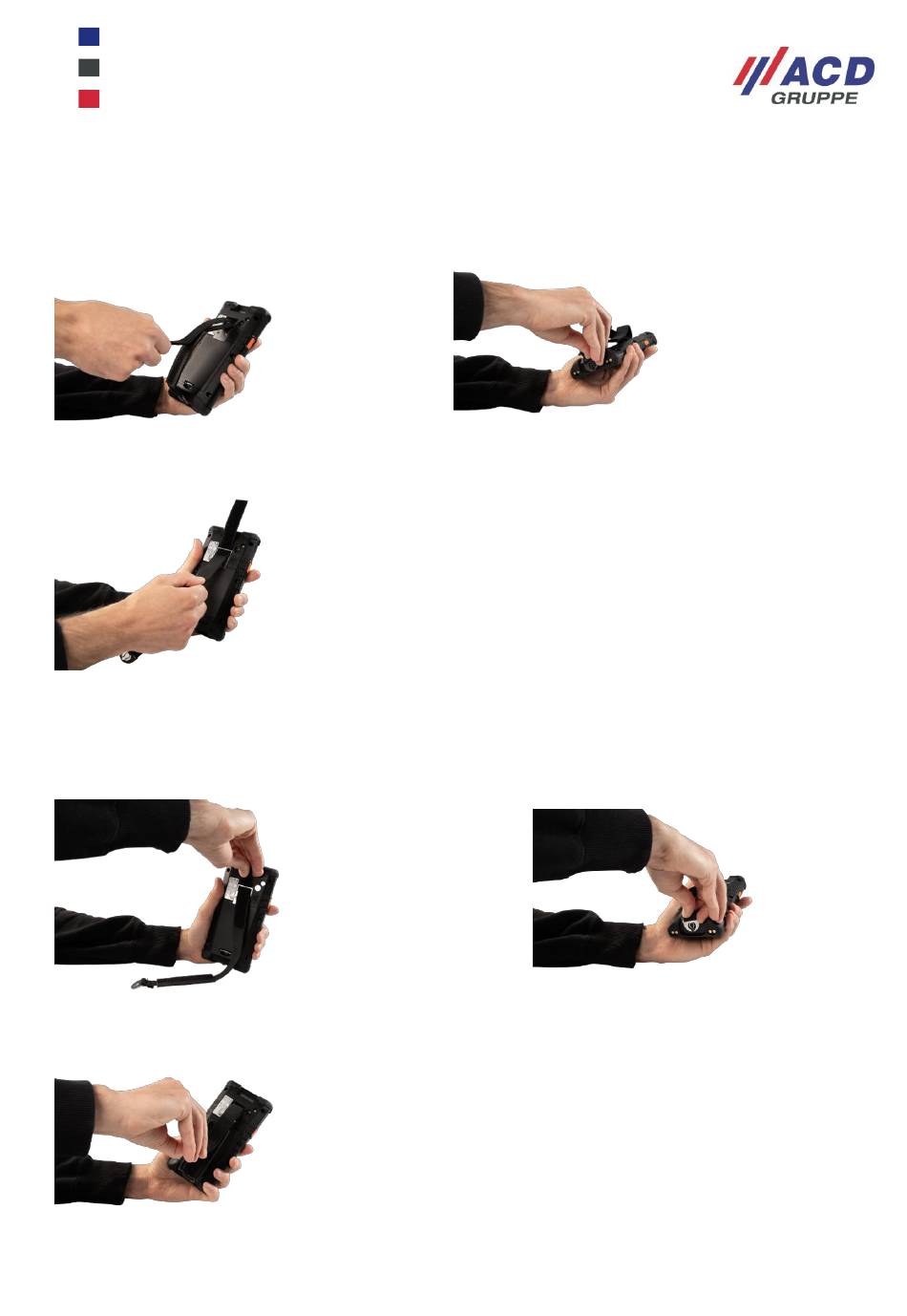

Fig. 52: Opening the Velcro closure of the retaining strap Fig. 53: Detaching the retaining strap eyelet
Fig. 54: Pulling out the retaining strap down
To reattach the retaining strap, turn the unit on its back and pull the retaining strap from below through the
upper retaining strap attachment. Then close the retaining strap eyelet at the bottom of the device and close
the Velcro closure of the retaining strap.
Fig. 55: Pulling the retaining strap through the retaining strap attachment Fig. 56: Attaching the retaining strap eyelet
Fig. 57: Closing the Velcro closure of the retaining strap
®
