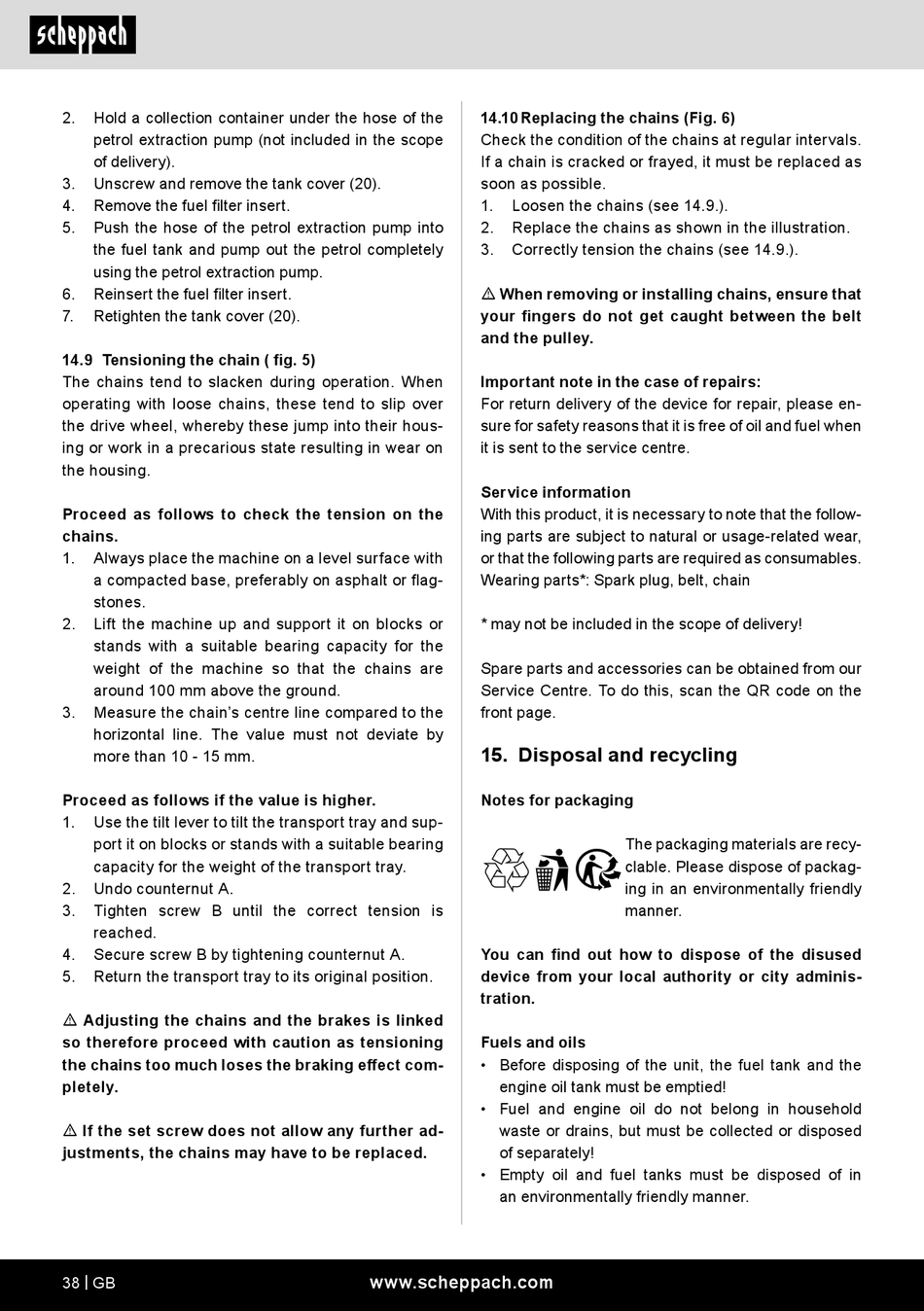

Scheppach DP5000 Originalbetriebsanleitung Seite 38

2. Hold a collection container under the hose of the
petrol extraction pump (not included in the scope
of delivery).
3. Unscrew and remove the tank cover (20).
4. Remove the fuel filter insert.
5. Push the hose of the petrol extraction pump into
the fuel tank and pump out the petrol completely
using the petrol extraction pump.
6. Reinsert the fuel filter insert.
7. Retighten the tank cover (20).
14.9 Tensioning the chain ( fig. 5)
The chains tend to slacken during operation. When
operating with loose chains, these tend to slip over
the drive wheel, whereby these jump into their hous-
ing or work in a precarious state resulting in wear on
the housing.
Proceed as follows to check the tension on the
chains.
1. Always place the machine on a level surface with
a compacted base, preferably on asphalt or flag-
stones.
2. Lift the machine up and support it on blocks or
stands with a suitable bearing capacity for the
weight of the machine so that the chains are
around 100 mm above the ground.
3. Measure the chain's centre line compared to the
horizontal line. The value must not deviate by
more than 10 - 15 mm.
Proceed as follows if the value is higher.
1. Use the tilt lever to tilt the transport tray and sup-
port it on blocks or stands with a suitable bearing
capacity for the weight of the transport tray.
2. Undo counternut A.
3. Tighten screw B until the correct tension is
reached.
4. Secure screw B by tightening counternut A.
5. Return the transport tray to its original position.
m Adjusting the chains and the brakes is linked
so therefore proceed with caution as tensioning
the chains too much loses the braking effect com-
pletely.
m If the set screw does not allow any further ad-
justments, the chains may have to be replaced.
38 | GB
14.10 Replacing the chains (Fig. 6)
Check the condition of the chains at regular intervals.
If a chain is cracked or frayed, it must be replaced as
soon as possible.
1. Loosen the chains (see 14.9.).
2. Replace the chains as shown in the illustration.
3. Correctly tension the chains (see 14.9.).
m When removing or installing chains, ensure that
your fingers do not get caught between the belt
and the pulley.
Important note in the case of repairs:
For return delivery of the device for repair, please en-
sure for safety reasons that it is free of oil and fuel when
it is sent to the service centre.
Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consumables.
Wearing parts*: Spark plug, belt, chain
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
15. Disposal and recycling
Notes for packaging
You can find out how to dispose of the disused
device from your local authority or city adminis-
tration.
Fuels and oils
• Before disposing of the unit, the fuel tank and the
engine oil tank must be emptied!
• Fuel and engine oil do not belong in household
waste or drains, but must be collected or disposed
of separately!
• Empty oil and fuel tanks must be disposed of in
an environmentally friendly manner.
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
