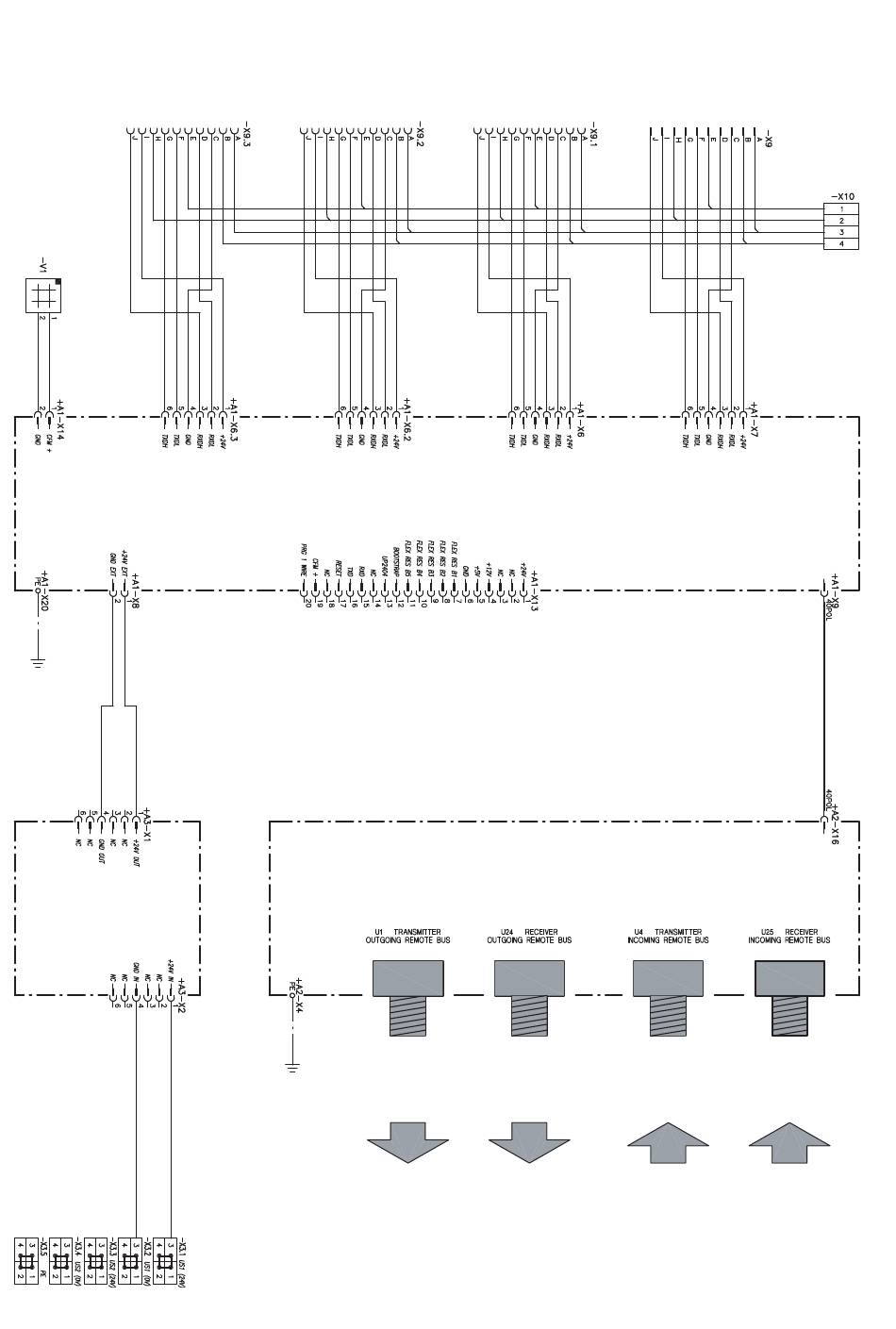

SCHALTPLAN / CIRCUIT DIAGRAM - INTERBUS 2MB FSMA (4,045,926 A)
INTERCONNECTION WELDING CURRENT
REMOTE CONTROL REMOTE CONTROL
HOSE PACK SOURCE
CFM INTERFACE 4 INTERFACE 3 INTERFACE 2 INTERFACE 1
(OUT3) (OUT2) (OUT1) (IN)
+A1 UBST1 4,070,744
EXT
+A2 IBS2M-FSMA 4,070,746
+A3
NT24-24A
4,070,853
