Fronius InterBus 2 MB Bedienungsanleitung Seite 88

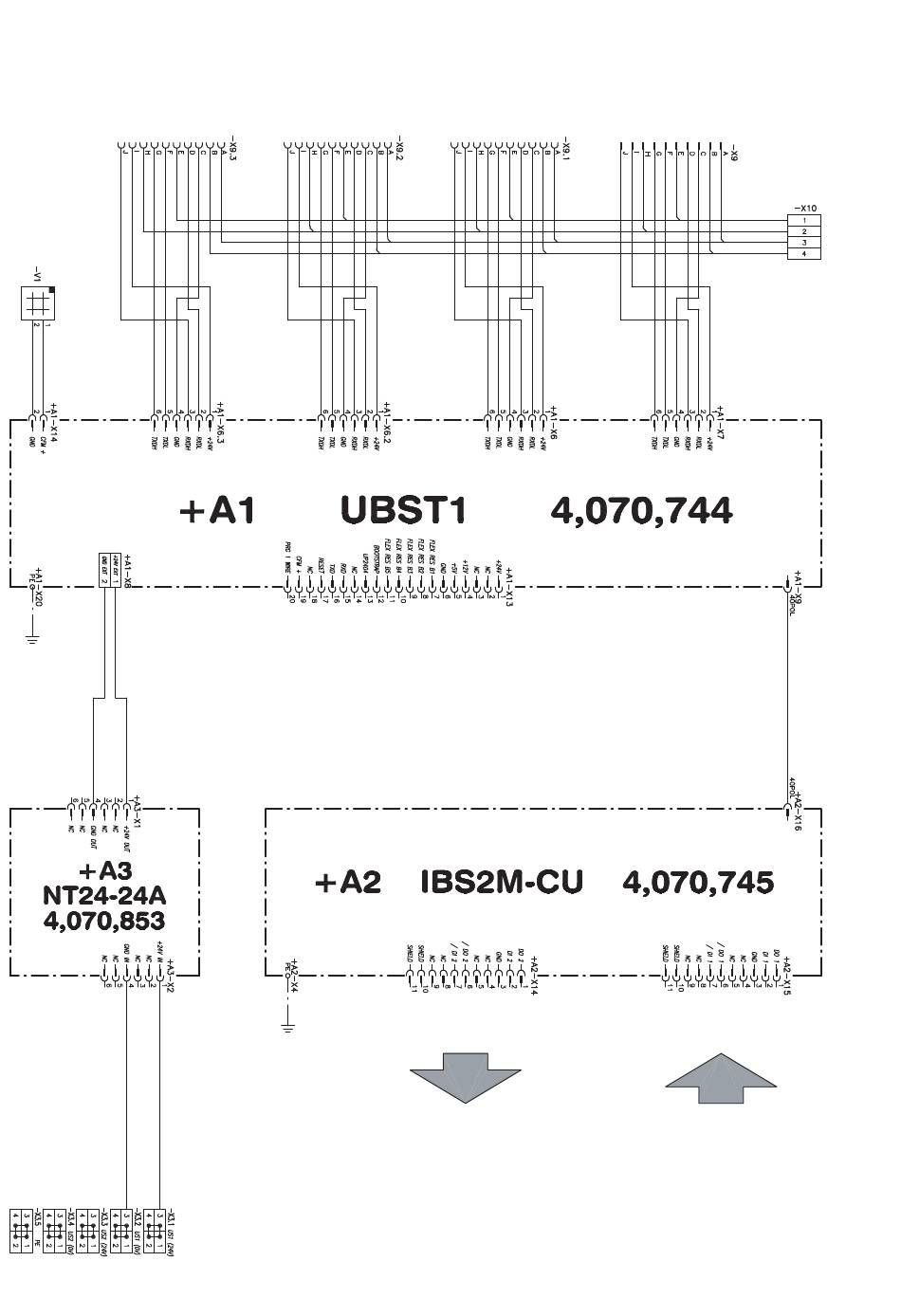

SCHALTPLAN / CIRCUIT DIAGRAM - INTERBUS 2MB KUPFER
(4,045,923A)
INTERCONNECTION WELDING CURRENT
REMOTE CONTROL REMOTE CONTROL
HOSE PACK SOURCE
CFM INTERFACE 4 INTERFACE 3 INTERFACE 2 INTERFACE 1
(OUT3) (OUT2) (OUT1) (IN)
EXT
OUTGOING REMOTE BUS INCOMING REMOTE BUS
