„L1 - L7" LEDs
LED
(3)
L1
L2
L3
L6
L7
„L1" LED on:
The error description and the corresponding display on the power source are described
in the „Robot interface" leaflet (42,0410,0616):
chapter entitled „Output signals to robot", section „Error number UBST"
„L1" LED flashing - error is communicated using the flash code:

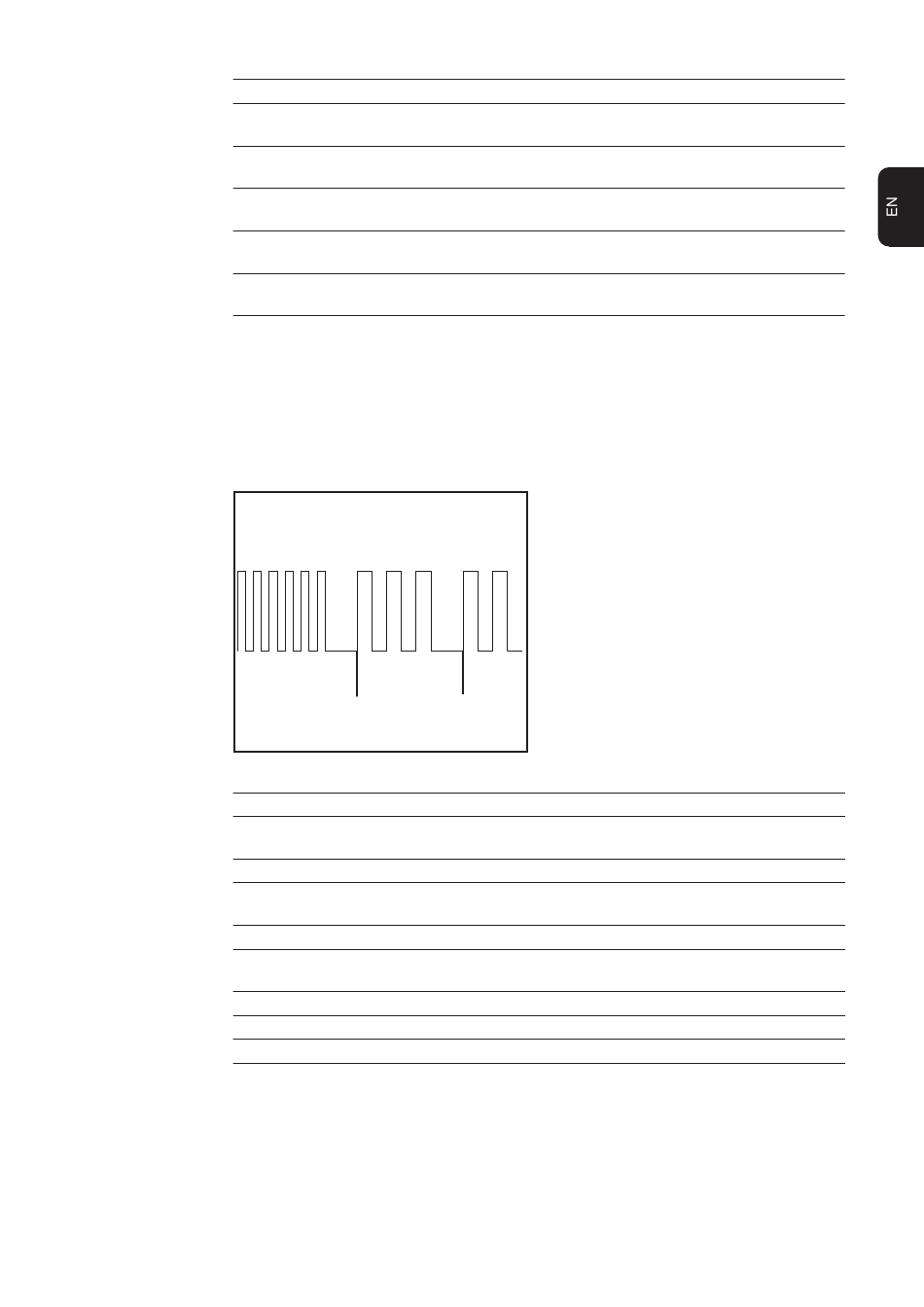

Fig. 4 Flash code
Error code
1
„EXT" LED (4) The „EXT" LED (4) comes on if the external supply voltage is selected using the „EXT"
jumper (5).
Indicator
On/flashing
On
Flashing
On
Flashing
(a) (b)
Error argument Error description
1 Max. Ethernet frame size
exceeded
2 Incorrect mailbox type
4 UDP data underflow on
port 15000
5 UDP data overflow
6 UDP data underflow on
port 15001
7 Incorrect UDP port
8 Error during stack initialisation
9 Invalid function
Meaning
Error occurred
in module
Communication on the
Fronius LocalNet is active
Ethernet stack sending
data
Ethernet - physical
connection present
Ethernet data trans-
mission active
(a) Rapid flashing:
Start of the error code
(b) First slow pulse:
Type of error
(c) Second slow pulse:
Error location
(c)
7
Remedy
See error number in
table/after sales service
-
-
-
-
Remedy
Switch interface
off and on again
