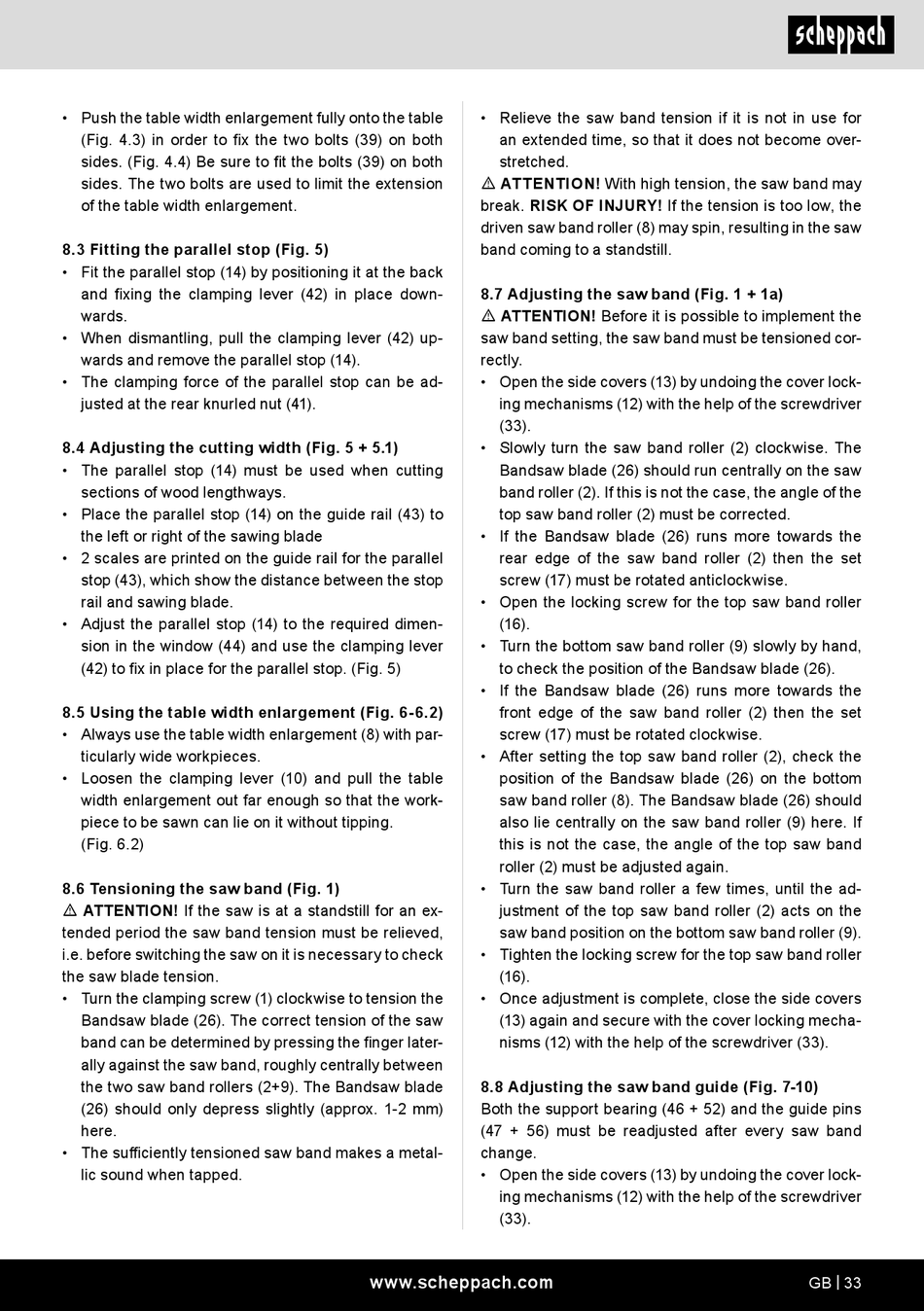

Scheppach HBS30 Original Bedienungsanleitung Seite 33

• Push the table width enlargement fully onto the table
(Fig. 4.3) in order to fix the two bolts (39) on both
sides. (Fig. 4.4) Be sure to fit the bolts (39) on both
sides. The two bolts are used to limit the extension
of the table width enlargement.
8.3 Fitting the parallel stop (Fig. 5)
• Fit the parallel stop (14) by positioning it at the back
and fixing the clamping lever (42) in place down-
wards.
• When dismantling, pull the clamping lever (42) up-
wards and remove the parallel stop (14).
• The clamping force of the parallel stop can be ad-
justed at the rear knurled nut (41).
8.4 Adjusting the cutting width (Fig. 5 + 5.1)
• The parallel stop (14) must be used when cutting
sections of wood lengthways.
• Place the parallel stop (14) on the guide rail (43) to
the left or right of the sawing blade
• 2 scales are printed on the guide rail for the parallel
stop (43), which show the distance between the stop
rail and sawing blade.
• Adjust the parallel stop (14) to the required dimen-
sion in the window (44) and use the clamping lever
(42) to fix in place for the parallel stop. (Fig. 5)
8.5 Using the table width enlargement (Fig. 6-6.2)
• Always use the table width enlargement (8) with par-
ticularly wide workpieces.
• Loosen the clamping lever (10) and pull the table
width enlargement out far enough so that the work-
piece to be sawn can lie on it without tipping.
(Fig. 6.2)
8.6 Tensioning the saw band (Fig. 1)
m ATTENTION! If the saw is at a standstill for an ex-
tended period the saw band tension must be relieved,
i.e. before switching the saw on it is necessary to check
the saw blade tension.
• Turn the clamping screw (1) clockwise to tension the
Bandsaw blade (26). The correct tension of the saw
band can be determined by pressing the finger later-
ally against the saw band, roughly centrally between
the two saw band rollers (2+9). The Bandsaw blade
(26) should only depress slightly (approx. 1-2 mm)
here.
• The sufficiently tensioned saw band makes a metal-
lic sound when tapped.
• Relieve the saw band tension if it is not in use for
an extended time, so that it does not become over-
stretched.
m ATTENTION! With high tension, the saw band may
break. RISK OF INJURY! If the tension is too low, the
driven saw band roller (8) may spin, resulting in the saw
band coming to a standstill.
8.7 Adjusting the saw band (Fig. 1 + 1a)
m ATTENTION! Before it is possible to implement the
saw band setting, the saw band must be tensioned cor-
rectly.
• Open the side covers (13) by undoing the cover lock-
ing mechanisms (12) with the help of the screwdriver
(33).
• Slowly turn the saw band roller (2) clockwise. The
Bandsaw blade (26) should run centrally on the saw
band roller (2). If this is not the case, the angle of the
top saw band roller (2) must be corrected.
• If the Bandsaw blade (26) runs more towards the
rear edge of the saw band roller (2) then the set
screw (17) must be rotated anticlockwise.
• Open the locking screw for the top saw band roller
(16).
• Turn the bottom saw band roller (9) slowly by hand,
to check the position of the Bandsaw blade (26).
• If the Bandsaw blade (26) runs more towards the
front edge of the saw band roller (2) then the set
screw (17) must be rotated clockwise.
• After setting the top saw band roller (2), check the
position of the Bandsaw blade (26) on the bottom
saw band roller (8). The Bandsaw blade (26) should
also lie centrally on the saw band roller (9) here. If
this is not the case, the angle of the top saw band
roller (2) must be adjusted again.
• Turn the saw band roller a few times, until the ad-
justment of the top saw band roller (2) acts on the
saw band position on the bottom saw band roller (9).
• Tighten the locking screw for the top saw band roller
(16).
• Once adjustment is complete, close the side covers
(13) again and secure with the cover locking mecha-
nisms (12) with the help of the screwdriver (33).
8.8 Adjusting the saw band guide (Fig. 7-10)
Both the support bearing (46 + 52) and the guide pins
(47 + 56) must be readjusted after every saw band
change.
• Open the side covers (13) by undoing the cover lock-
ing mechanisms (12) with the help of the screwdriver
(33).
