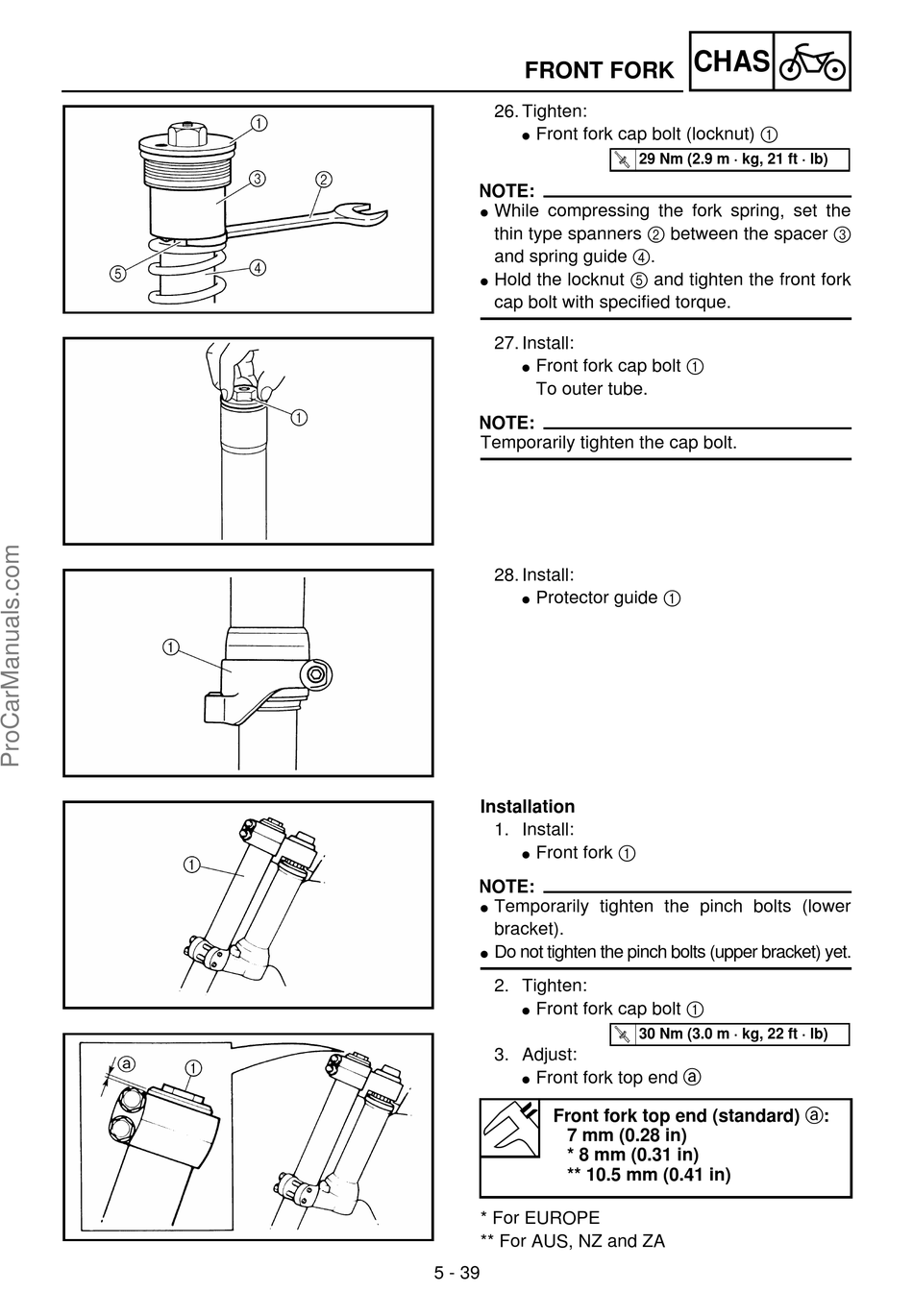

FRONT FORK
26. Tighten:
Front fork cap bolt (locknut) 1
NOTE:
While compressing the fork spring, set the
thin type spanners 2 between the spacer 3
and spring guide 4.
Hold the locknut 5 and tighten the front fork
cap bolt with specified torque.
27. Install:
Front fork cap bolt 1
To outer tube.
NOTE:
Temporarily tighten the cap bolt.
28. Install:
Protector guide 1
Installation
1. Install:
Front fork 1
NOTE:
Temporarily tighten the pinch bolts (lower
bracket).
Do not tighten the pinch bolts (upper bracket) yet.
2. Tighten:
Front fork cap bolt 1
3. Adjust:
Front fork top end a
Front fork top end (standard) a:
7 mm (0.28 in)
* 8 mm (0.31 in)
** 10.5 mm (0.41 in)
* For EUROPE
** For AUS, NZ and ZA
5 - 39
CHAS
29 Nm (2.9 m · kg, 21 ft · lb)
30 Nm (3.0 m · kg, 22 ft · lb)
