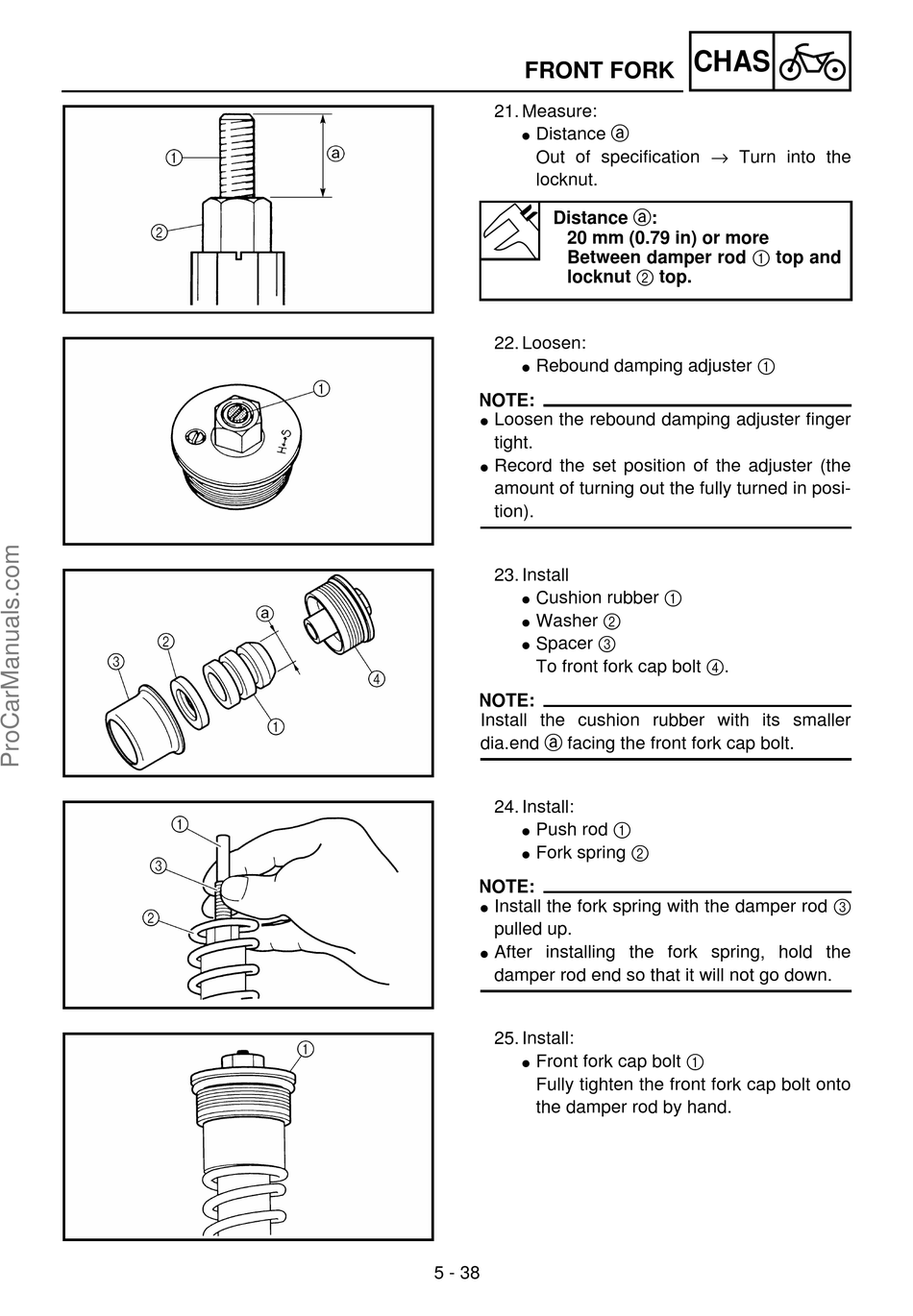

FRONT FORK
21. Measure:
Distance a
Out of specification → Turn into the
locknut.
Distance a:
20 mm (0.79 in) or more
Between damper rod 1 top and
locknut 2 top.
22. Loosen:
Rebound damping adjuster 1
NOTE:
Loosen the rebound damping adjuster finger
tight.
Record the set position of the adjuster (the
amount of turning out the fully turned in posi-
tion).
23. Install
Cushion rubber 1
Washer 2
Spacer 3
To front fork cap bolt 4.
NOTE:
Install the cushion rubber with its smaller
dia.end a facing the front fork cap bolt.
24. Install:
Push rod 1
Fork spring 2
NOTE:
Install the fork spring with the damper rod 3
pulled up.
After installing the fork spring, hold the
damper rod end so that it will not go down.
25. Install:
Front fork cap bolt 1
Fully tighten the front fork cap bolt onto
the damper rod by hand.
5 - 38
