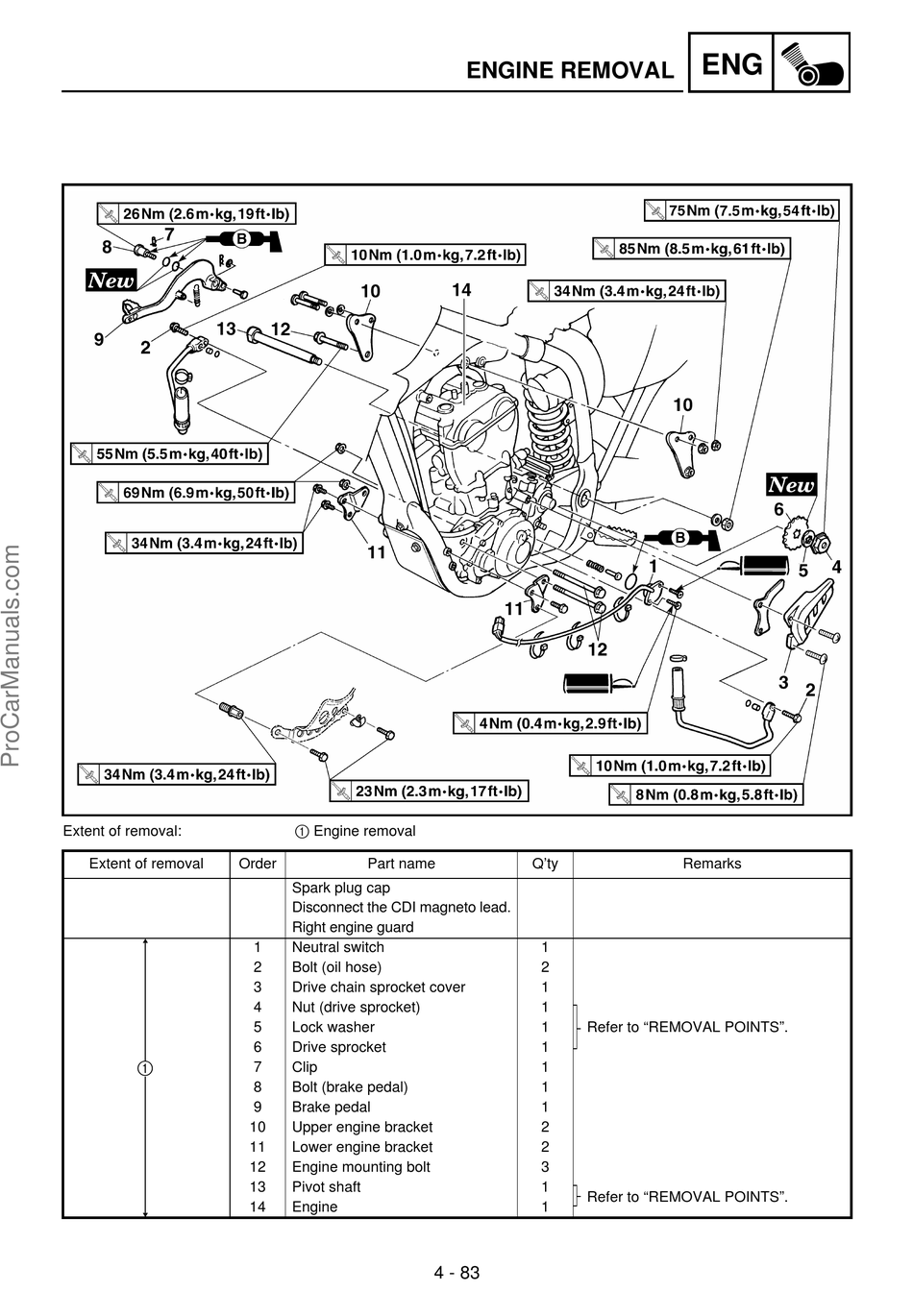

Extent of removal:
Extent of removal
1
1 Engine removal
Order Part name
Spark plug cap
Disconnect the CDI magneto lead.
Right engine guard
1 Neutral switch
2 Bolt (oil hose)
3 Drive chain sprocket cover
4 Nut (drive sprocket)
5 Lock washer
6 Drive sprocket
7 Clip
8 Bolt (brake pedal)
9 Brake pedal
10 Upper engine bracket
11 Lower engine bracket
12 Engine mounting bolt
13 Pivot shaft
14 Engine
ENGINE REMOVAL
Q'ty
1
2
1
1
1 Refer to "REMOVAL POINTS".
1
1
1
1
2
2
3
1
Refer to "REMOVAL POINTS".
1
