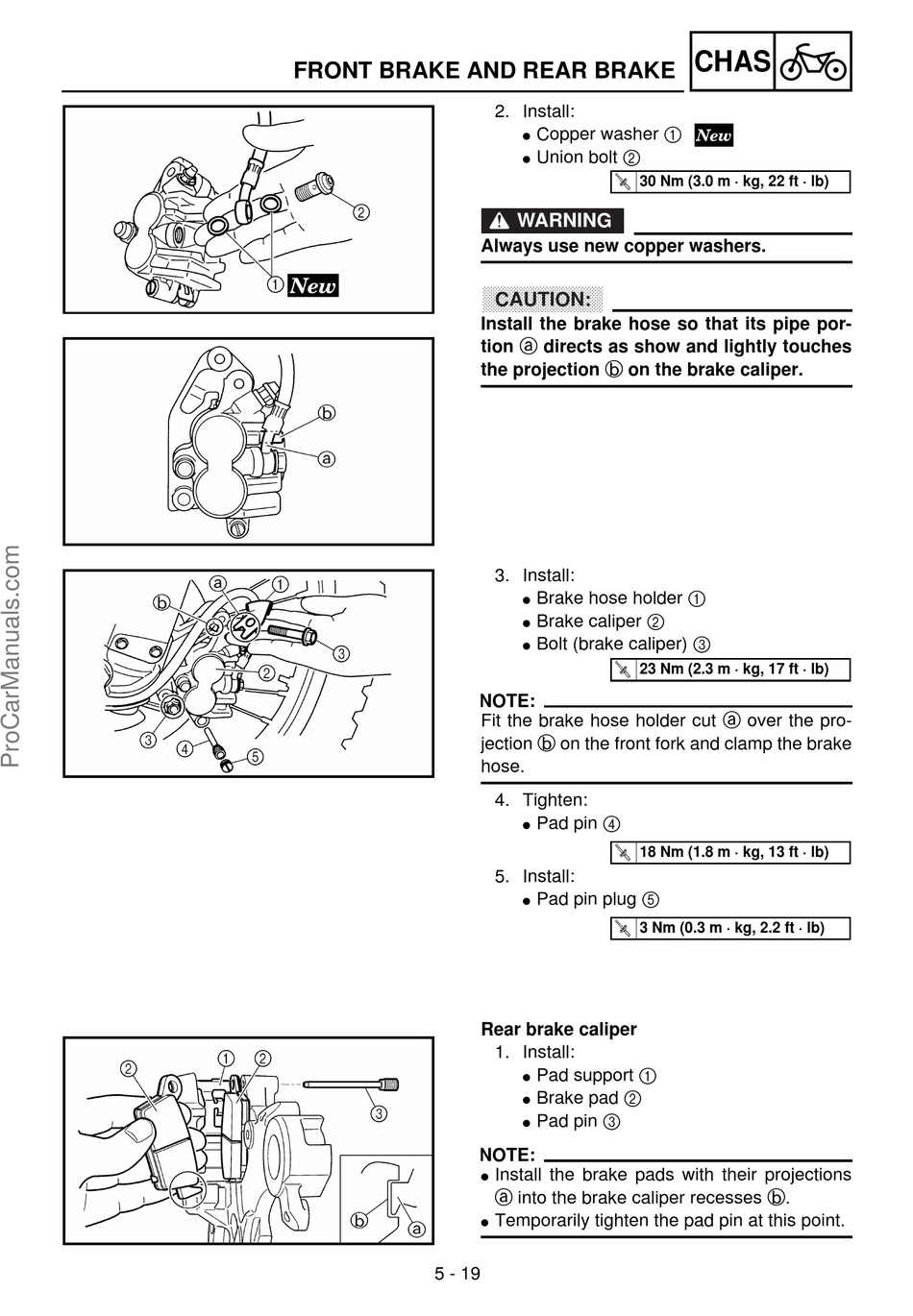

FRONT BRAKE AND REAR BRAKE
5 - 19
2. Install:
Copper washer 1
Union bolt 2
30 Nm (3.0 m · kg, 22 ft · lb)
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion a directs as show and lightly touches
the projection b on the brake caliper.
3. Install:
Brake hose holder 1
Brake caliper 2
Bolt (brake caliper) 3
23 Nm (2.3 m · kg, 17 ft · lb)
NOTE:
Fit the brake hose holder cut a over the pro-
jection b on the front fork and clamp the brake
hose.
4. Tighten:
Pad pin 4
18 Nm (1.8 m · kg, 13 ft · lb)
5. Install:
Pad pin plug 5
3 Nm (0.3 m · kg, 2.2 ft · lb)
Rear brake caliper
1. Install:
Pad support 1
Brake pad 2
Pad pin 3
NOTE:
Install the brake pads with their projections
a into the brake caliper recesses b.
Temporarily tighten the pad pin at this point.
CHAS
