1 Coolant reservoir breather hose
2 Radiator breather hose
3 Ignition coil
4 CDI unit
5 CDI unit band
6 Throttle cable (return)
7 Throttle cable (pull)
8 Cable guide
9 CDI unit lead
0 Spark plug lead
A CDI unit stay

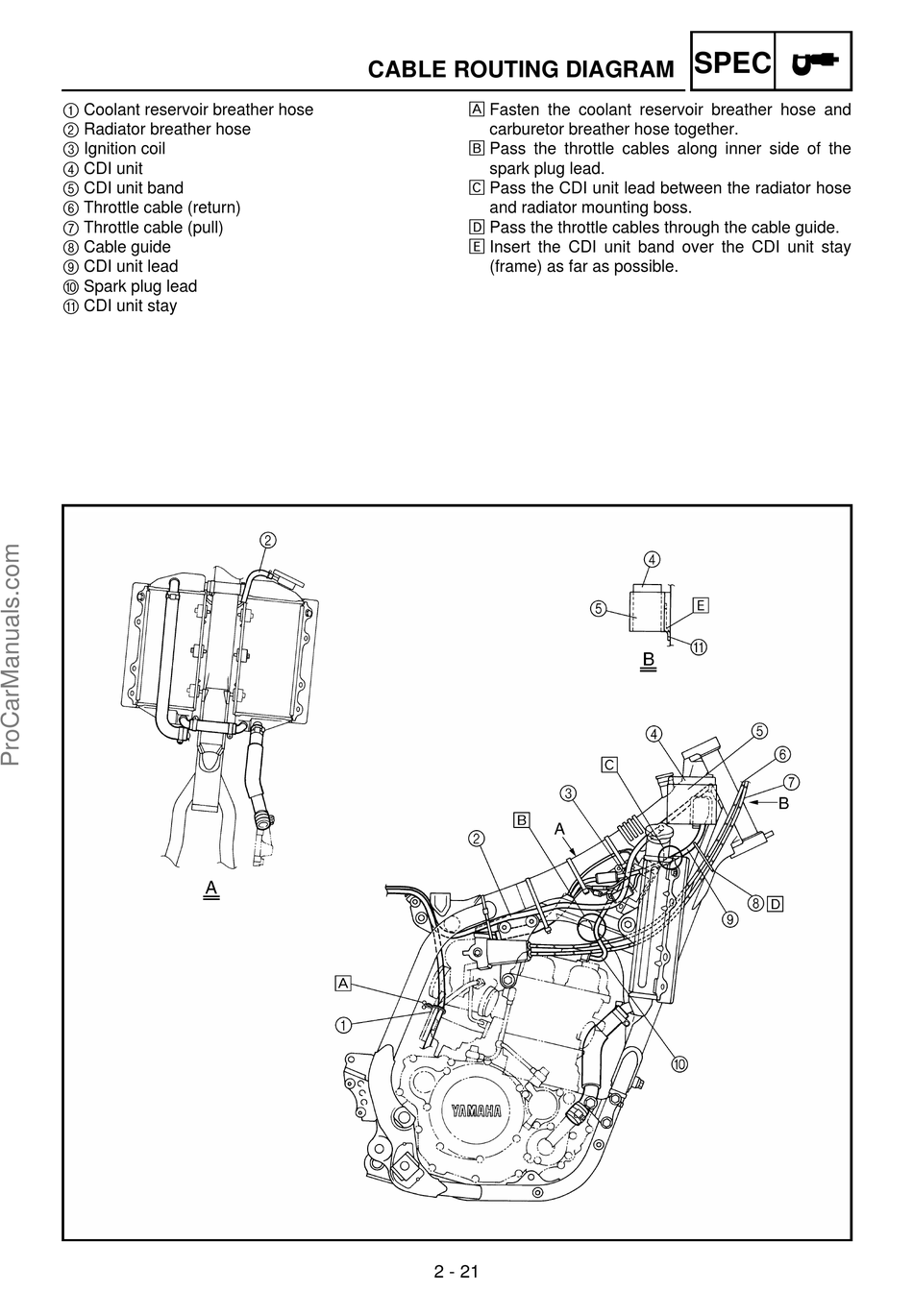

CABLE ROUTING DIAGRAM
Å Fasten the coolant reservoir breather hose and
carburetor breather hose together.
ı Pass the throttle cables along inner side of the
spark plug lead.
Ç Pass the CDI unit lead between the radiator hose
and radiator mounting boss.
Î Pass the throttle cables through the cable guide.
‰ Insert the CDI unit band over the CDI unit stay
(frame) as far as possible.
2 - 21
