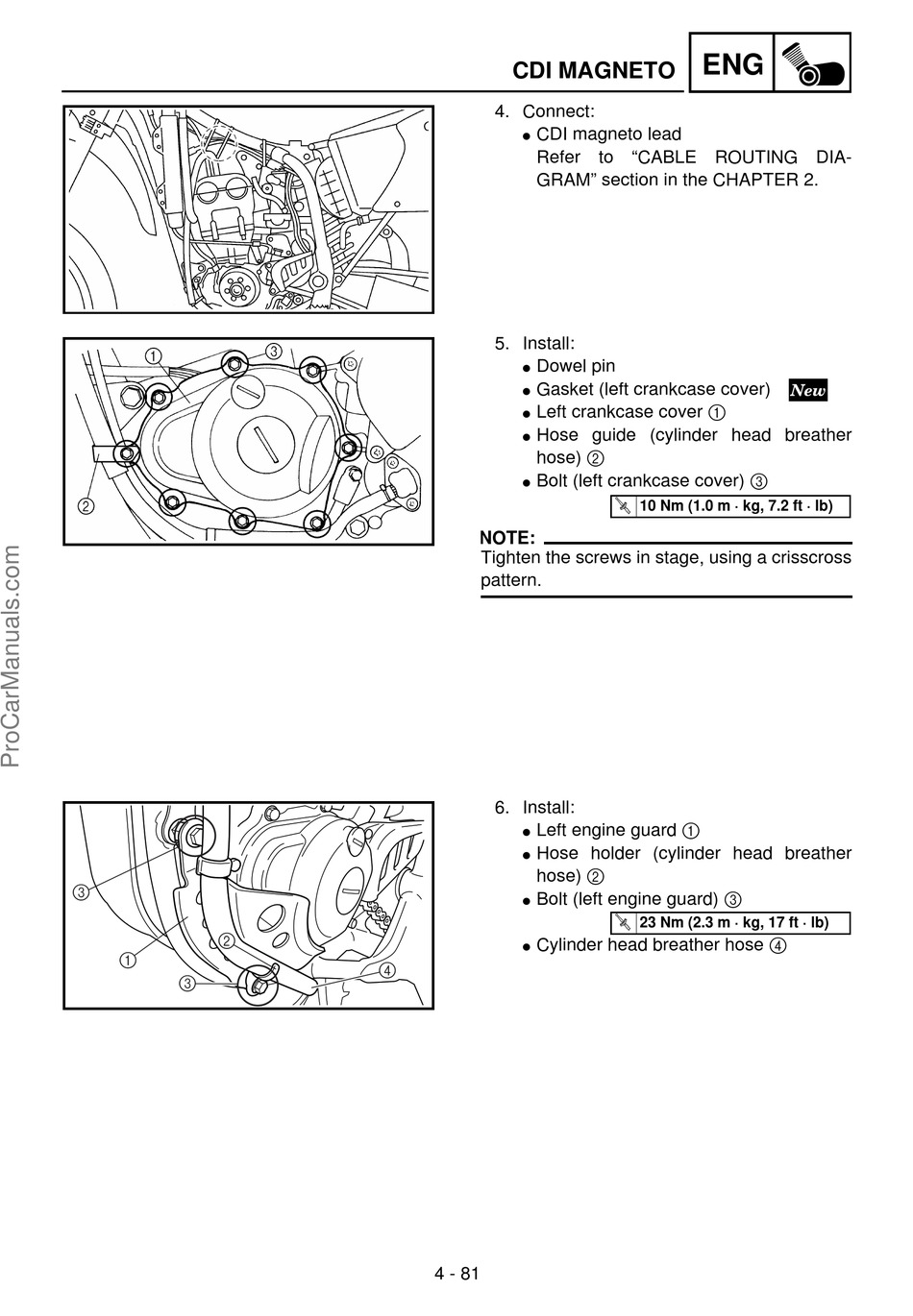

CDI MAGNETO
4. Connect:
CDI magneto lead
Refer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER 2.
5. Install:
Dowel pin
Gasket (left crankcase cover)
Left crankcase cover 1
Hose guide (cylinder head breather
hose) 2
Bolt (left crankcase cover) 3
NOTE:
Tighten the screws in stage, using a crisscross
pattern.
6. Install:
Left engine guard 1
Hose holder (cylinder head breather
hose) 2
Bolt (left engine guard) 3
Cylinder head breather hose 4
4
4 - 81
ENG
10 Nm (1.0 m · kg, 7.2 ft · lb)
23 Nm (2.3 m · kg, 17 ft · lb)
