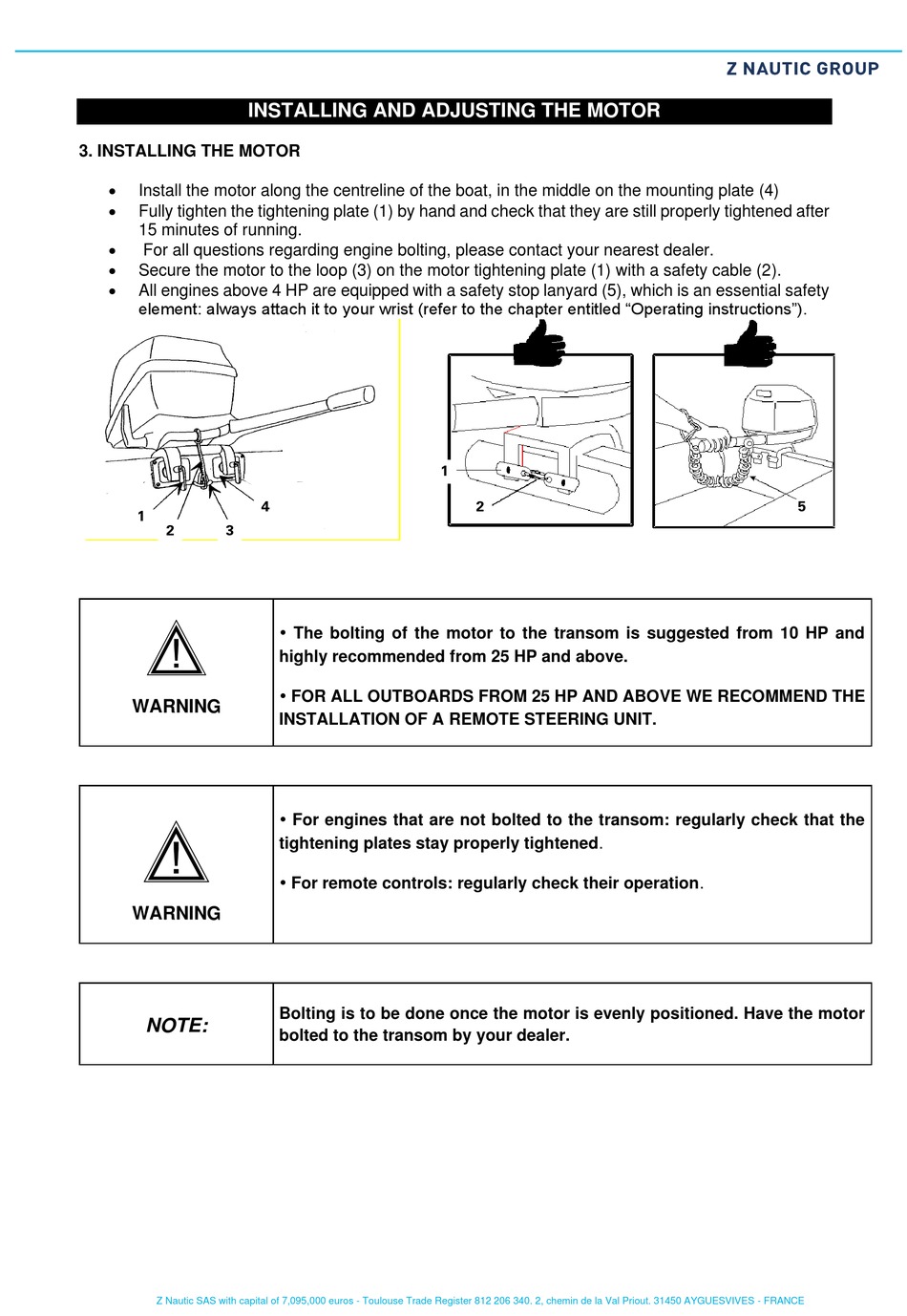

INSTALLING AND ADJUSTING THE MOTOR

3. INSTALLING THE MOTOR

•
Install the motor along the centreline of the boat, in the middle on the mounting plate (4)
•
Fully tighten the tightening plate (1) by hand and check that they are still properly tightened after
15 minutes of running.
•
For all questions regarding engine bolting, please contact your nearest dealer.
•
Secure the motor to the loop (3) on the motor tightening plate (1) with a safety cable (2).
•
All engines above 4 HP are equipped with a safety stop lanyard (5), which is an essential safety
element: always attach it to your wrist (refer to the chapter entitled "Operating instructions").
1
2 3
WARNING
WARNING
NOTE:
Z Nautic SAS with capital of 7,095,000 euros - Toulouse Trade Register 812 206 340. 2, chemin de la Val Priout. 31450 AYGUESVIVES - FRANCE
4
 The bolting of the motor to the transom is suggested from 10 HP and
highly recommended from 25 HP and above.
 FOR ALL OUTBOARDS FROM 25 HP AND ABOVE WE RECOMMEND THE
INSTALLATION OF A REMOTE STEERING UNIT.
 For engines that are not bolted to the transom: regularly check that the
tightening plates stay properly tightened.
 For remote controls: regularly check their operation.
Bolting is to be done once the motor is evenly positioned. Have the motor
bolted to the transom by your dealer.
1
2 5
