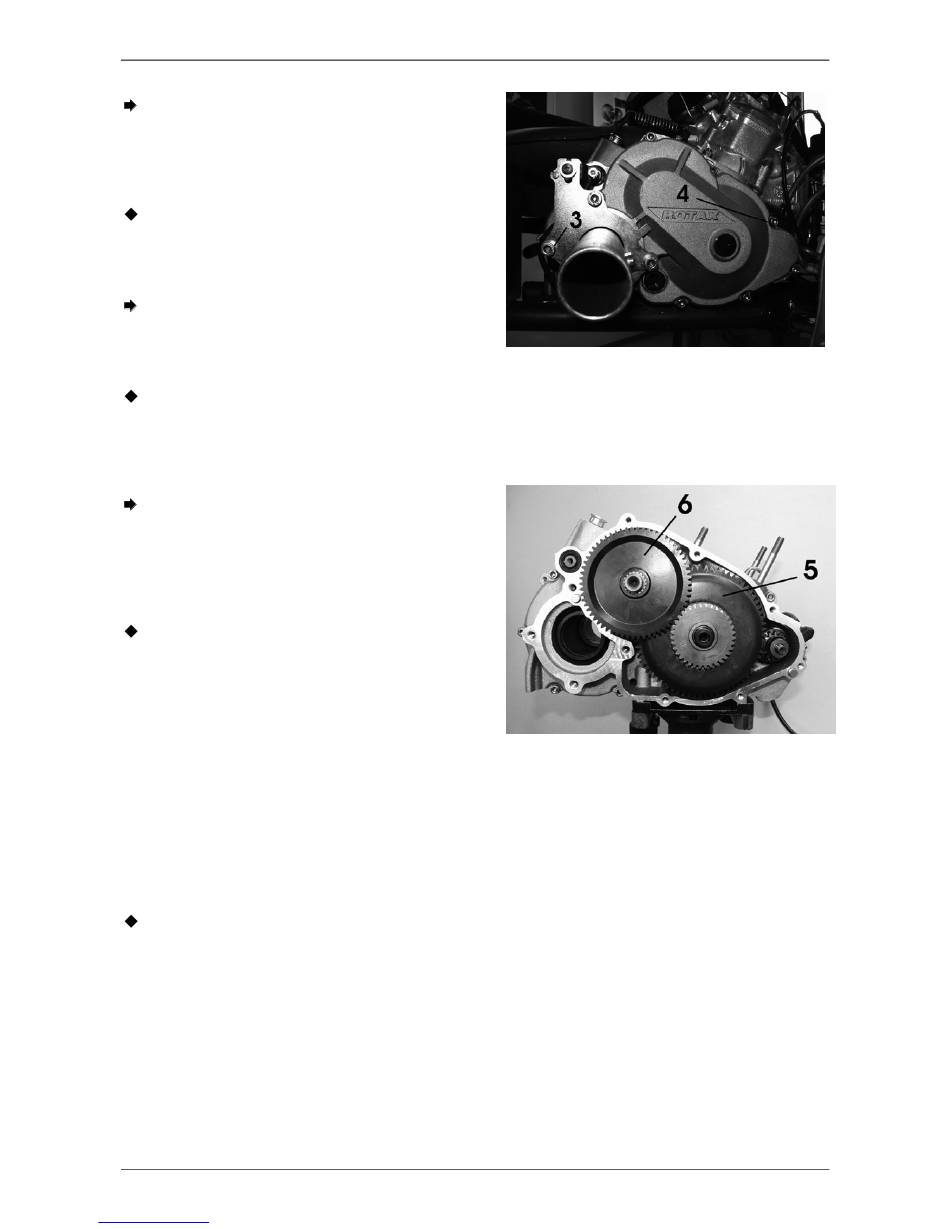

Remove the support plate from the axle by
unscrewing 4 Allen screws M8x70 (pos.
3).
Note:
Remove the gear cover by unscrewing 6
Allen screws M6x30 (pos. 4).
Note:
Remove the primary drive gear (pos. 5)
(screwed to clutch drum) and secondary
gear (pos. 6) and fit the gear pair of your
choice.
Note:
At re-assembly proceed in reverse sequence. Tighten the screws to the following torque settings:
M6: 10 Nm (88 lbf. in.)
M8: 22 Nm (195 lbf. in.)
Note:
Seite/page 90/132
Downloaded from www.Manualslib.com
By turning the supportplate 90 °
anticlockwise it is not nescessary
to disconnect the electric shifting
assistant cable.
If the gear cover is difficult to remove, it can be levered off at the separating lugs.
To allow fast exchange of gear
ratios we recommend you to carry
in stock various pre-assembled
clutch drums with the respective
primary drive gears.
To allow easier matching of primary and secondary gears please note: The sum of
the last digits of the teeth number must always be 7 or 17 (35 / 62).
