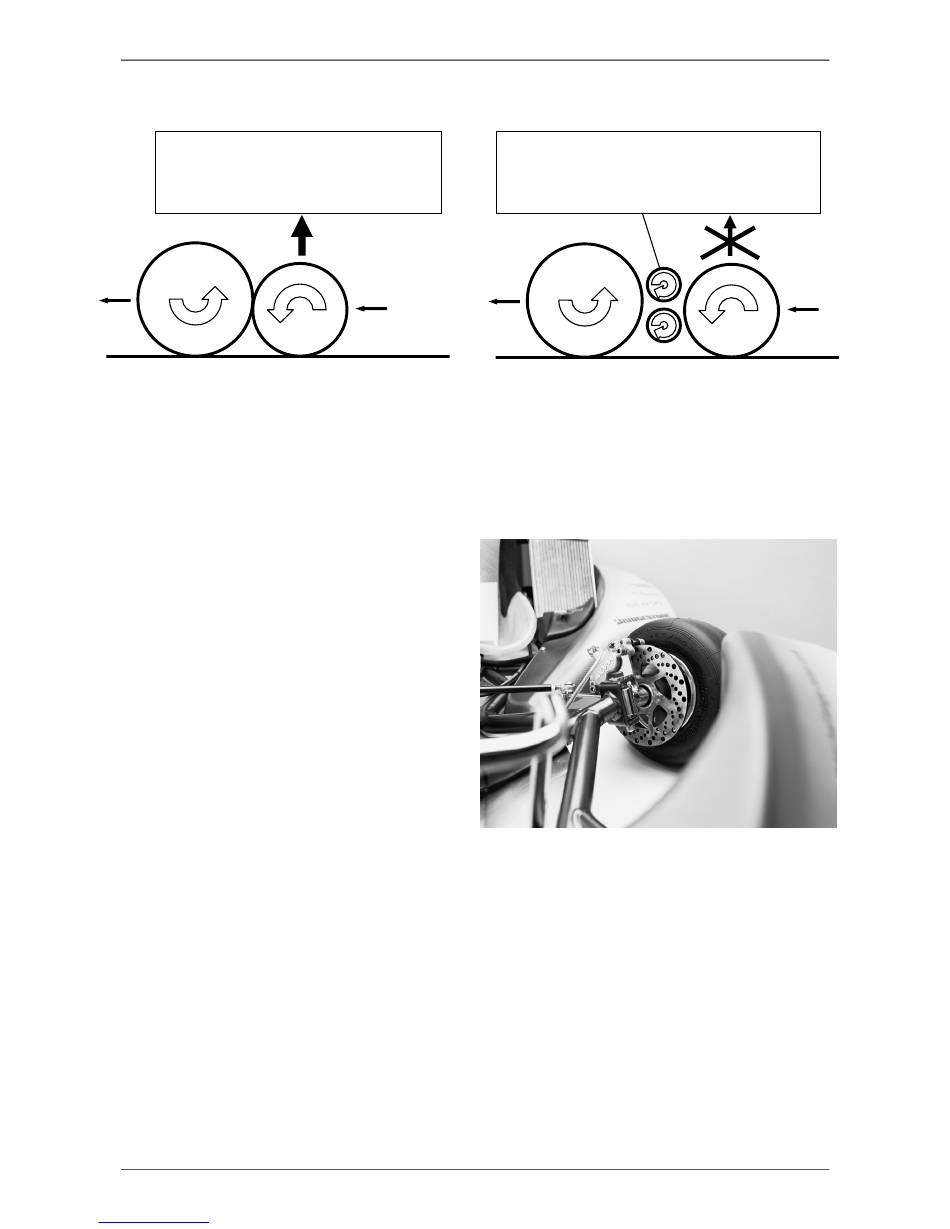

Situation with unprotected rear wheels
IN CASE OF CONTACT BETWEEN
THE TWO WHEELS THE FRONT
REAR WHEEL

1.1.6. Brake system

The brake system was developed especially for this vehicle and is distinguished by extraordinary
brake performance.
The brake system consists of 4 brake discs, 4 brake calipers (2 on front axle, 2 on rear axle) and 2
separate brake circuits, for safety reasons.
Further the brake force can be manually
adjusted between the front and rear axle.
This brake system, inspite of the smaller brake
discs, has sufficient brake force with the
advantage that when driving off the circuit (over
the kerbs etc.) are less prone to damage.
1.1.7. Chassis
Tube frame of 32 mm tube diameter, especially developed for the engine 125 MAX DD2 with direct
drive.
Special features:
•
Neutral driving behaviour in different driving conditions
•
Various adjustment possibilities
•
Only suitable for 40 mm rear axle.
