Forming
Components for the
forming circuit
(suggestion)
DANGER
Procedure
10-2
Downloaded from www.Manualslib.com
C / L+
D / L-
DC link
PE3
Fig. 10-1
♦ 1 fuse-switch triple 400 V / 10 A
♦ 3 incandescent lamps 230 V / 100 W
♦ Various small parts e.g. lamp holders, 1.5 mm
The unit has hazardous voltage levels up to 5 minutes after it has been
powered down due to the DC link capacitors. The unit or the DC link
terminals must not be worked on until at least after this delay time.
♦ Before you form the unit, all mains connections must be
disconnected.
♦ The converter incoming supply must be switched off.
♦ The unit is not permitted to receive a switch-on command (e.g. via
the keyboard of the PMU or the terminal strip).

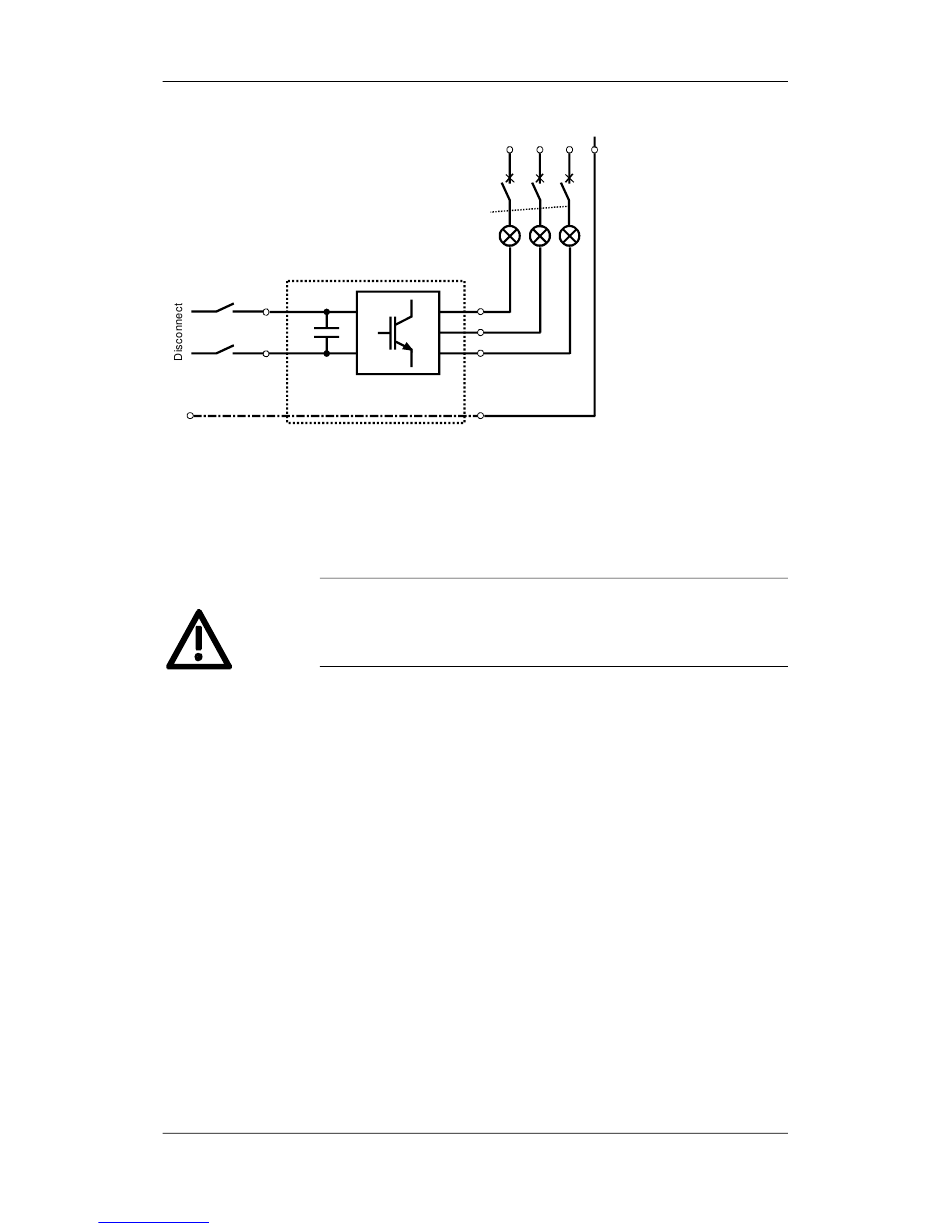

♦ Connect the required components in accordance with the circuit
example.
♦ Energize the forming circuit. The duration of forming is approx. 1
hour.
manuals search engine
3AC 400 V
L1 L2
2
1.5 mm
Motor
connection
U2/T1
V2/T2
W2/T3
Inverter
PE2
Forming circuit
Operating Instructions
06.2006
L3 PE
2
cable, etc.
