X533 - Safe stop
option
Siemens AG
SIMOVERT MASTERDRIVES
Downloaded from www.Manualslib.com
The safe stop option comprises the safety relay and the connecting
terminals for relay triggering and a checkback contact.
Terminal
1
2
3
4
Connectable cross-section: 1.5 mm² (AWG 16)
Terminal 4 is at the front when installed.
Table 7-8
X533

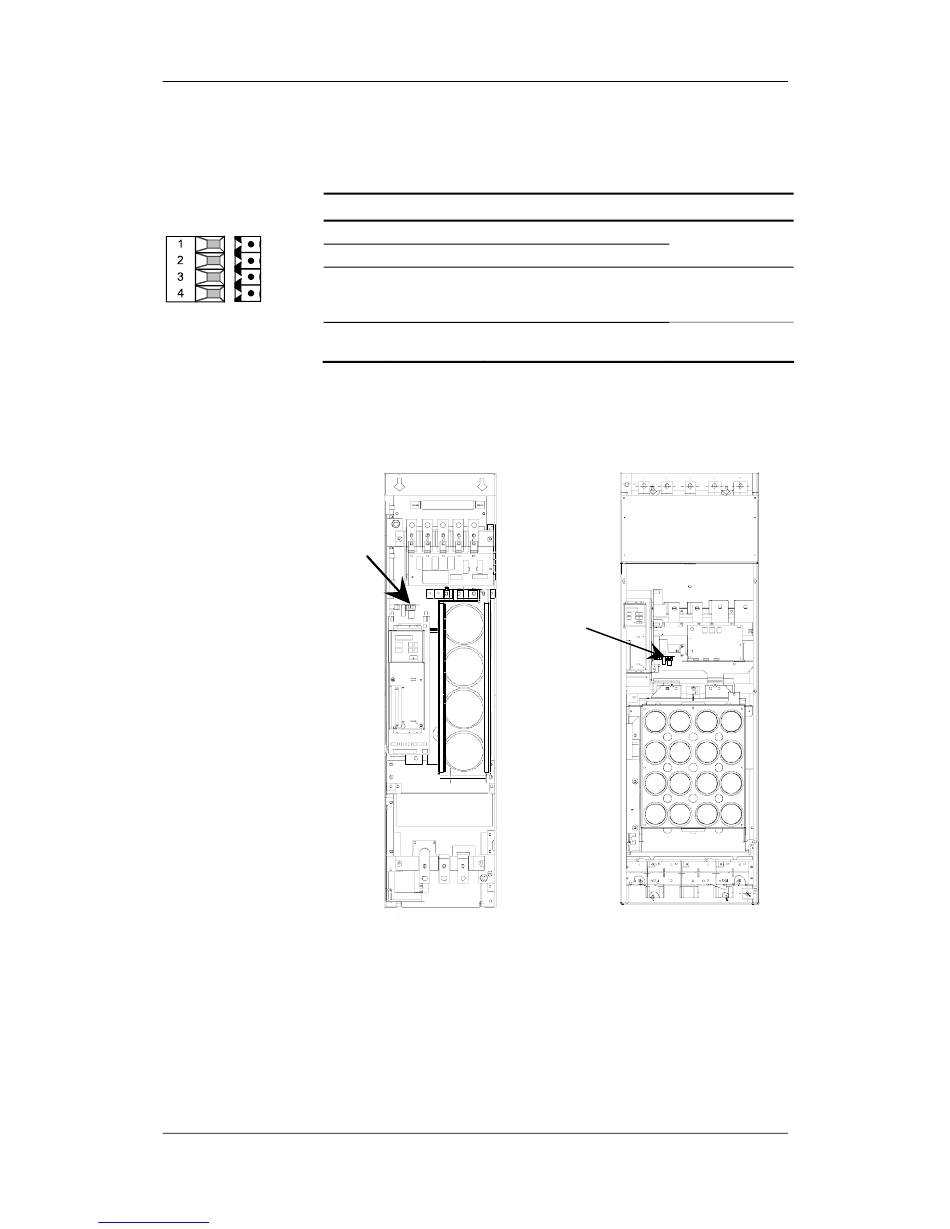

Fig. 7-6 Types E and F
6SE7087-6KN50
Operating Instructions
manuals search engine
Designation Meaning
Contact 1 Checkback "safe stop"
Contact 2 Checkback "safe stop"
Control input Rated resistance of field coil
≥ 823 Ω ± 10 % at 20 °C
"safe stop"
P24 DC Supply voltage "safe stop"
Terminal assignment for the "safe stop" option
X533
Fig. 7-7 Type G
Connecting-up
Range
DC 20 V – 30 V
1 A
DC 20 V – 30 V
max. operating
frequency: 6/min
DC 24 V /
30 mA
