Parameterization
P368 =
0, 1, 2, 3
Function diagram
modules
8-30
Downloaded from www.Manualslib.com
Select type of control
P367 = ?
0: V/f open-loop control
2: Torque control
3: Speed control
Select setpoint and command source
P368 = ?
0: PMU (not for Compact PLUS)
1: Analog input and terminal strip
4 7, 8 6
2: Fixed setpoints and terminal strip
3: MOP and terminal strip
4: USS
5: not used
6: PROFIBUS (CBP2)
7: OP1S and fixed setpoints via SCom1
8: OP1S and MOP via SCom1
Input the USS address
P700.1 = ?
Input the PROFIBUS address
P918.1 = ?
Start of quick parameterization
P370 = 1
0: No parameter change
1: Parameter change according to chosen
Note:
After start-up an automatic factory setting of P366 = 0
takes place, followed by the associated parameterization.
P060 = 0
Return to user menu

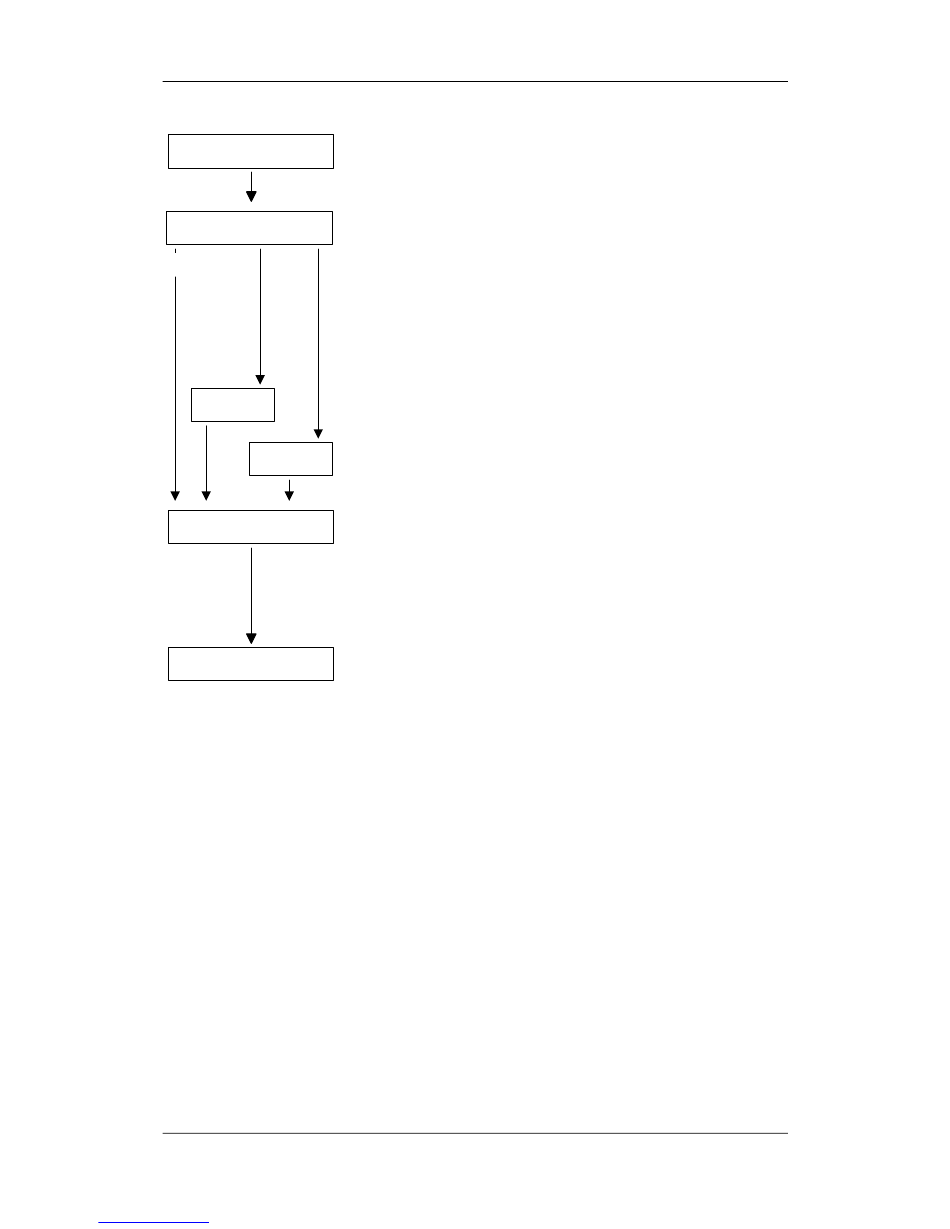

Fig. 8-18
Function diagram modules (function diagrams) are shown after the flow
chart for parameter modules stored in the unit software. On the first few
pages are the:
♦ setpoint and command sources, on the following pages are the
♦ analog outputs and the display parameters and the
♦ open-loop and closed-loop control types.
It is therefore possible to put together the function diagrams to exactly
suit the selected combination of setpoint/command source and
open/closed-loop control type. This will give you an overview of the
functionality parameterized in the units and of the necessary
assignment of the terminals.
The function parameters and visualization parameters specified in the
function diagrams are automatically adopted in the user menu and can
be visualized or changed there.
The parameter numbers of the user menu are entered in P360.
manuals search engine
combination of parameter modules
Sequence for parameterizing with parameter modules
Operating Instructions
06.2006
6SE7087-6KN50 Siemens AG
SIMOVERT MASTERDRIVES
