Installation in Conformance with EMC Regulations
6-4
Downloaded from www.Manualslib.com
Cabinet 1
Rule
13
Control
Rule
9, 10
Fig. 6-1
Connect at both ends
to the cabinet housing
through the largest
possible surface area!
Fig. 6-2
manuals search engine
Cabinet 2
Netz
~
Rule
=
17
*)
Rule
4, 5, 7
Fig. 3.5.6
Fig 3.5.4
Z
Rule 16
Rule 8

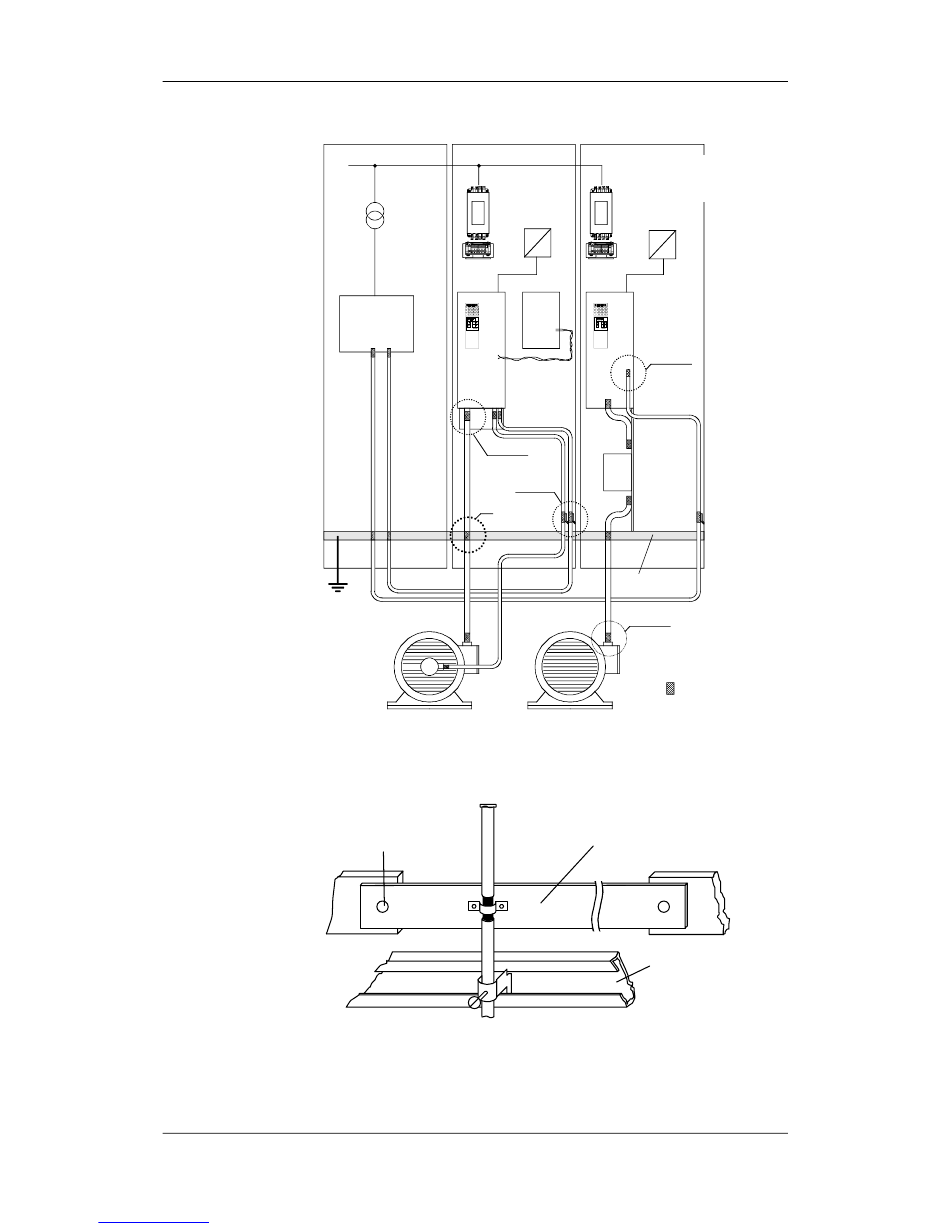

Examples for applying the basic EMC rules
Shield rail
Connecting the motor cable shield where the cable enters the cabinet
Operating Instructions
06.2006
Cabinet 3
*) Keep the radio interference
suppression filters away from
SIMOVERT MASTERDRIVES
air discharge duct, e.g. by
Netz
mounting at another level
Rule
14
~
=
*) Rule 12
Fig. 3.5.3
Rule
19
Rule 2
Grounding rail
Fig. 3.5.2
Z
Shield connection
Cable retaining bar
