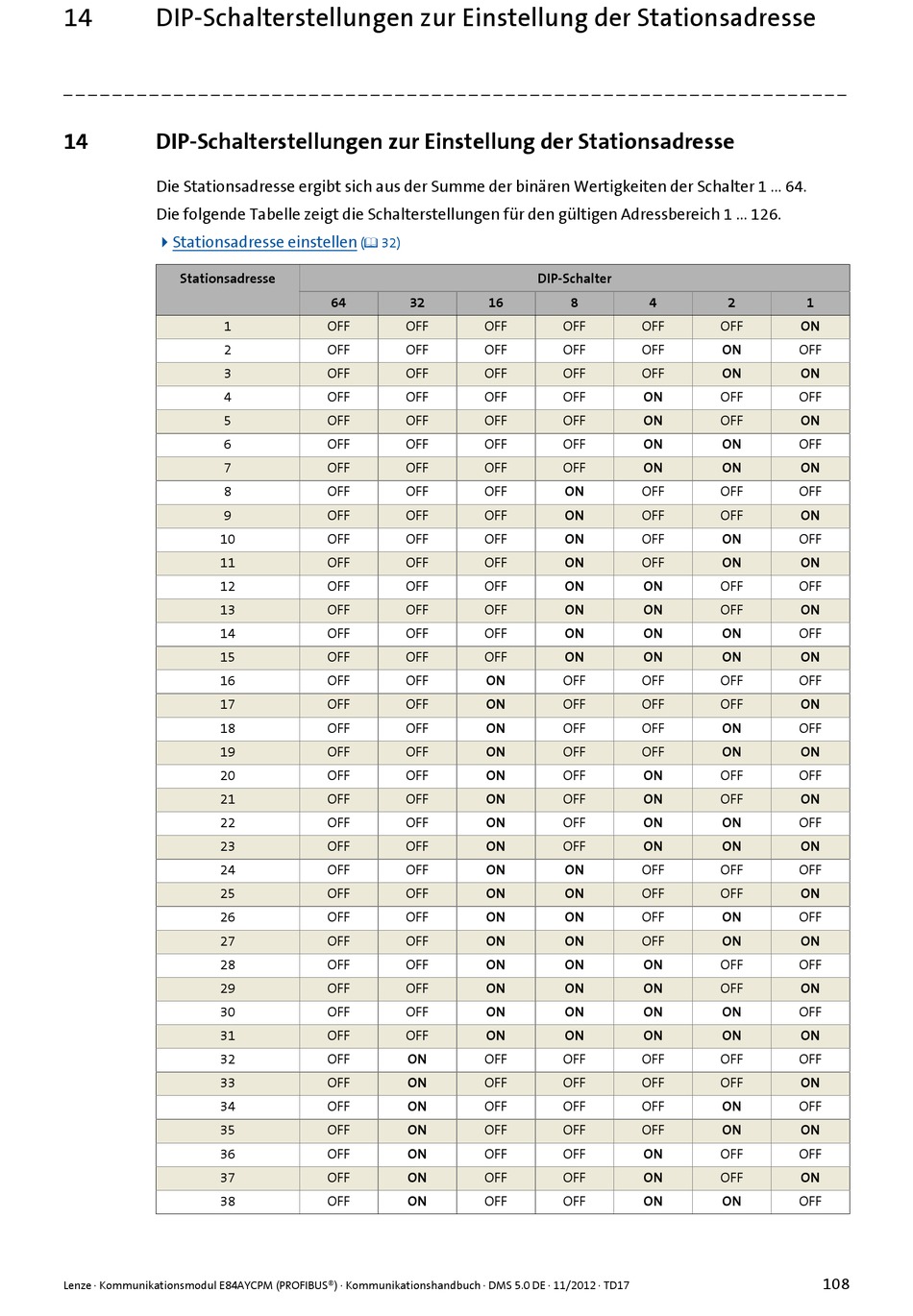

DIP-Schalterstellungen zur Einstellung der Stationsadresse

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
14 DIP-Schalterstellungen zur Einstellung der Stationsadresse
Die Stationsadresse ergibt sich aus der Summe der binären Wertigkeiten der Schalter 1 ... 64.
Die folgende Tabelle zeigt die Schalterstellungen für den gültigen Adressbereich 1 ... 126.
Stationsadresse einstellen
Stationsadresse
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Lenze · Kommunikationsmodul E84AYCPM (PROFIBUS®) · Kommunikationshandbuch · DMS 5.0 DE · 11/2012 · TD17
( 32)
64 32 16
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF OFF ON
OFF ON OFF
OFF ON OFF
OFF ON OFF
OFF ON OFF
OFF ON OFF
OFF ON OFF
OFF ON OFF
DIP-Schalter
8 4
OFF OFF
OFF OFF
OFF OFF
OFF ON
OFF ON
OFF ON
OFF ON
ON OFF
ON OFF
ON OFF
ON OFF
ON ON
ON ON
ON ON
ON ON
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF ON
OFF ON
OFF ON
OFF ON
ON OFF
ON OFF
ON OFF
ON OFF
ON ON
ON ON
ON ON
ON ON
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF ON
OFF ON
OFF ON
2 1
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
108
