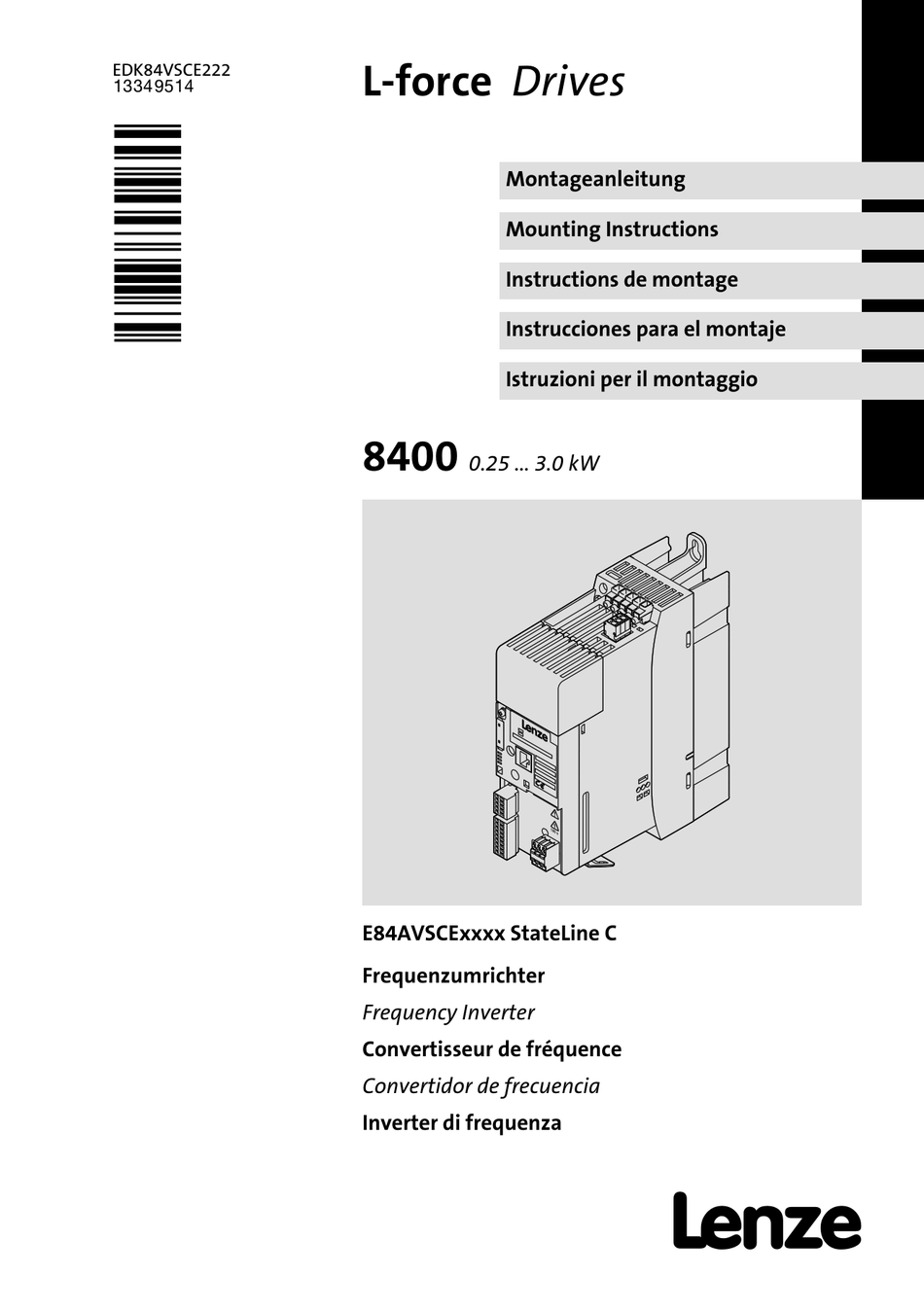

EDK84VSCE222
.Cô/
L−force Drives
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
8400
0.25 ... 3.0 kW
E84AVSCExxxx StateLine C
Frequenzumrichter
Frequency Inverter
Convertisseur de fréquence
Convertidor de frecuencia
Inverter di frequenza
l
Werbung
Verwandte Anleitungen für Lenze StateLine C EDK84VSCE222
Inhaltszusammenfassung für Lenze StateLine C EDK84VSCE222
- Seite 1 EDK84VSCE222 L−force Drives .Cô/ Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio 8400 0.25 ... 3.0 kW E84AVSCExxxx StateLine C Frequenzumrichter Frequency Inverter Convertisseur de fréquence Convertidor de frecuencia Inverter di frequenza...
- Seite 2 Warnings! Operation of this equipment requires detailed installation and operation instructions provided in the Hardware manual intended for use with this product. This information is provided on the CD−ROM included in the container this device was packaged in. It should be retained with this device at all times. A hard copy of this information may be ordered by phone or e−mail, printed on the back of this document.
- Seite 3 Danger ! Tension électrique dangereuse Les raccordements de puissance X100 et X105 sont susceptibles de véhiculer une ƒ tension dangereuse jusqu’à 3 minutes après une coupure réseau. Risques encourus : Mort ou blessures graves en cas de contact avec les raccordements de puissance ƒ...
- Seite 4 0.25 … 3.0 kW ) 0.25 … 3.0 kW 8400SLC020 EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 5 0.25 … 3.0 kW 8400SLC070 EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 6 0.25 … 3.0 kW [mm] [mm] 0.25 … 3.0 kW 8400GG105m [kW] [mm] 0.25 E84AVSCE2512xXx 0.37 E84AVSCE3712xXx 0.37 E84AVSCE3714xXx E84AVSCE551xxXx 0.55 E84AVSCE751xxXx 0.75 E84AVSCE112xxXx E84AVSCE152xxXx E84AVSCE222xxXx E84AVSCE3024xXS E84AVSCE2512xBx 0.25 E84AVSCE3712xBx 0.37 E84AVSCE3714xBx 0.37 E84AVSCE551xxBx 0.55 0.75 E84AVSCE751xxBx E84AVSCE112xxBx E84AVSCE152xxBx E84AVSCE222xxBx E84AVSCE3024xBS EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 7 0.25 … 3.0 kW [mm] 8400GG105k [kW] [mm] [kg] E84AVSCE2512xXx 0.25 > 95 > 95 E84AVSCE3712xXx 0.37 E84AVSCE3714xXx 0.37 E84AVSCE551xxXx 0.55 > 95 > 95 E84AVSCE751xxXx 0.75 E84AVSCE112xxXx E84AVSCE152xxXx > 95 > 95 E84AVSCE222xxXx E84AVSCE3024xXS E84AVSCE2512xBx 0.25 > 95 > 95 E84AVSCE3712xBx 0.37 E84AVSCE3714xBx...
- Seite 8 0.25 … 2.2 kW X100 (230 V) X100 (230 V) 0.25 … 2.2 kW X100 − TN, TT 1/N/PE AC 230 V N L1 X100 8400GG001 8400GG003 X100 − IT 1/N/PE AC 230 V N L1 X100 8400GG002 8400GG004 L1, N EN 60204 [mm] [Nm]...
- Seite 9 0.37 … 3.0 kW X100 (400 V) X100 (400 V) 0.37 … 3.0 kW X100 − TN, TT 3/N/PE AC 400 V / 500 V F1 … F3 +UG -UG X100 8400GG005 8400GG007 X100 − IT 3/N/PE AC 400 V / 500 V F1 …...
- Seite 10 0.25 … 3.0 kW X101 X101 0.25 … 3.0 kW X101 X101 8400GG009 8400GG010 COM, NC, NO [mm] [AWG] E84AVSCE2512 0.2 ... 1.5 E84AVSCE3712 24 ... 16 E84AVSCE3714 0.2 ... 1.5 E84AVSCE551x 24 ... 16 E84AVSCE751x E84AVSCE112x E84AVSCE152x 0.2 ... 1.5 E84AVSCE222x 24 ...
- Seite 11 0.25 … 3.0 kW X105, X106 X105, X106 0.25 … 3.0 kW 8400GG011 X105 X106 84MOTL001_a 84MOTL001_b U, V, W T1, T2 [mm] [Nm] [mm] [Nm] [mm] [AWG] [lb−in] [AWG] [lb−in] [AWG] E84AVSCE2512 1 ... 2.5 1 ... 6 0.2 ... 1.5 E84AVSCE3712 18 ...
- Seite 12 0.25 … 3.0 kW X105, X106 X105 − TN, TT " X105 J> 8400GG012 8400GG013 X105 − IT " X105 J> 8400GG014 8400GG013 X106 " X106 T1 T2 J> 8400GG016 8400GG017 EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 13 E84A...xxBx E84A...xxBx 8400SLC079 [mm] [AWG] 0.2 ... 1.5 24 ... 16 84MOTL001_g DC 24 V (+19.2... +28.8 V) 8400SLC071 8400HLC045 EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 14 StateLine X1, X3, X4 X1, X3, X4 StateLine 8400GG018 84MOTL001_e 84MOTL001_d 84MOTL001_f min. max. min. max. [mm] [mm] [AWG] [mm] [mm] [AWG] [AWG] 0.2 ... 1.5 0.2 ... 1.5 0.2 ... 1.5 24 ... 16 24 ... 16 24 ... 16 d c b a 64 32 16 8 4 2 1 Baud CAN Adress...
- Seite 15 StateLine X3, X4 X3, X4 +10 V / 10 mA O1U GA A1I A1U AR " 0 ...10 V 2 mA 1k ... 10k 8400SLC042 8400SLC043 GND-IO GND-IO 24 V int. DC 24 V (+19.2... +28.8 V) 8400SLC044 8400SLC045 EDK84VSCE222 DE/EN/FR/ES/IT 6.1...
- Seite 16 © 11/2011 Lenze Drives GmbH Service Lenze Service GmbH Postfach 10 13 52 Breslauer Straße 3 D−31763 Hameln D−32699 Extertal Germany Germany +49 (0)51 54 / 82−0 00 80 00 / 24 4 68 77 (24 h helpline) Ê Ê...
