Symbol Function
Switching point H1
Hysteresis h1
Switching point H2
Hysteresis h2
Blow-off time
Vacuum unit
Configuration of signal type
Configuration of output
Air economizer function (control)
Blow-off function
Display
PIN code
8

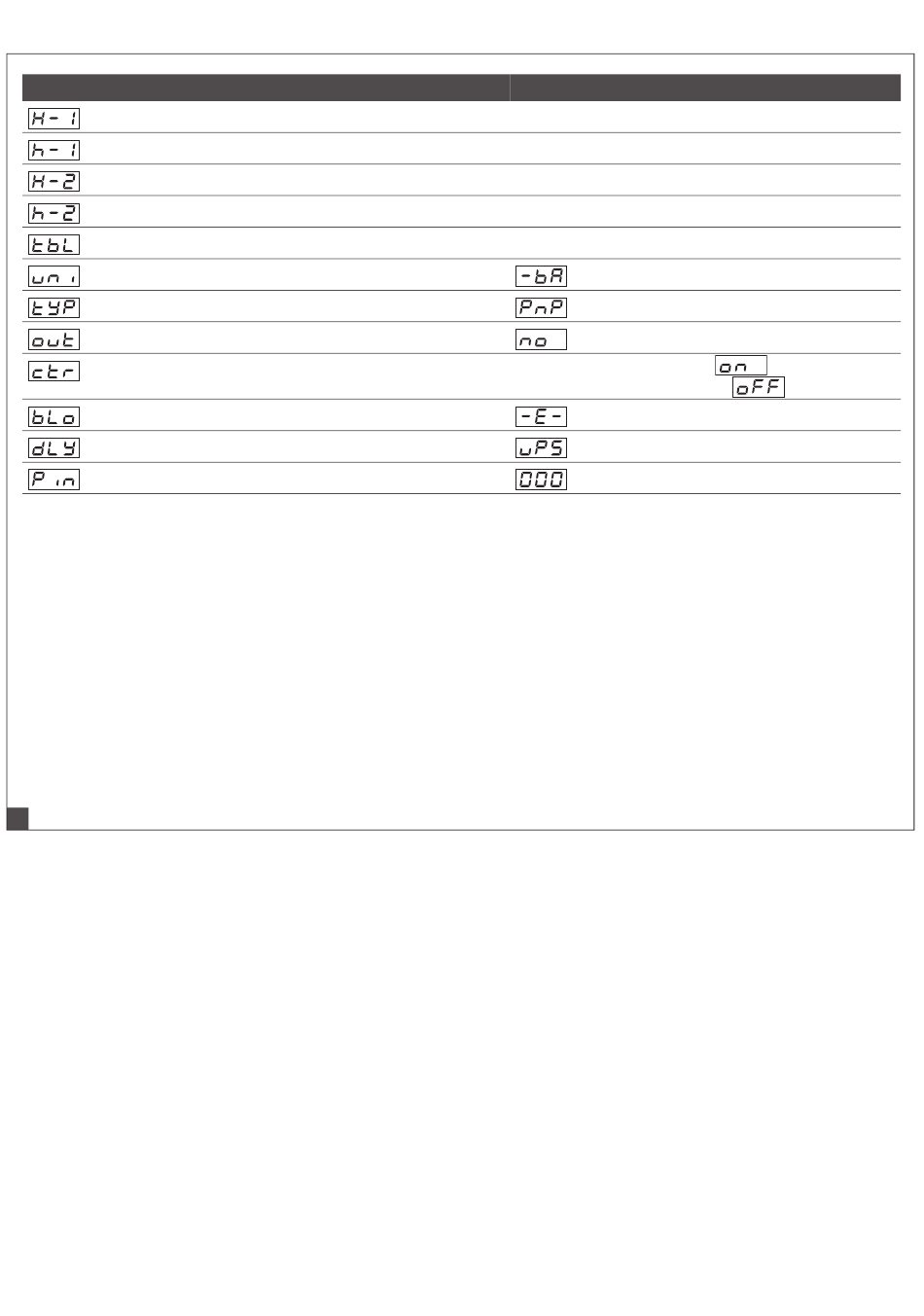

Overview of factory settings
Factory setting
750 mbar
150 mbar
550 mbar
10 mbar
0,20 s
Vacuum unit in mbar
PNP-switching
Normally open contact (normally open)
Ejector with air economizer function:
Ejector without air economizer function:
Externally controlled blow-off
Alignment of the not rotated display
