Symbol Function
Switching point H1
Hysteresis h1
Switching point H2
Hysteresis h2
Blow-off time
Zero-point adjustment
(calibrate)
Counter 1
Counter 2
Software version
Mat. no.
Internal index
Vacuum unit
Vacuum value in mbar
Vacuum value in kPa
Vacuum value in inHg
Configuration signal type
Signal type PNP
Signal NPN
Configuration signal output Menu for configuring the signal input
Normally open contact
(normally open)
Normally closed contact
(normally closed)
Air economizer function
(control)
Air economizer function on Switching on the air economizer function
Air economizer function off Switching off the air economizer function
Blow-off function
"External" blow-off
"Internal" blow-off
Display
Display on top
Display bottom
PIN code
"Clear all" (reset)
Menu locked
Menu unlocked
(unlock)
7

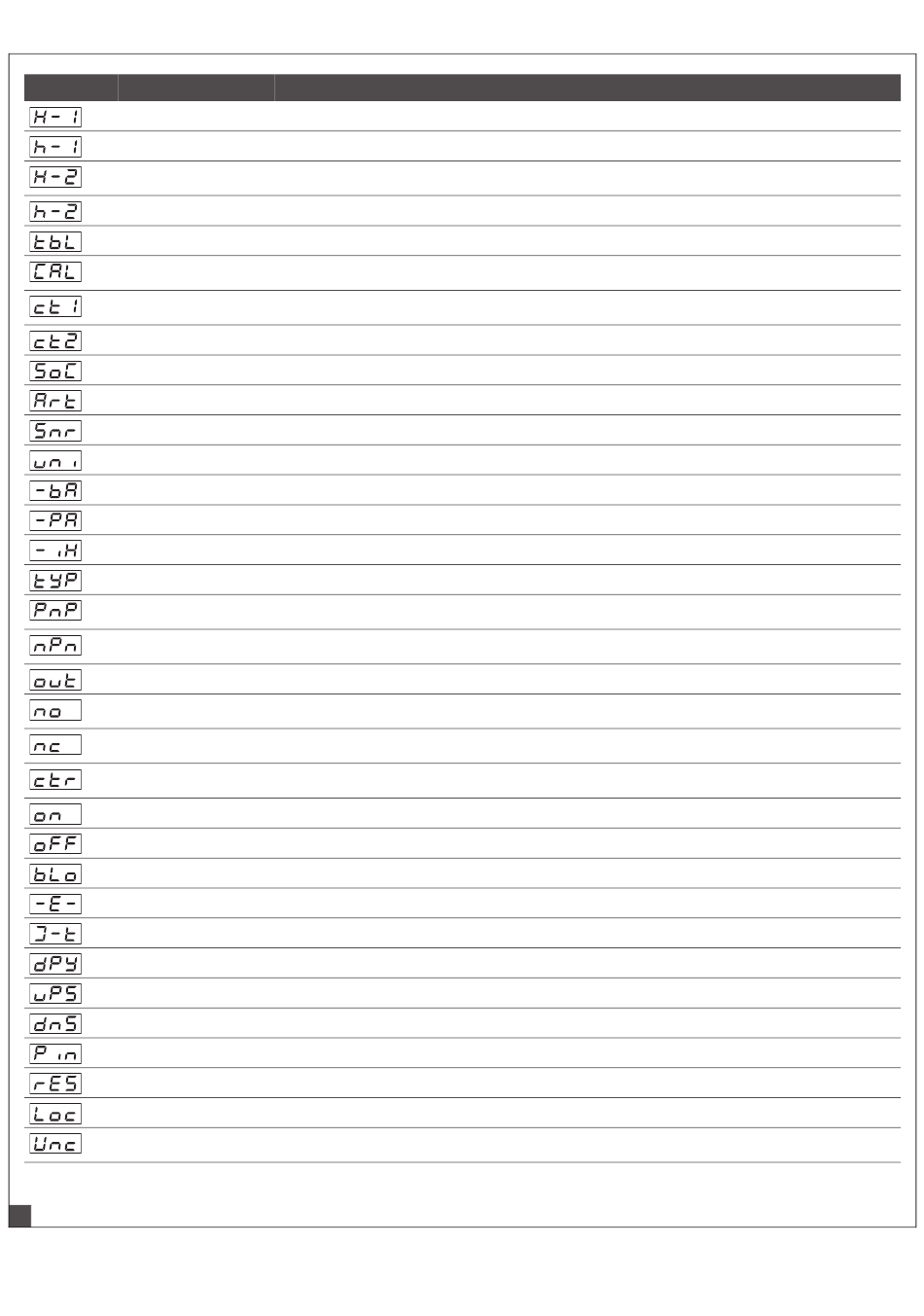

Display Symbols, Part 1
Comment
Switch-off value for air economizer function
Hysteresis of air economizer function
Switch-on value for "parts control" signal output
(with output NO configuration)
Hysteresis of "parts control" signal output
Blow-off setting for time-controlled blow-off
Setting the zero point – calibration
Counter for suction cycles
("Suction" signal input)
Counter for valve switching frequency
Displays the current software version
Displays the ejector's material number
Vacuum unit in which the measured value and settings values are displayed
The vacuum values are displayed in the unit mbar
The vacuum values are displayed in the unit kPa
The vacuum values are displayed in the unit inchHg
Menu for configuring the signal type (NPN/PNP)
All input and output signals are PNP-switching
(Input/output on = 24 V)
All input and output signals are NPN-switching
(Input/output on = 0 V)
Setting the signal output to normally open
Setting the signal output to normally closed
Setting for the air economizer function
Menu for configuring the blow-off function
Selection of externally controlled blow-off (external signal)
Selection of internally controlled blow-off (triggered internally, adjustable time)
Selection of the display menu for rotating the display
Alignment of the display without rotation (standard)
Alignment of the display rotated by 180°
Enter the PIN code to release the lock
All adjustable values are reset to the factory settings
After entering a wrong pin code, the keyboard and menus remain locked
The buttons and menus are unlocked
