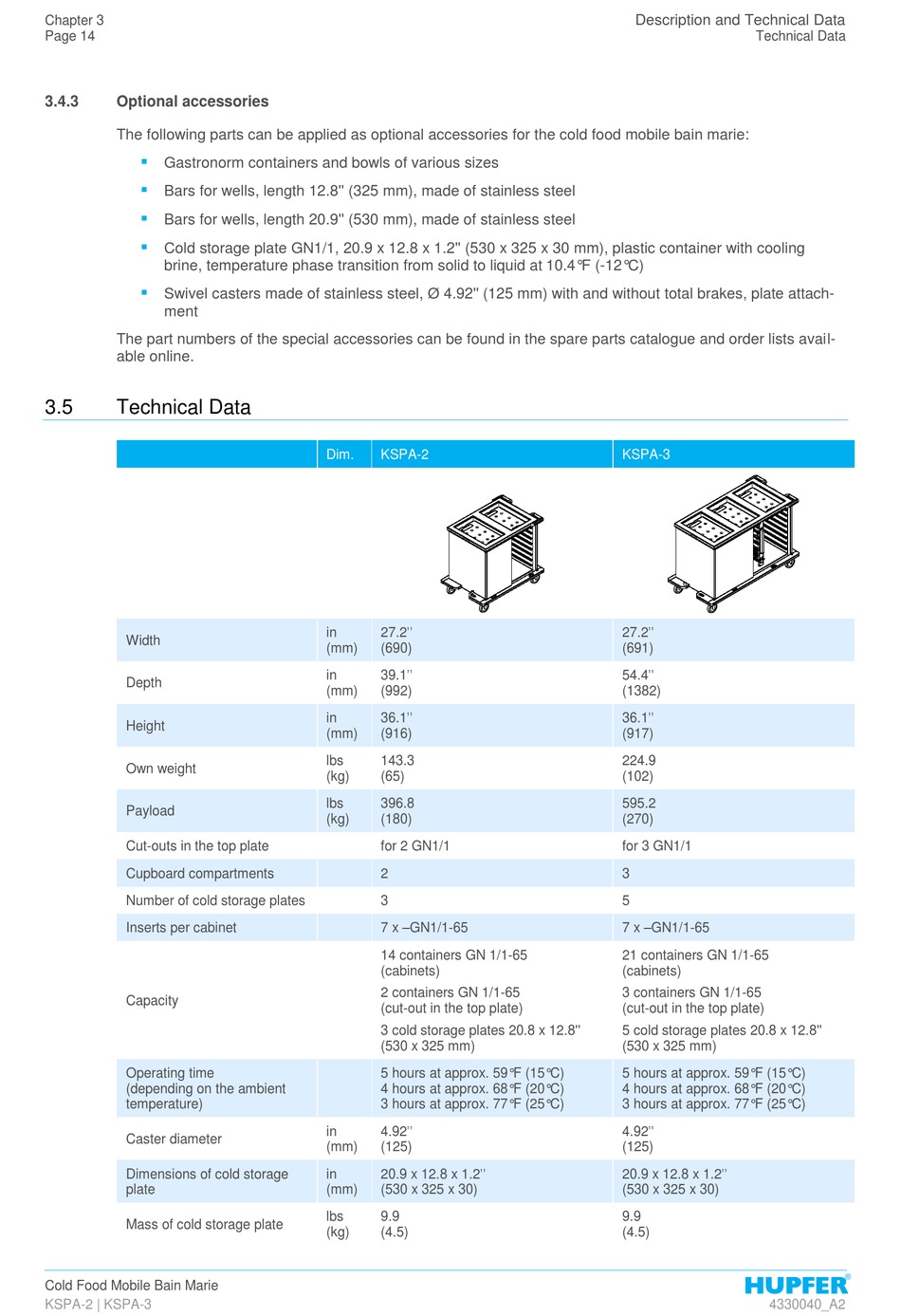

Optional Accessories; Technical Data - HUPFER KSPA-3 Betriebsanleitung

Chapter 3
Page 14
3.4.3

Optional accessories

The following parts can be applied as optional accessories for the cold food mobile bain marie:
§
Gastronorm containers and bowls of various sizes
§
Bars for wells, length 12.8'' (325 mm), made of stainless steel
§
Bars for wells, length 20.9'' (530 mm), made of stainless steel
§
Cold storage plate GN1/1, 20.9 x 12.8 x 1.2'' (530 x 325 x 30 mm), plastic container with cooling
brine, temperature phase transition from solid to liquid at 10.4°F (-12°C)
§
Swivel casters made of stainless steel, Ø 4.92'' (125 mm) with and without total brakes, plate attach-
ment
The part numbers of the special accessories can be found in the spare parts catalogue and order lists avail-
able online.
3.5

Technical Data

Width
Depth
Height
Own weight
Payload
Cut-outs in the top plate
Cupboard compartments
Number of cold storage plates
Inserts per cabinet
Capacity
Operating time
(depending on the ambient
temperature)
Caster diameter
Dimensions of cold storage
plate
Mass of cold storage plate
Cold Food Mobile Bain Marie
KSPA-2 | KSPA-3
Dim. KSPA-2
in 27.2''
(mm) (690)
in 39.1''
(mm) (992)
in 36.1''
(mm) (916)
lbs 143.3
(kg) (65)
lbs 396.8
(kg) (180)
for 2 GN1/1
2
3
7 x –GN1/1-65
14 containers GN 1/1-65
(cabinets)
2 containers GN 1/1-65
(cut-out in the top plate)
3 cold storage plates 20.8 x 12.8''
(530 x 325 mm)
5 hours at approx. 59°F (15°C)
4 hours at approx. 68°F (20°C)
3 hours at approx. 77°F (25°C)
in 4.92''
(mm) (125)
in 20.9 x 12.8 x 1.2''
(mm) (530 x 325 x 30)
lbs 9.9
(kg) (4.5)
Description and Technical Data
Technical Data
KSPA-3
27.2''
(691)
54.4''
(1382)
36.1''
(917)
224.9
(102)
595.2
(270)
for 3 GN1/1
3
5
7 x –GN1/1-65
21 containers GN 1/1-65
(cabinets)
3 containers GN 1/1-65
(cut-out in the top plate)
5 cold storage plates 20.8 x 12.8''
(530 x 325 mm)
5 hours at approx. 59°F (15°C)
4 hours at approx. 68°F (20°C)
3 hours at approx. 77°F (25°C)
4.92''
(125)
20.9 x 12.8 x 1.2''
(530 x 325 x 30)
9.9
(4.5)
4330040_A2
