CHECKING AND ADJUSTING THE STE-
ERING PLAY

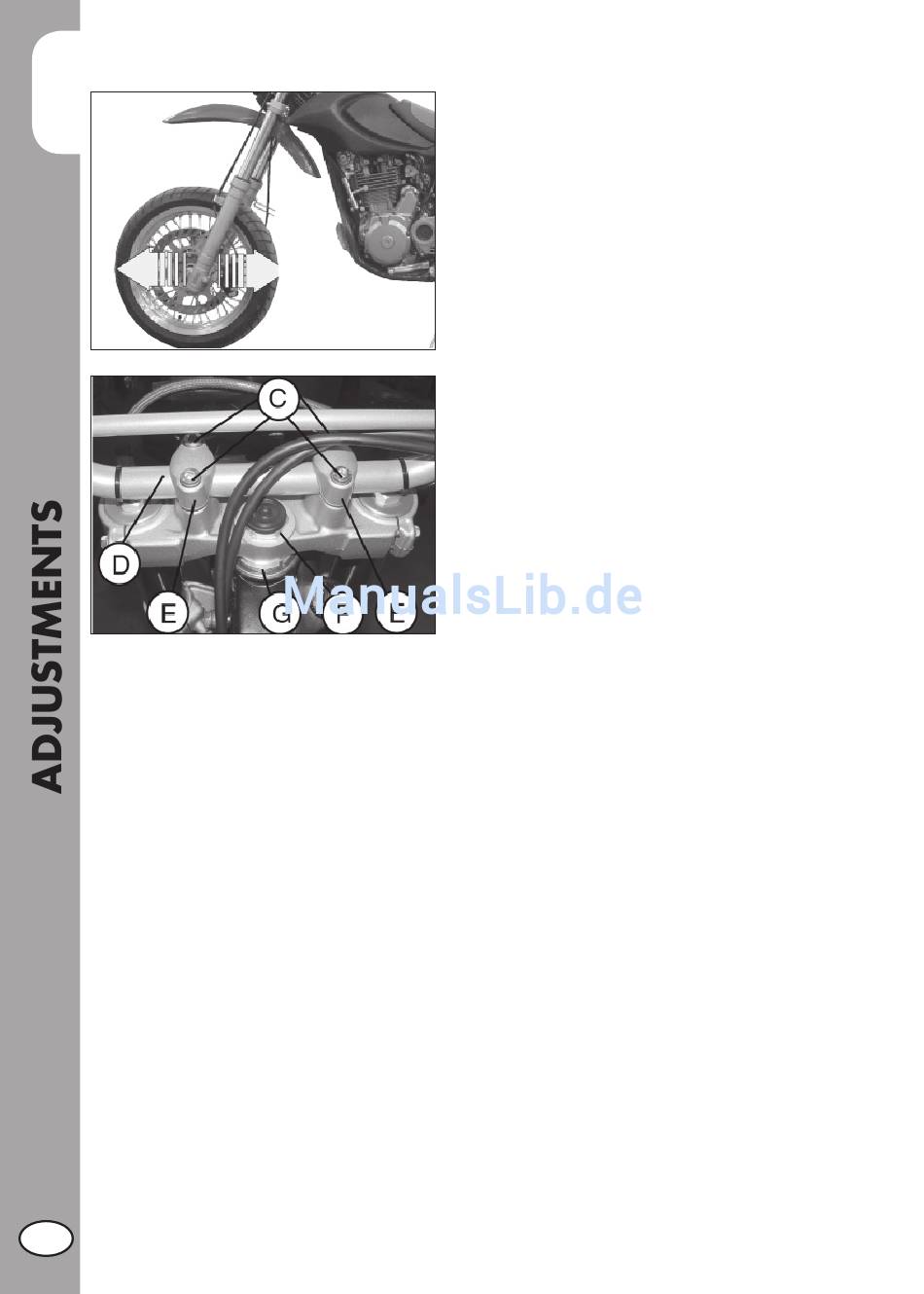

Periodically check the play of the steering
head tube by moving the forks backwards
and forwards as shown in the fi gure. If
any play is felt, carry out the adjustment
by following these steps:
• Unscrew the four screws C.
• Pull out handlebar D, paying special
attention to clevises E.
• Loosen nut F.
• Reduce the play by turning ring G.
To refi t the parts, follow the reverse pro-
cedure.
Note:
Proper adjustment must leave no play and
cause no stiffness, and allow the steering to
rotate smoothly. Check the fi tting direction
of the clevises as it can alter the geometry
of the handlebar.
