2. INSTRUMENT FUNCTIONS

2.1 Instantaneous speed
The speed is always displayed with digits
10 -12 (fi g. 1 and fi g. 2).
If the selected unit of measurement is Km/h
(default unit), the relevant logo is displayed;
using the push-button and accessing the Set-
up menu, it is possible to change the unit of
measurement to mph (fi g. 2).
The value displayed is updated every 0.5
seconds.

2.1.1 Speed sensor

The digital instrument is compatible, in accor-
dance with the settings of the revolution/wheel
pulses, with both, Reed and Hall sensors. In
both cases, the sensor should close to ground.
Possibly the power of the Hall sensor can
be taken from pin # 6 (5V when the key is
in the on position) of the 18-way connector.
NOTE: When using Reed sensors, 5V power
is always present at pin # 6 of the 18-way
connector.
2.2. Total distance (TOTAL)
The total distance is displayed in the upper
left corner (digits 1-5) and is accompanied
by the word TOTAL, as shown in fi g. 3.
The datum is stored permanently in a non vo-
latile memory (E2prom refresh after every Km).
If no data is stored in the memory, the number
00000 is displayed.

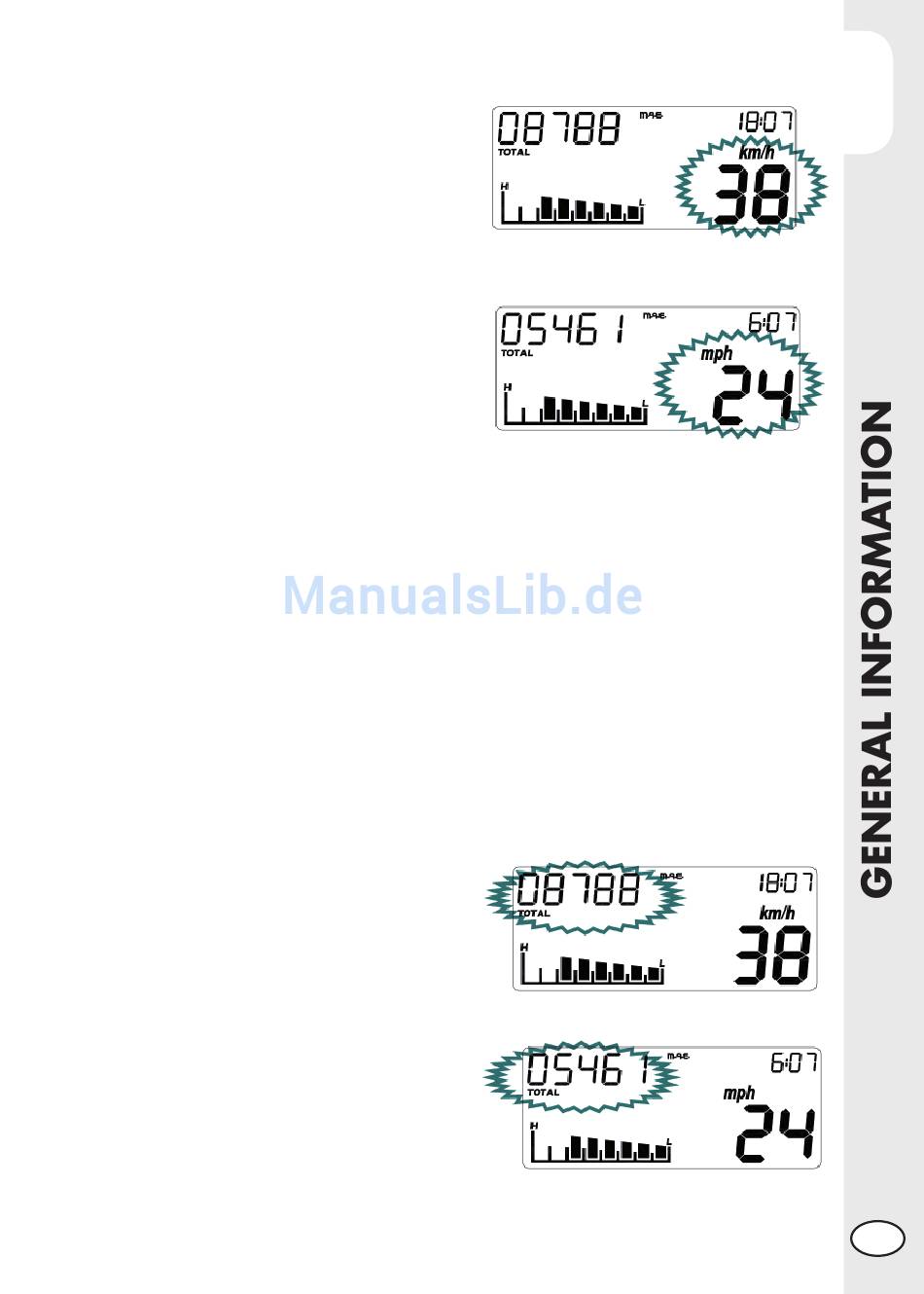

Fig. 1
Fig. 2
Fig. 3
