REMOVING THE PLASTICS FOR MO-
TARD M4
To facilitate checks and operations in
certain areas of the vehicle, it is essential
to remove the bodywork sections as de-
scribed below.

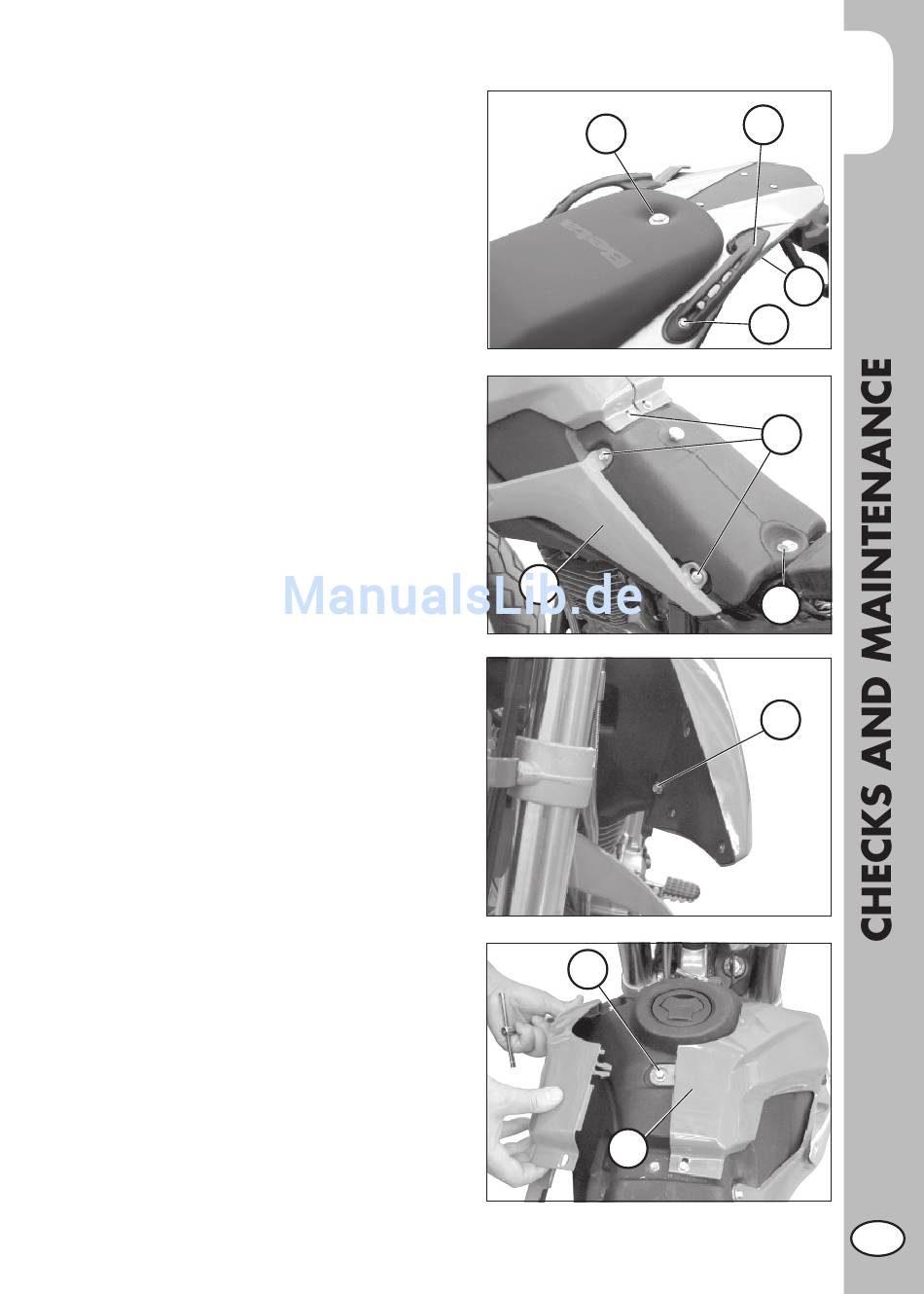

Saddle removal
•Turn the fi xing A by 90° anticlockwise,
take out the saddle by pulling it to the
back of the vehicle. To fi t it back in, just
put the saddle back in its place, push the
fi xing A down (without turning it) until it
clicks. Now the saddle is in place.
Disassembling rear handles
• Unscrew the two clamping screws B
then remove the other clamping screw
C, positioned under the rear mudguard
and thus remove the handles D, taking
care not to mislay the rubber shims.
Disassembling front sides
•Remove the front side panels, beginning
with panel E on the left side.
Remove the three screws F and screw G at
the front, then detach the panel from the
tank. Use the same procedure for side
panel H, taking care to also remove
screw I on the tank.
Then remove side panel H, releasing it
from the pegs on the fuel tank.
Removing the fuel tank
• Remove screw L fi xing the fuel tank to the
frame, detach the fuel cock line and then
remove the tank by pulling it towards the
rear of the vehicle.
Note:
The tank can be completely removed along
with the front sides, removing though, the
two lower screws F.
A
E
I
139
D
B
F
L
G
H
3
C
GB
