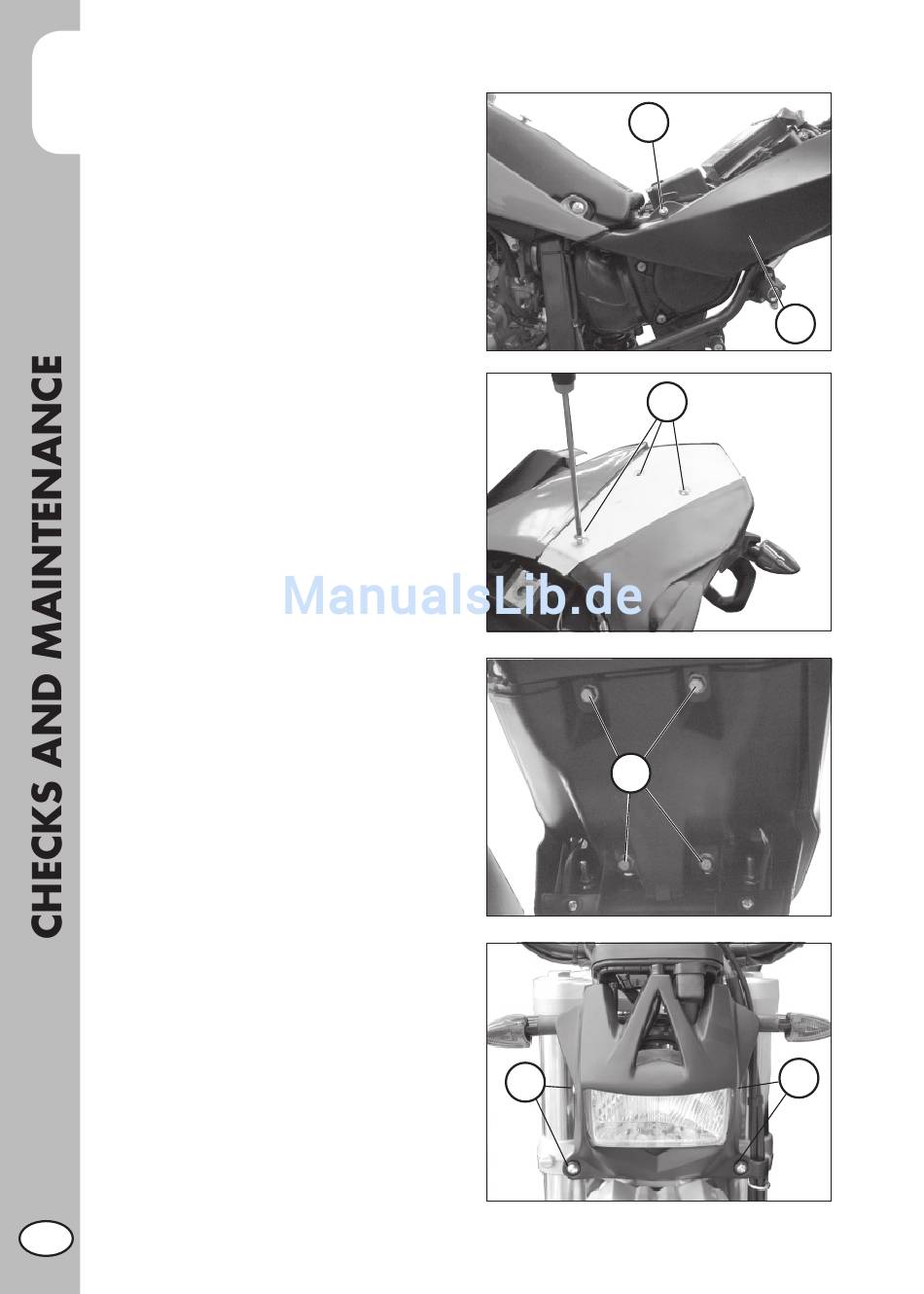

Disassembling rear sides
• After removing the front side panels and
the grab handles, unscrew the two side
fasteners N and remove rear fairings M.
Subsequently remove the three screws O
and take off the side panels, disengaging
them from their catches.
Disassembling rear tail
• After removing the rear side panels,
unscrew the four screws P under the tail
fairing.
Removing the headlight
• Loosen the four screws Q and remove the
headlight assembly.
GB
Q
140
N
M
O
P
Q
