FORK OIL

Right/left-hand rod
The procedure for changing the oil in
the forks is provided only for information.
We recommend having the operation
performed by a BETAMOTOR authorized
workshop.

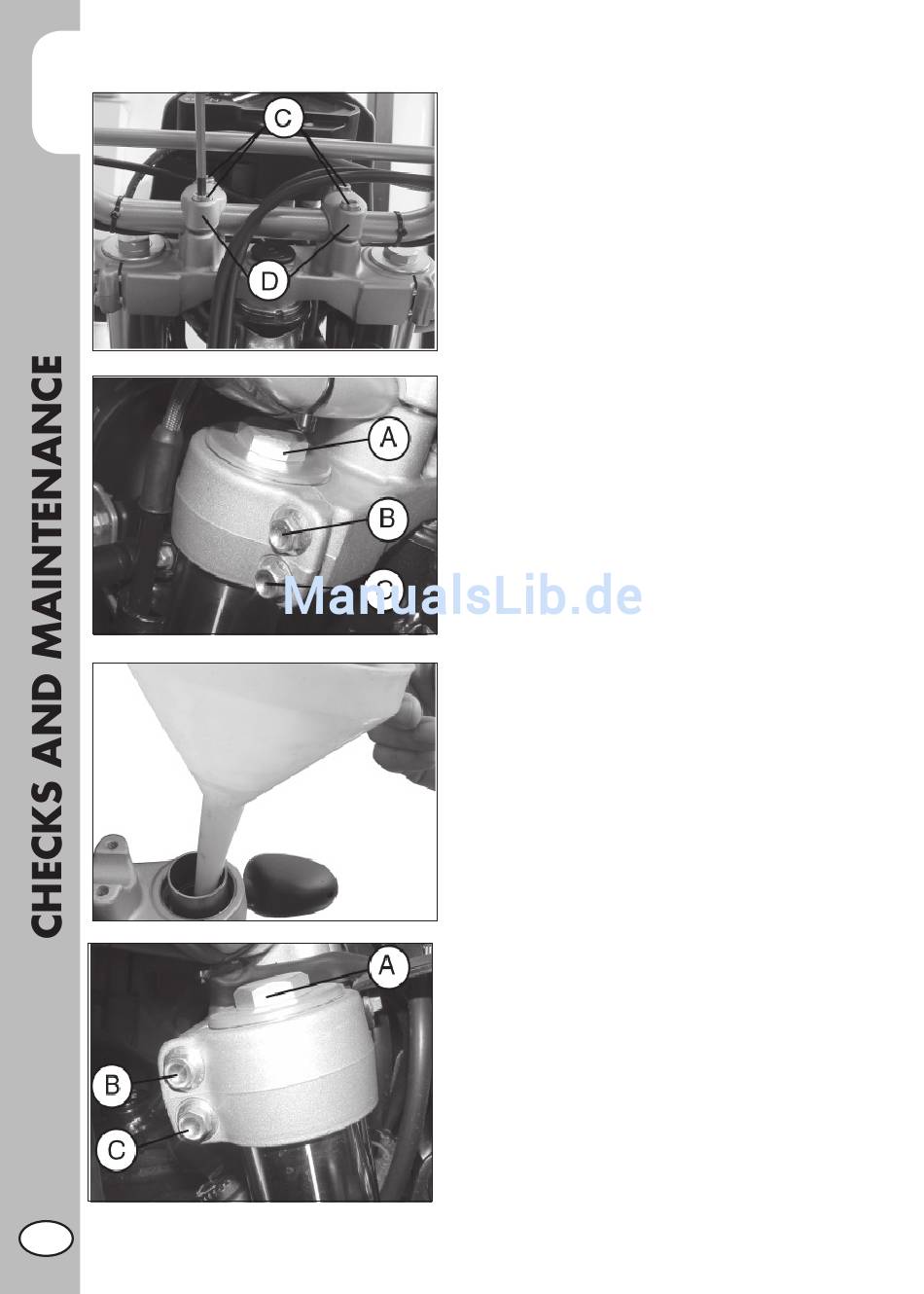

Follow these steps to renew the oil:
1) Remove the handle-bar by unscrewing
the four C clamping screws of the two D
stand screws.
2) Unloosen the stem clamping screws B
and C.
3) Remove the lower plug (hexagonal
screws in the fork sheath) and upper
plug A.
4) Let all the oil drain from the rod.
5) Retighten the inferior cap of the fork
sheath.
6) Pour in fresh oil of the type shown in
the table on page 116.
7) Fit and tighten upper plug A.
8) Tighten in sequence, fi rst the B screw,
then the C screw and aging the B
screw.
