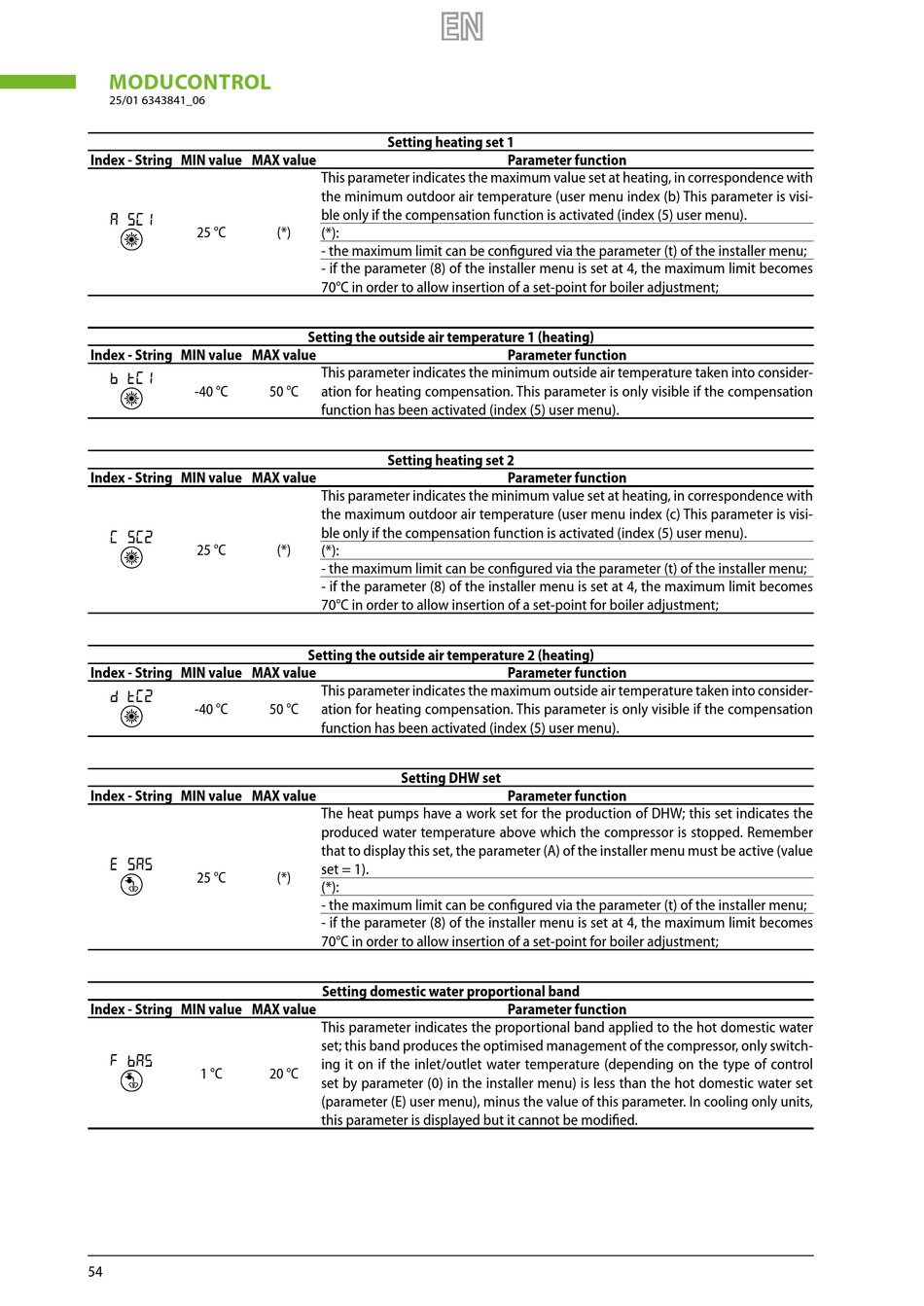

MODUCONTROL
25/01 6343841_06
Index - String MIN value MAX value
A SC1
25 °C
Index - String MIN value MAX value
b tC1
-40 °C
Index - String MIN value MAX value
C SC2
25 °C
Index - String MIN value MAX value
d tC2
-40 °C
Index - String MIN value MAX value
E SA5
25 °C
Index - String MIN value MAX value
F bA5
1 °C
54
Setting heating set 1
This parameter indicates the maximum value set at heating, in correspondence with
the minimum outdoor air temperature (user menu index (b) This parameter is visi-
ble only if the compensation function is activated (index (5) user menu).
(*) (*):
- the maximum limit can be configured via the parameter (t) of the installer menu;
- if the parameter (8) of the installer menu is set at 4, the maximum limit becomes
70°C in order to allow insertion of a set-point for boiler adjustment;
Setting the outside air temperature 1 (heating)
This parameter indicates the minimum outside air temperature taken into consider-
50 °C ation for heating compensation. This parameter is only visible if the compensation
function has been activated (index (5) user menu).
Setting heating set 2
This parameter indicates the minimum value set at heating, in correspondence with
the maximum outdoor air temperature (user menu index (c) This parameter is visi-
ble only if the compensation function is activated (index (5) user menu).
(*) (*):
- the maximum limit can be configured via the parameter (t) of the installer menu;
- if the parameter (8) of the installer menu is set at 4, the maximum limit becomes
70°C in order to allow insertion of a set-point for boiler adjustment;
Setting the outside air temperature 2 (heating)
This parameter indicates the maximum outside air temperature taken into consider-
50 °C ation for heating compensation. This parameter is only visible if the compensation
function has been activated (index (5) user menu).
Setting DHW set
The heat pumps have a work set for the production of DHW; this set indicates the
produced water temperature above which the compressor is stopped. Remember
that to display this set, the parameter (A) of the installer menu must be active (value
set = 1).
(*)
(*):
- the maximum limit can be configured via the parameter (t) of the installer menu;
- if the parameter (8) of the installer menu is set at 4, the maximum limit becomes
70°C in order to allow insertion of a set-point for boiler adjustment;
Setting domestic water proportional band
This parameter indicates the proportional band applied to the hot domestic water
set; this band produces the optimised management of the compressor, only switch-
ing it on if the inlet/outlet water temperature (depending on the type of control
20 °C
set by parameter (0) in the installer menu) is less than the hot domestic water set
(parameter (E) user menu), minus the value of this parameter. In cooling only units,
this parameter is displayed but it cannot be modified.
