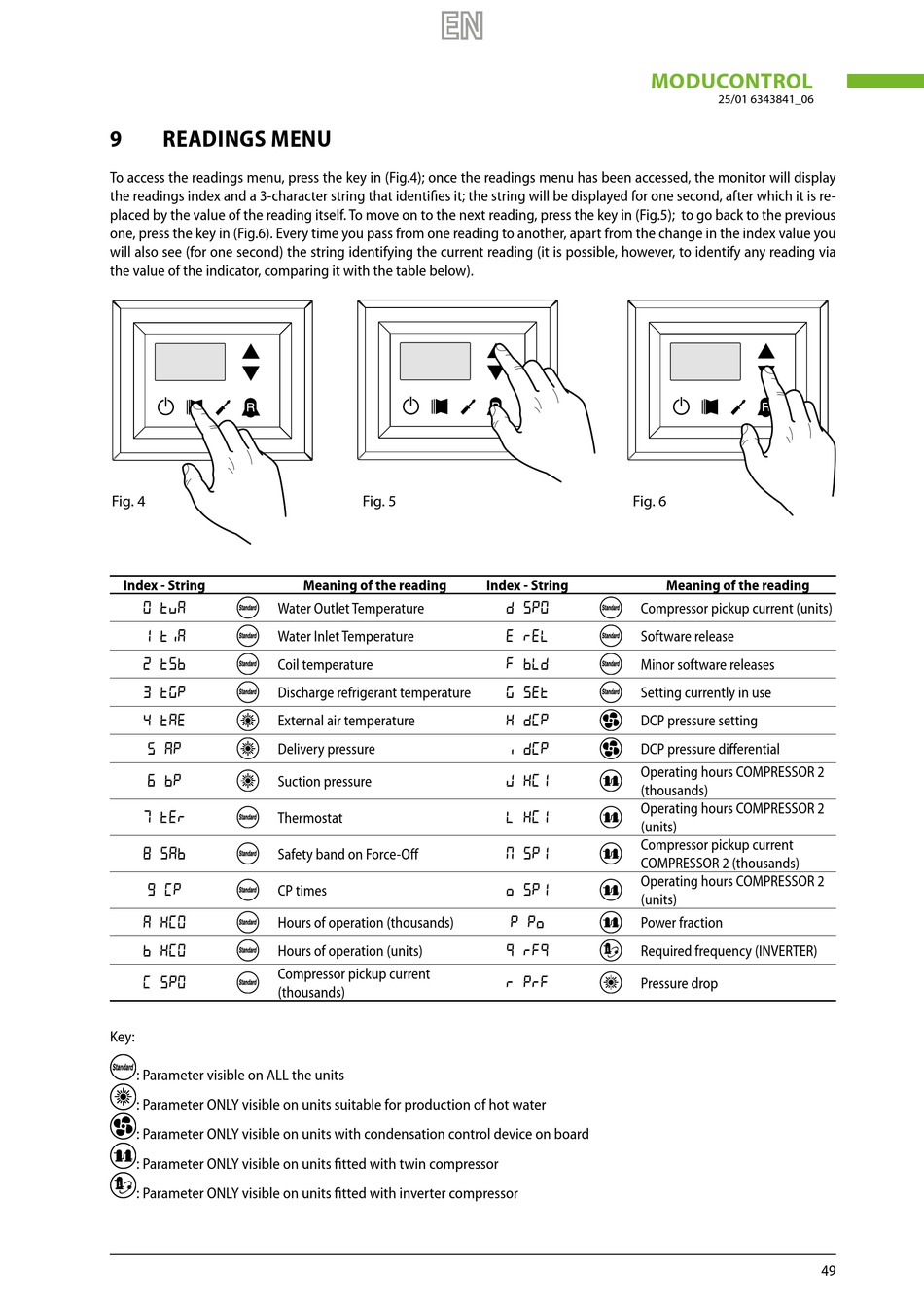

9 READINGS MENU
To access the readings menu, press the key in (Fig.4); once the readings menu has been accessed, the monitor will display
the readings index and a 3-character string that identifies it; the string will be displayed for one second, after which it is re-
placed by the value of the reading itself. To move on to the next reading, press the key in (Fig.5); to go back to the previous
one, press the key in (Fig.6). Every time you pass from one reading to another, apart from the change in the index value you
will also see (for one second) the string identifying the current reading (it is possible, however, to identify any reading via
the value of the indicator, comparing it with the table below).
Fig. 4
Index - String
Water Outlet Temperature
0 tuA
Water Inlet Temperature
1 tiA
Coil temperature
2 tSb
Discharge refrigerant temperature
3 tGp
External air temperature
4 tAE
Delivery pressure
5 AP
Suction pressure
6 bP
Thermostat
7 tEr
Safety band on Force-Off
8 SAb
CP times
9 CP
Hours of operation (thousands)
A HC0
Hours of operation (units)
b HC0
Compressor pickup current
C SP0
(thousands)
Key:
: Parameter visible on ALL the units
: Parameter ONLY visible on units suitable for production of hot water
: Parameter ONLY visible on units with condensation control device on board
: Parameter ONLY visible on units fitted with twin compressor
: Parameter ONLY visible on units fitted with inverter compressor
Fig. 5
Meaning of the reading
MODUCONTROL
Fig. 6
Index - String
Compressor pickup current (units)
d SP0
Software release
E rEL
Minor software releases
F bLd
Setting currently in use
G SEt
DCP pressure setting
H dCP
DCP pressure differential
i dCP
Operating hours COMPRESSOR 2
J HC1
(thousands)
Operating hours COMPRESSOR 2
L HC1
(units)
Compressor pickup current
N SP1
COMPRESSOR 2 (thousands)
Operating hours COMPRESSOR 2
o SP1
(units)
Power fraction
P Po
Required frequency (INVERTER)
Q rFQ
Pressure drop
r PrF
25/01 6343841_06
Meaning of the reading
49
