MODUCONTROL
25/01 6343841_06

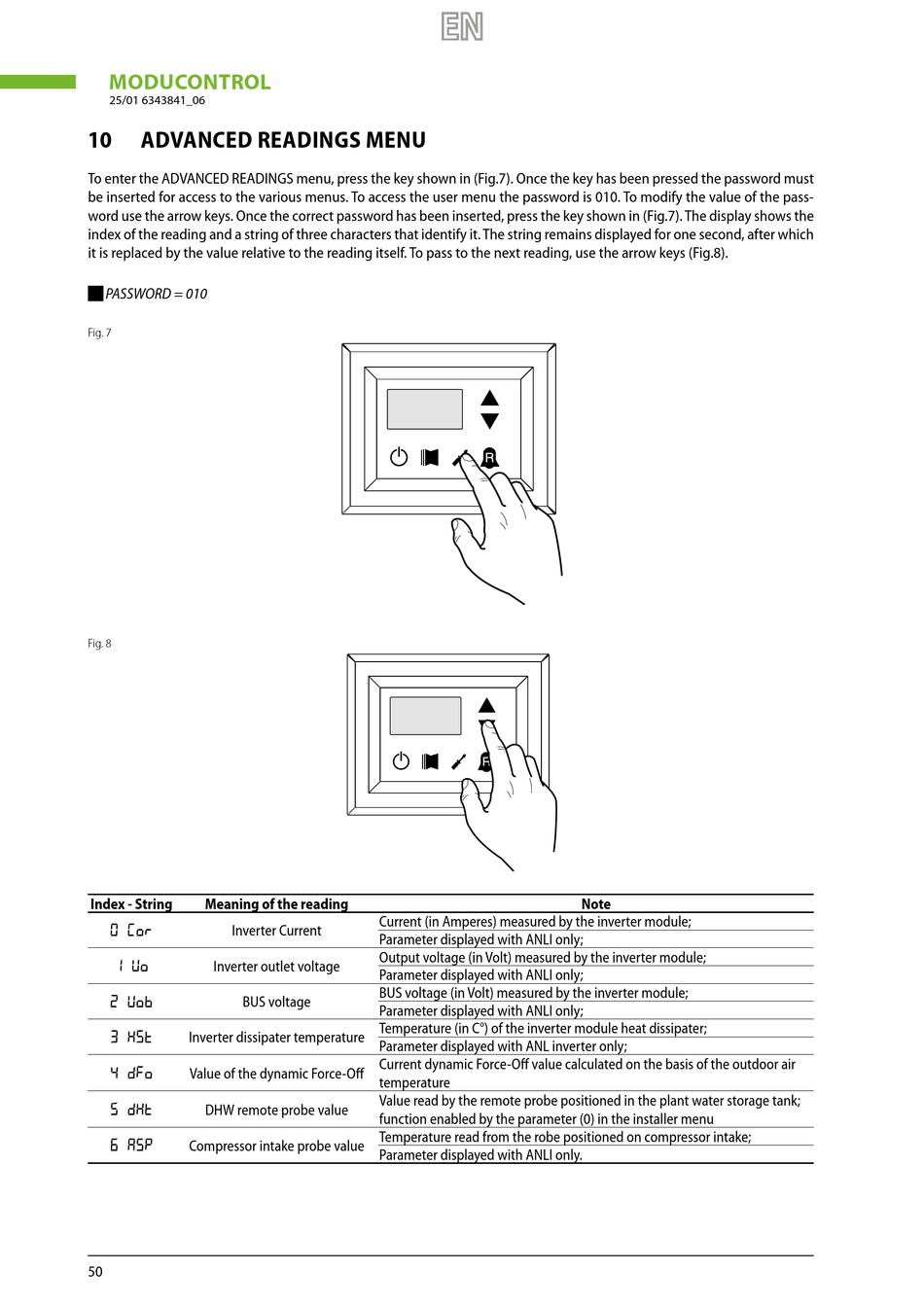

10 ADVANCED READINGS MENU
To enter the ADVANCED READINGS menu, press the key shown in (Fig.7). Once the key has been pressed the password must
be inserted for access to the various menus. To access the user menu the password is 010. To modify the value of the pass-
word use the arrow keys. Once the correct password has been inserted, press the key shown in (Fig.7). The display shows the
index of the reading and a string of three characters that identify it. The string remains displayed for one second, after which
it is replaced by the value relative to the reading itself. To pass to the next reading, use the arrow keys (Fig.8).

PASSWORD = 010
Fig. 7
Fig. 8
Index - String Meaning of the reading
Inverter Current
0 Cor
Inverter outlet voltage
1 Uo
BUS voltage
2 Uob
Inverter dissipater temperature
3 HSt
Value of the dynamic Force-Off
4 dFo
DHW remote probe value
5 dHt
Compressor intake probe value
6 ASP
50
Current (in Amperes) measured by the inverter module;
Parameter displayed with ANLI only;
Output voltage (in Volt) measured by the inverter module;
Parameter displayed with ANLI only;
BUS voltage (in Volt) measured by the inverter module;
Parameter displayed with ANLI only;
Temperature (in C°) of the inverter module heat dissipater;
Parameter displayed with ANL inverter only;
Current dynamic Force-Off value calculated on the basis of the outdoor air
temperature
Value read by the remote probe positioned in the plant water storage tank;
function enabled by the parameter (0) in the installer menu
Temperature read from the robe positioned on compressor intake;
Parameter displayed with ANLI only.
Note
