7.5.1. Power connections

, VS POOL 3.5 HP (2.2 kW) , VS POOL 4.5 HP (3 kW) , VS POOL 5.5 HP (4 kW)
L1
L2
L3
Power Supply
LINE
P.E.
U
V
W
Motor
MOTOR
P.E.

7.5.2. Control connections

Control connections for size 1 devices
24
VS POOL
MOTOR
W V
A [mm] Pre-insulated cable lug
70 6.3 x 0.8 mm female Faston
70 6.3 x 0.8 mm female Faston
70 6.3 x 0.8 mm female Faston
70 6.3 x 0.8 mm female Faston
120 (200) 6.3 x 0.8 mm female Faston
120 (200) 6.3 x 0.8 mm female Faston
120 (200) 6.3 x 0.8 mm female Faston
180 (200) 6.3 x 0.8 mm female Faston
EMC
U
LINE
L1 L2
Wall installation
Installation on board the engine
L3

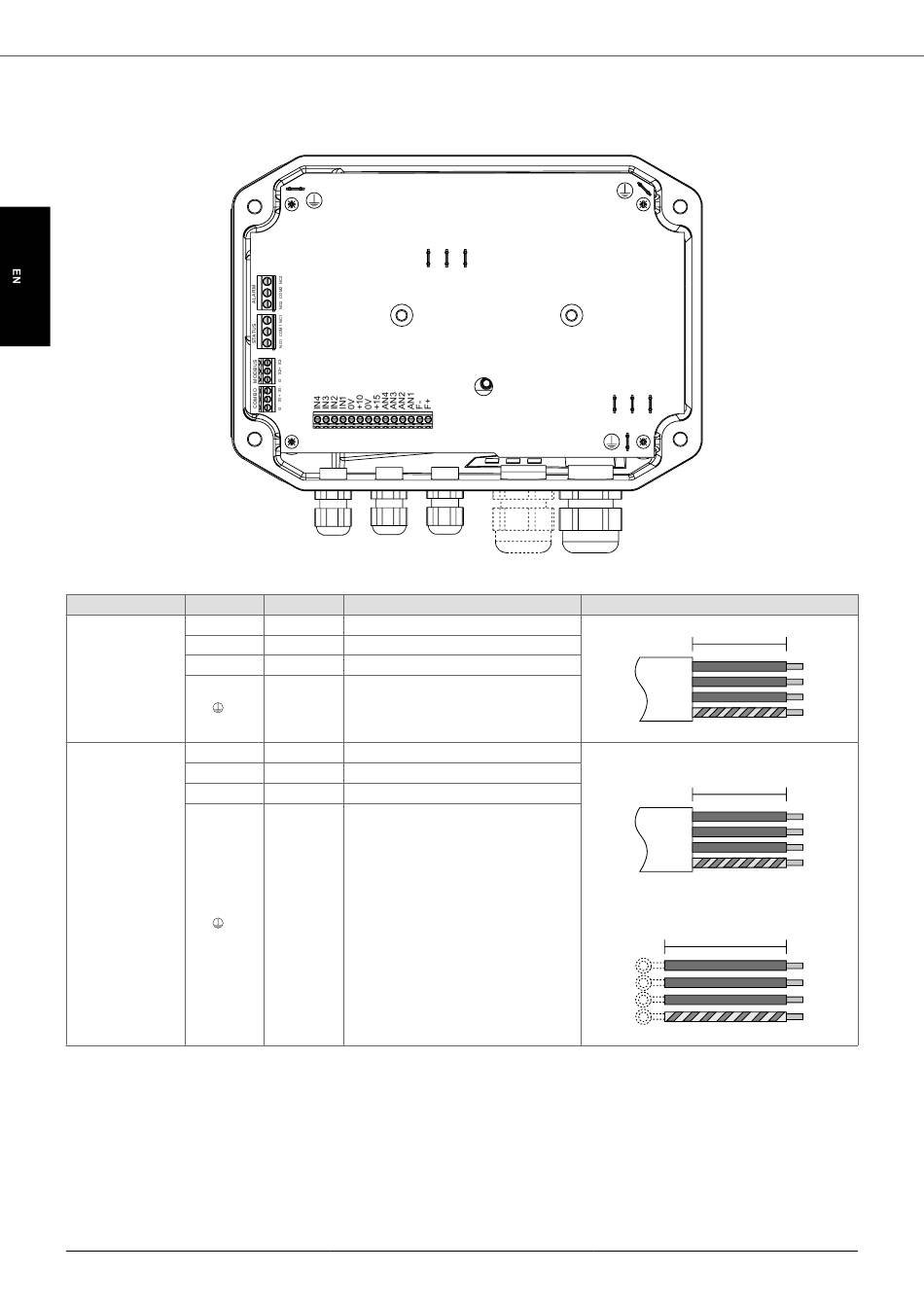

Stripping diagram
A
A
(A)
