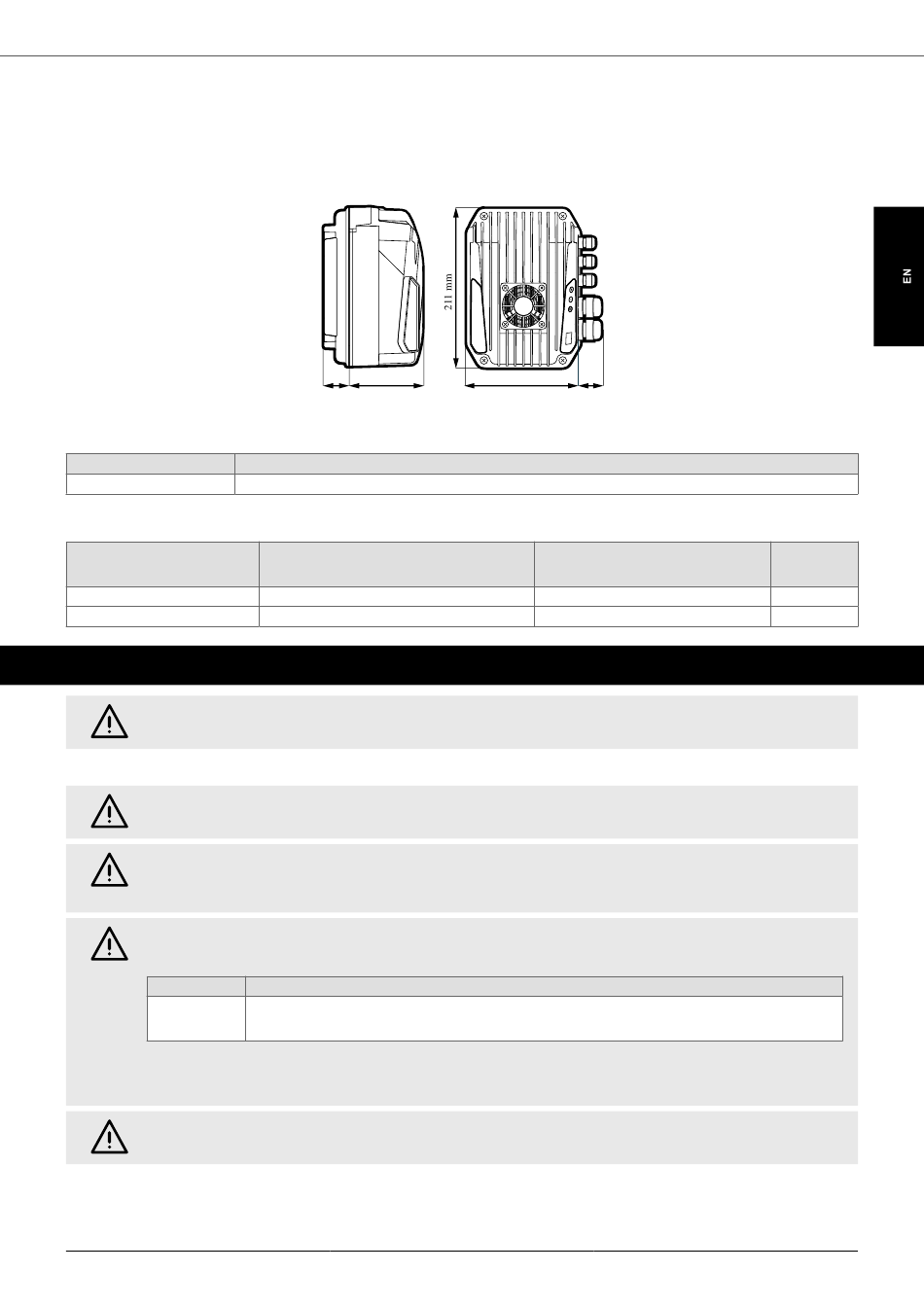

5.3. Dimensions and weight

Size
1

5.4. Cables entry

Cable gland
M12
M20

6. Mechanical installation

WARNING
Read the safety chapter carefully before continuing.

6.1. Installation environment

WARNING
The environmental specifications stated in the technical data of the product must be strictly complied with.
WARNING
Do not install the device in environments at a risk of explosion, flooding, or in the presence of flammable fluids or solids. Ensure sufficient
ventilation in the room.
Refer to local regulations when selecting the appropriate installation location.
WARNING
The degree of protection of the device is only ensured if, at the end of the installation, the cover screws and the cable glands have been properly
tightened. Close the holes of unused cable glands with the appropriate plugs.
Device
VS POOL
Size 1
Protect the device from direct exposure to weather and sunlight.
Do not leave the device installed without cover or with the cable glands open, even if not connected to the power supply. The infiltration of dust,
water or humidity may irreparably damage the device.
WARNING
To ensure uninterrupted operation, the device can gradually and automatically reduce performance before shutting down following over-tempera-
ture. However, prolonged operation above the rated temperature leads to a reduction in the life of the device.

6.2. Cooling

The device is cooled primarily by forced air circulation through the heat sink element.
In addition to the heat sink, the device also uses the remaining surfaces to cool itself. It is therefore necessary to ensure sufficient space around the device during
installation.
33 97 mm
Maximum weight [kg]
2,5 kg (5,5 lb)
Tightening torque
[Nm]
2,7
7
Tightening torque of the screws between the base and the heatsink
3 Nm - 2,2 ftlbs
VS POOL
150 27
Cable diameter
[mm]
3,5-7
7-13
Size
1
3
2
