9.4 Dimension sheets
Symbol Dimensions
A Approx. 6,000 mm [236,22
in]
B Approx 2,500 – 3,000 mm
[98.43 – 118.11 in]
15028844-00

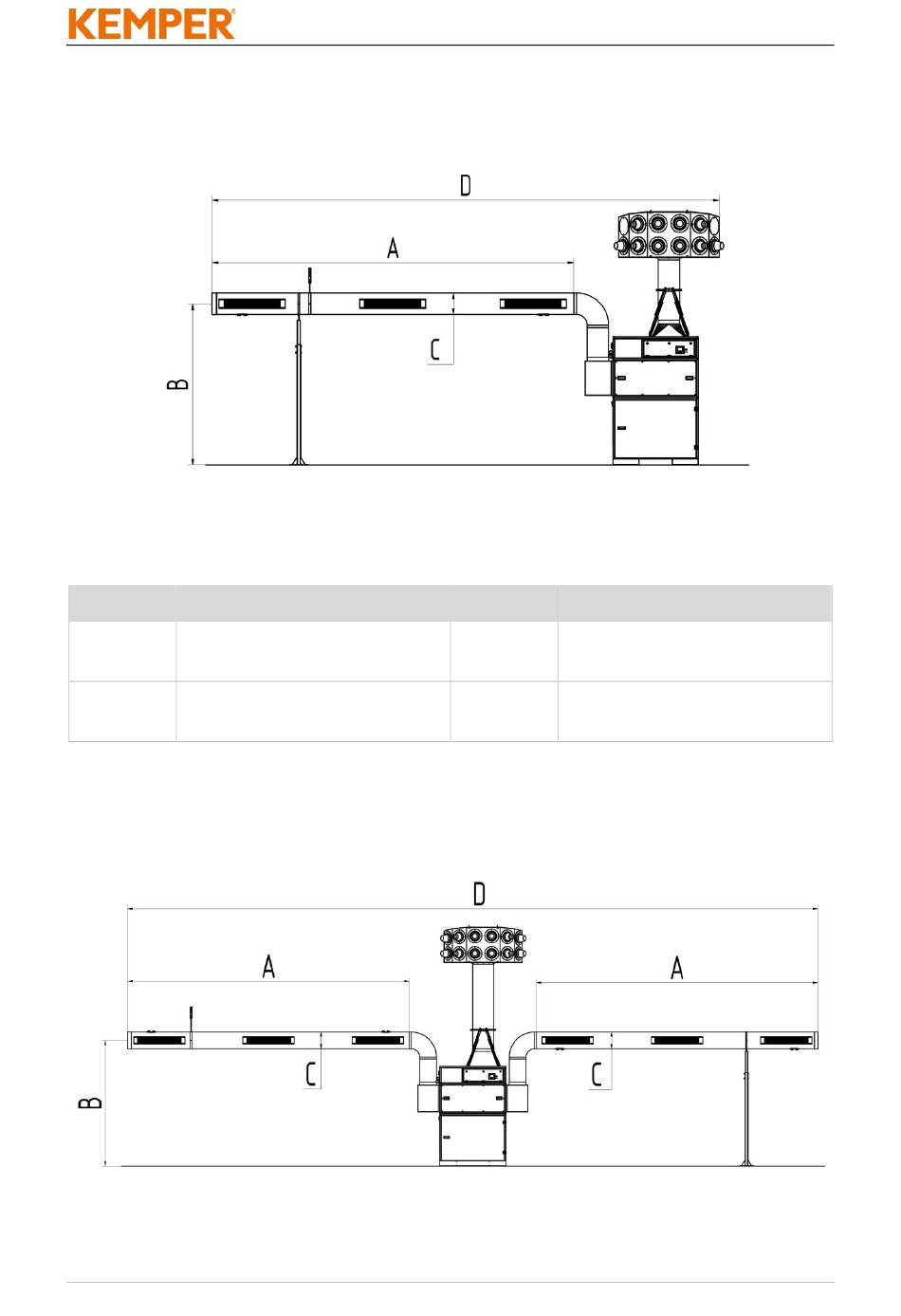

Fig. 119: Dimensions sheet – 998800407
Tab. 96: Dimension table – 998800407
Fig. 120: Dimensions sheet – 998800401
- 189 -
Symbol Dimensions
C Ø 355 mm [13.98 in]
D Approx. 8,500 mm [334.65
in]
