F
450 mm [17.72 in]
G
1,146 mm [45.12 in]
Tab. 94: Dimension tables 998701371 (998800401, 998800462)

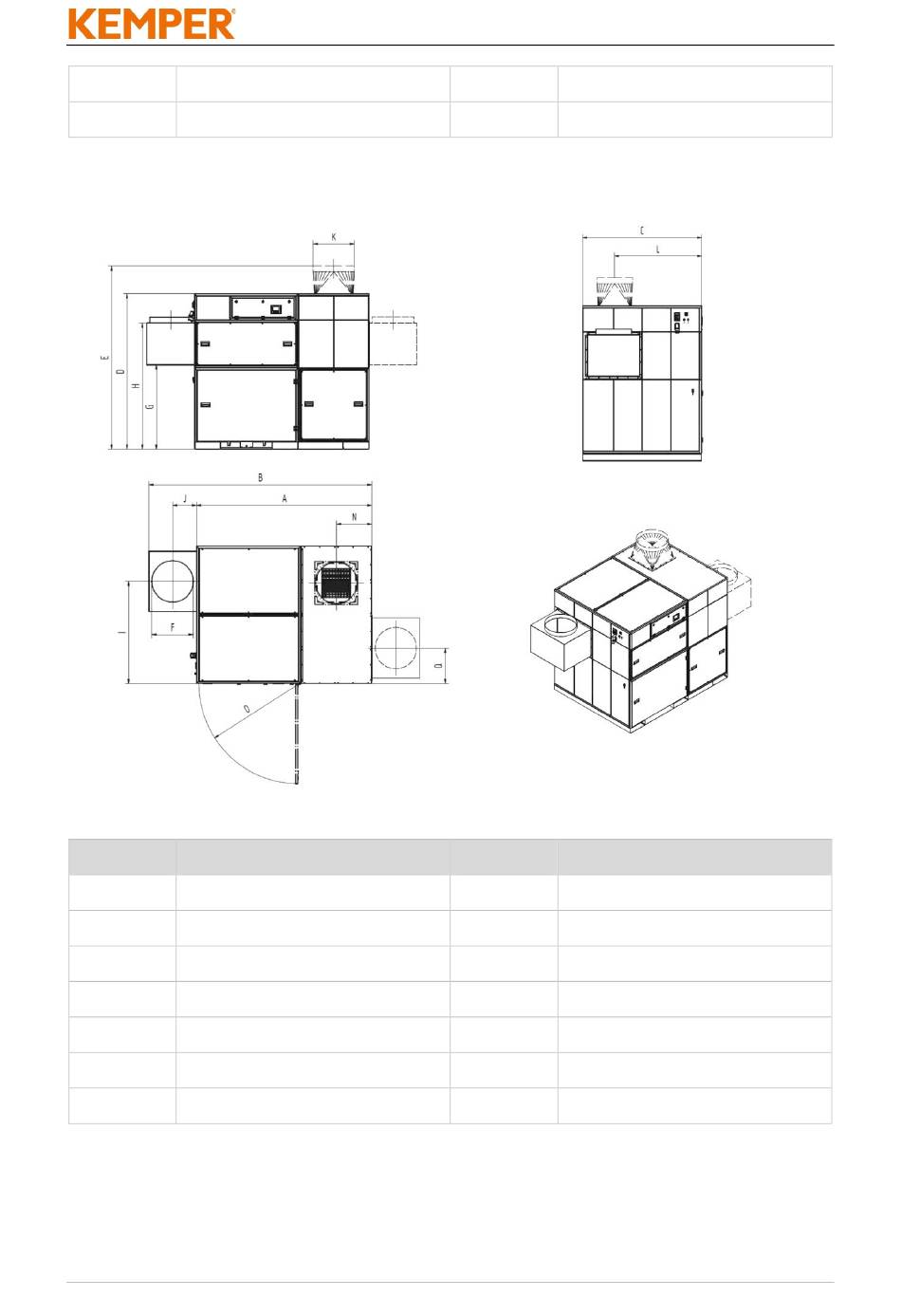

Fig. 118: Dimension sheets 998701370 (998800414, 998800463)
Symbol
Dimensions
A
2,378 mm [93.62 in]
B
3,028 mm [119.21 in]
C
1,864 mm [73.38 in]
D
2,110 mm [83.07 in]
E
2,510 mm [98.82 in]
F
560 mm [22.05 in]
G
1,146 mm [45.12 in]
Tab. 95: Dimension tables 998701370 (998800414, 998800463)
15028844-00
N
484 mm [19.05 in]
O
1,347 mm [53.03 in]
Symbol
Dimensions
H
1,716 mm [67.56 in]
I
1,382 mm [54.41 in]
J
325 mm [12.80 in]
K
560 mm [22.05 in]
L
1,364 mm [53.70 in]
N
481 mm [18.94 in]
O
1,347 mm [53.03 in]
