5. Screw the two fixing plates (Pos. 5) to the cover plate of the filter system
(Pos. 1) as shown in the illustration. Use the enclosed self-tapping
screws.
6. Fix the spiral pipe (Pos. 3) to the adapter (Pos. 2) using self-tapping
screws.
Pos. Description
3 Spiral pipe
7. Place the blower unit (Pos. 6) onto the spiral pipe (Pos. 3) using a
suitable hoist, e.g. a crane or forklift.
8. Align the blower unit (Pos. 6) and fix it to the spiral pipe (Pos. 3) using
self-tapping screws.
5.3.1 Mounting – product with intake pipe system
Proceed to mount the intake pipe unit as follows:
Two mounting variants are available:
• Mounting the intake pipe on the wall with wall bracket
• Mounting the intake pipe on the floor with supports.
15028844-00

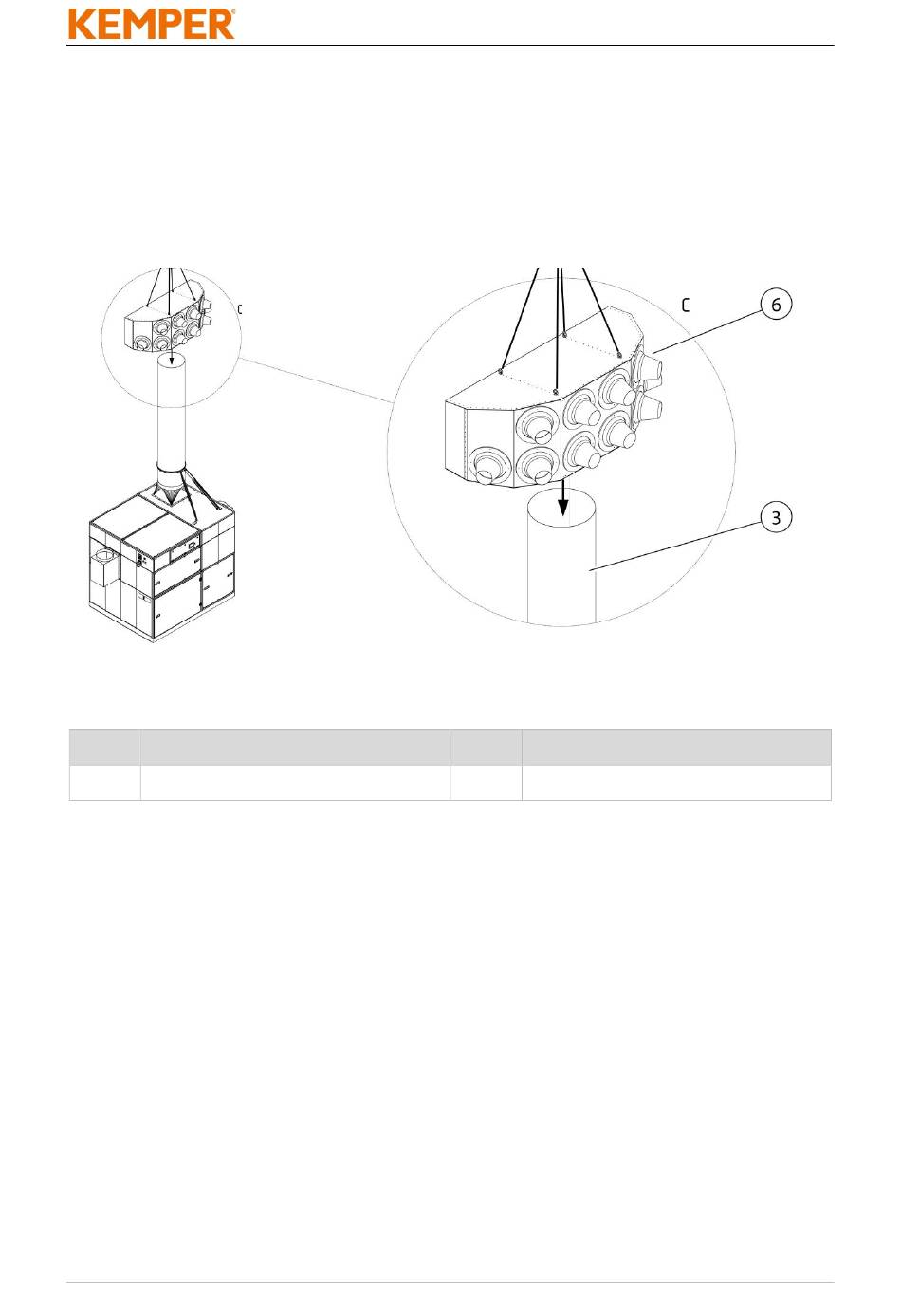

Fig. 75: Mounting – blower unit
Pos.
6
Tab. 59: Mounting – blower unit
- 130 -
Description
Blower unit
