3.1.3 Connection panels and operating control
Pos.
Description
1
Main switch
2
Connection socket for
external operating element
3
6-pin connection socket
4
12-pin connection socket
3.2 Intended use
The product is suitable for extracting and filtering the air in a closed room
and, according to the room, returning the clean air.
It is designed for use in production halls and warehouses, in which the air
in the room must be freed from particulate contamination such as fumes
and dust.
These fumes and dust must not be flammable substances, as they can
form an explosive mixture with the air, for which the product is not
designed.
Dimensions and further product details which must be observed can be
found in the technical data.
15028844-00

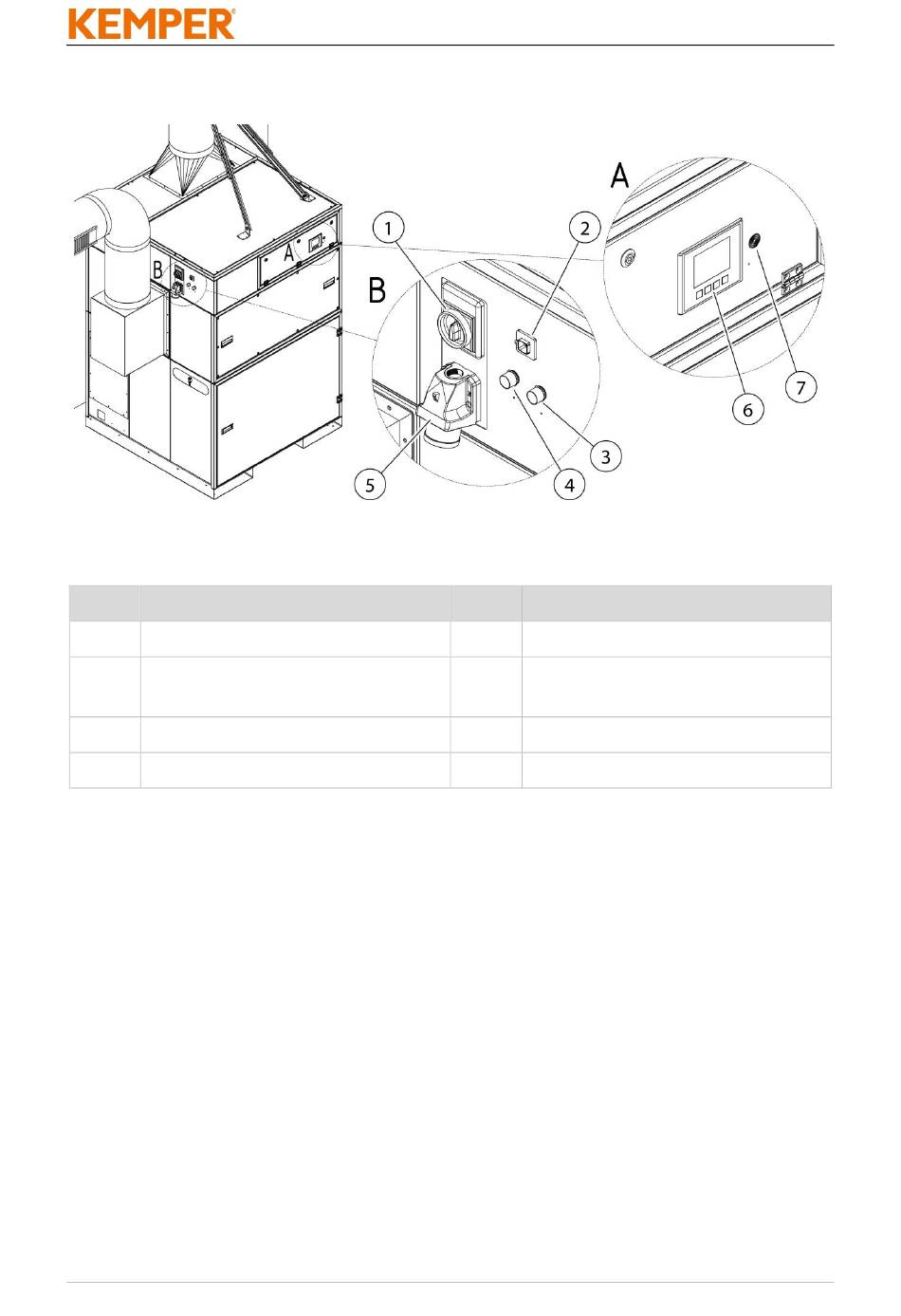

Fig. 69: Connection panels and operating control
Tab. 55: Positions on the product
Pos.
Description
5
CEE connector plug
6
Operating control – control
display
7
Signal horn
