Kemper KemJet Betriebsanleitung Seite 166

Pos. Description
1 Cover plate
Tab. 83: Changing filters – removing the cover plate
1. Disconnect the product from the mains supply and compressed air
network and allow any stored compressed air to escape from the
system.
2. Secure the product with a padlock to prevent unintentional restarting.
3. Make sure the original replacement filter cartridges and the enclosed
disposal bag are available.
4. Remove the cover plate (Pos. 1) using suitable tools.

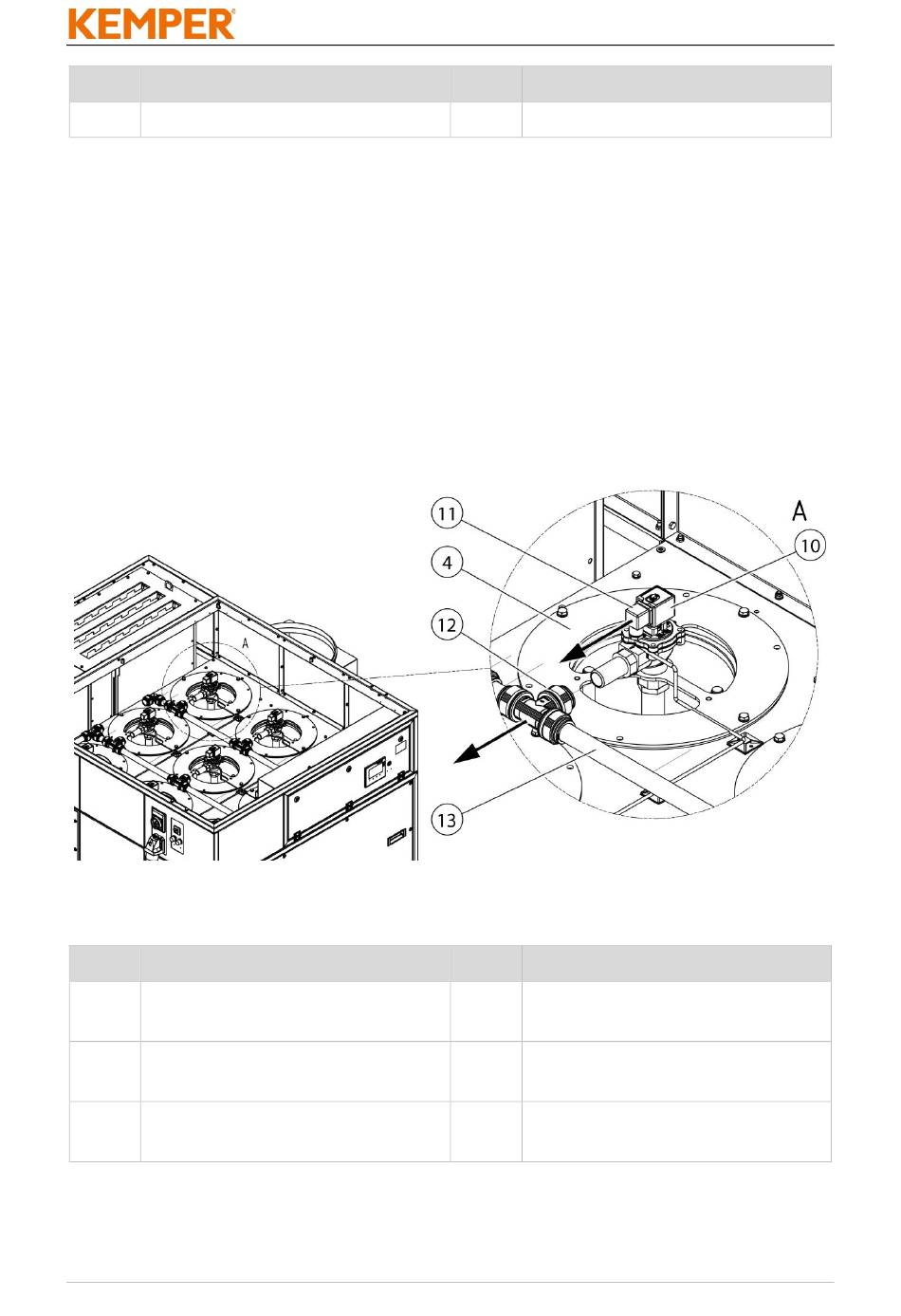

Fig. 105: Changing filters – removing the connections
Pos. Description
4 Filter holder
10 Compressed air solenoid
valve
11 Compressed air solenoid
valve connection plug
Tab. 84: Changing filters – removing the connections
15028844-00
Pos. Description
4 Filter holder
Pos. Description
12 Compressed air screw
connection
13 Compressed air pipework
