Pos.
Description
3
Filter cartridge (new)
14. Pull the new filter cartridge (Pos. 3) over the rotating nozzle (Pos. 4) and
screw it in place with the sealing washer + hexagon nut.
15. Before installing the new filter cartridge, the sealing ring (Pos. 14) of the
filter holder must be fitted, to do this, first remove the old seal and
thoroughly clean the sealing surfaces (Pos. 15).
16. Insert the filter mounting with the new filter cartridge (item 3) and
screw it in place with the four hex bolts. Ensure that the compressed air
solenoid valve (Pos. 10) is positioned correctly.
17. Carry out steps 8 – 16 for each filter.
18. After all filter cartridges have been changed, further mounting is carried
out in reverse order with steps 6 – 4.
After replacing the filter, carry out the following steps:
1. Screw/close maintenance doors.
2. Remove the padlock and unlock the product.
3. Restore the compressed air and power supply.
4. Commission the product. See also the chapter "Commissioning".
15028844-00

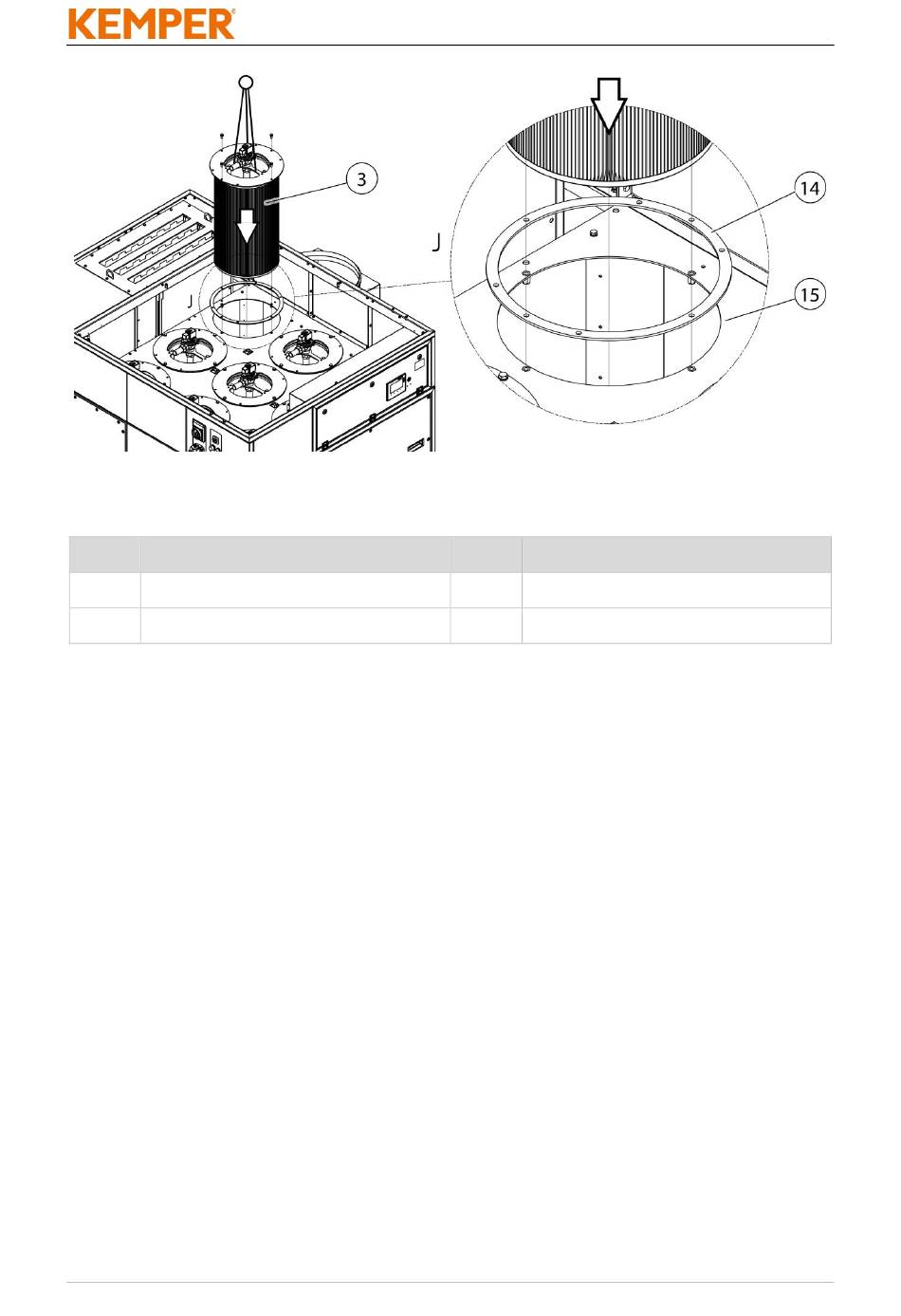

Fig. 109: Changing filters – filter mounting seal
Tab. 86: Changing filters – filter mounting seal
Pos.
Description
14
Gasket ring
15
Sealing surface
- 169 -
