5.3.2 Mounting – product with suction basket duct
connection
Pos. Description
2 Duct connection (suction
basket)
3 Intake pipe
NOTE
The connection box can be mounted on the left or right side of the filter
system.
See illustration: Pos. A or B
To mount the product, proceed as follows.
15028844-00

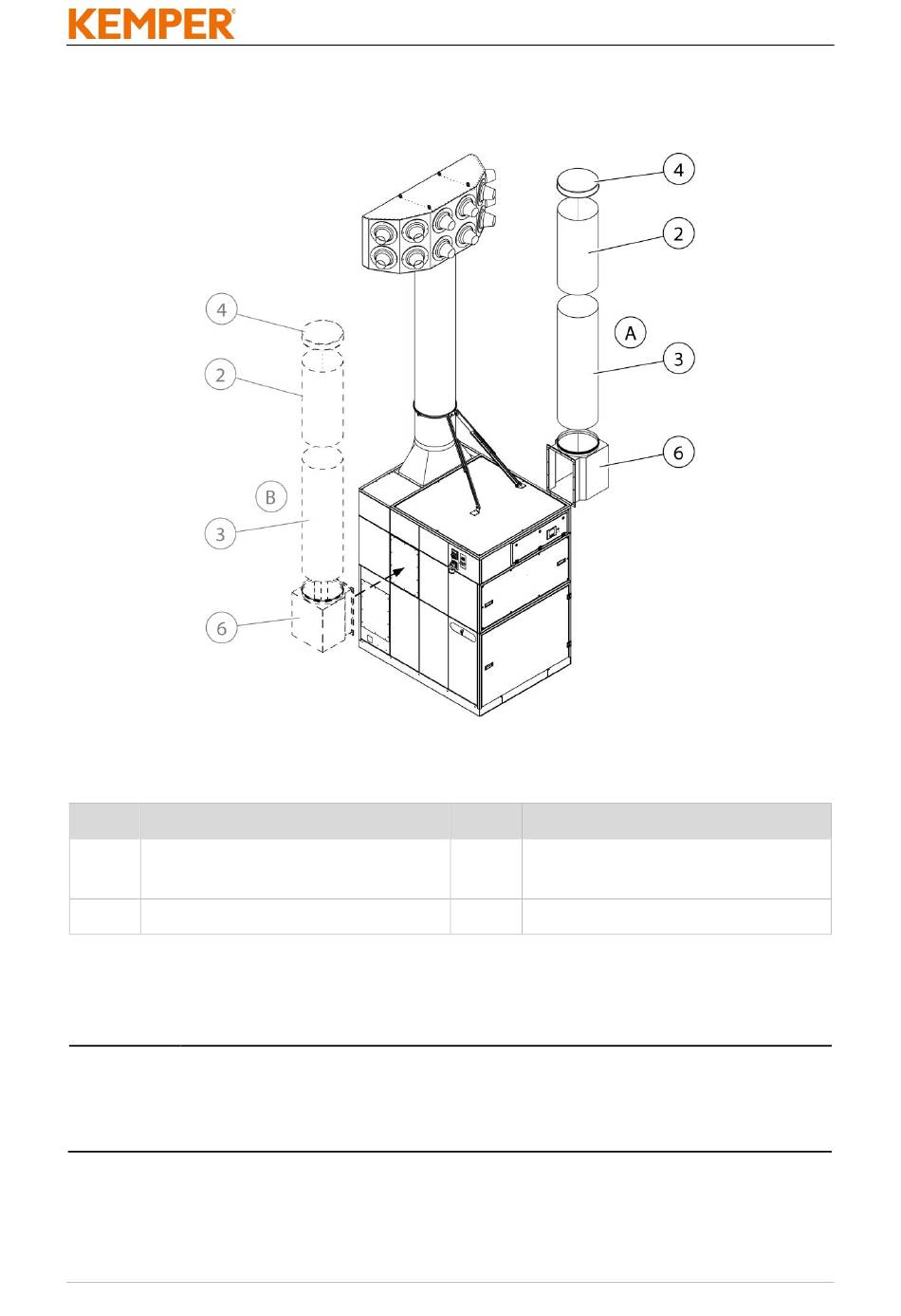

Fig. 78: Mounting - duct connection
Pos.
4
6
Tab. 61: Positions on the product
- 133 -
Description
Duct connection cover
Connection box
