Pos.
Description
1
Blower unit with outlet
nozzles, can be rotated by
30°
2
Duct connection (suction
basket) for polluted air
3
Intake pipe
4
Cover – duct connection
5
Blower unit support
6
Operating control
7
Maintenance door – filter
area
15028844-00

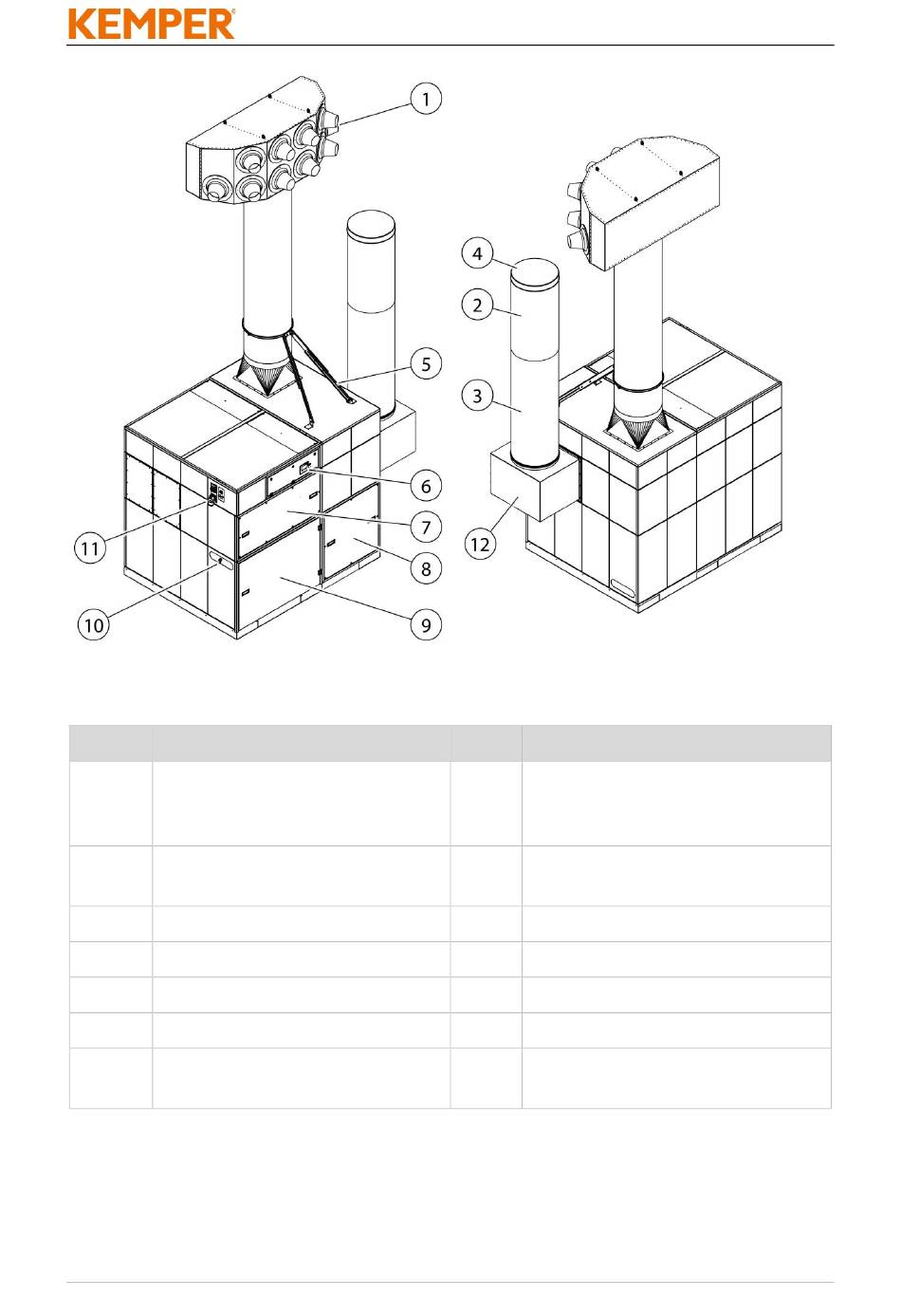

Fig. 68: Functional description - 998800463
Tab. 54: Positions on the product
- 117 -
Pos.
Description
8
Maintenance cover – fan area
9
Maintenance door – dust
collection trolley
10
Compressed air connection
11
Connection panel
12
Connection box
13
Wall mount bracket
