Pos. Product item number
A 998800407
B 998800401
Mounting the blower unit
Proceed to mount the blower unit as follows:
Pos. Description
1 Air outlet grille cover plate
2 Adapter
3 Spiral pipe
1. Mount the adapter (Pos. 2) on the air outlet grille cover plate of the filter
system (Pos. 1).
2. Insert the spiral pipe (Pos. 3) onto the adapter (Pos. 2).
3. Mount the connector kit (Pos. 4) as shown in the illustration. To do this,
place the pipe clamp around the spiral pipe (Pos. 3).
4. Align the spiral pipe using a spirit level.
15028844-00
Tab. 57: Mounting – overview of product variants

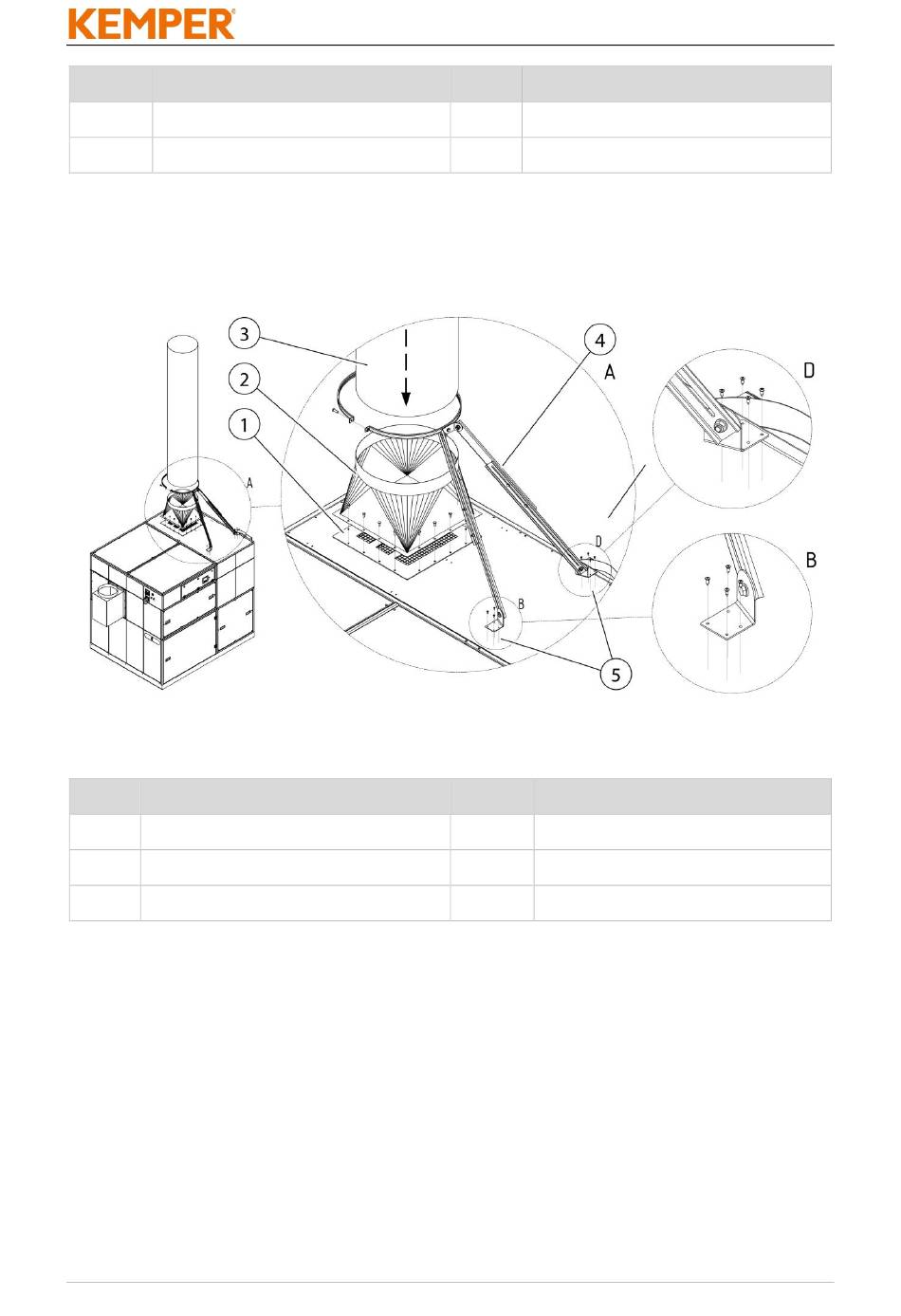

Fig. 74: Mounting – blower unit
Tab. 58: Mounting – blower unit
Pos. Product item number
C 998800414
Pos. Description
4 Stanchion support
5 Fixing plate
