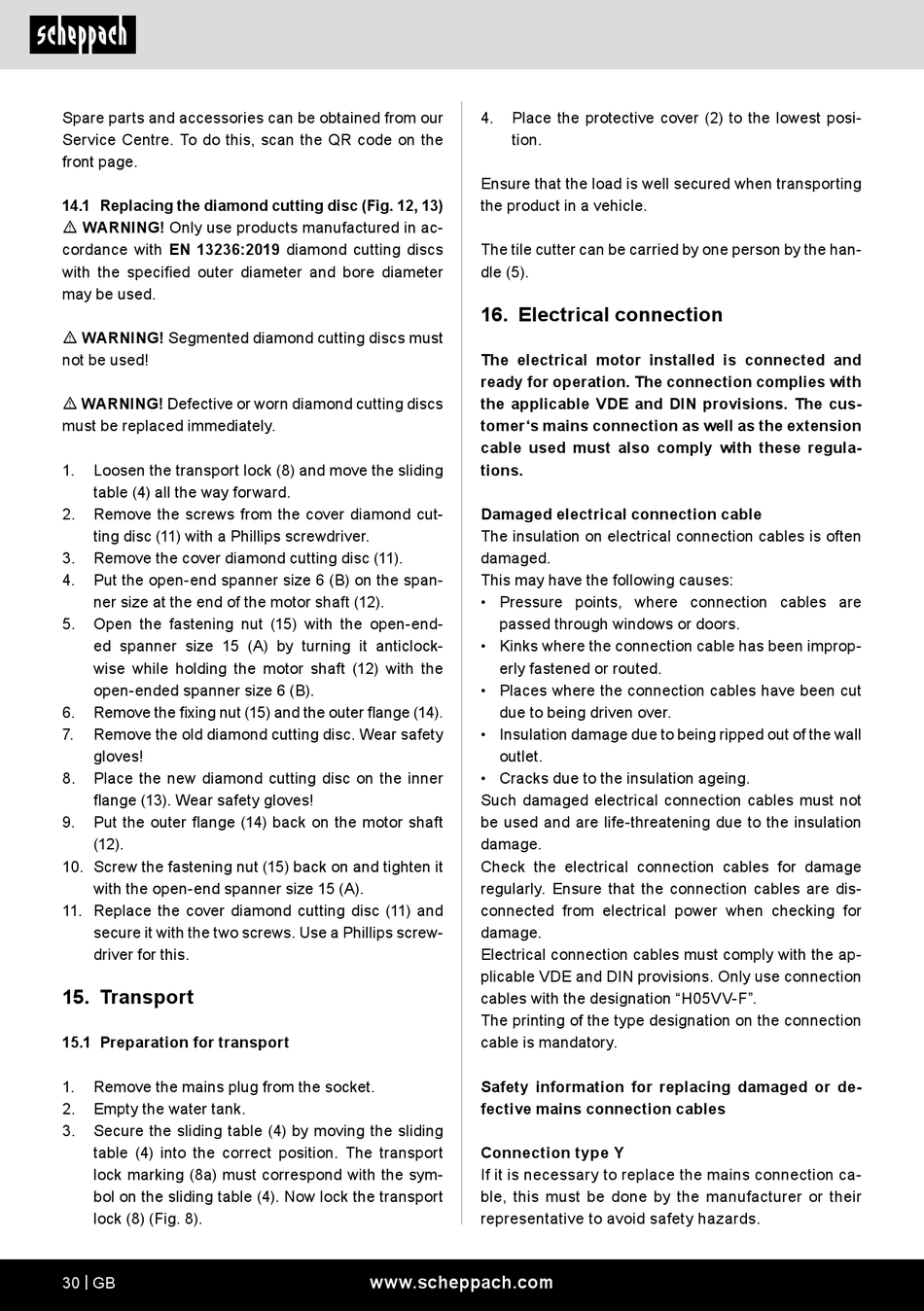

Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
14.1 Replacing the diamond cutting disc (Fig. 12, 13)
m WARNING! Only use products manufactured in ac-
cordance with EN 13236:2019 diamond cutting discs
with the specified outer diameter and bore diameter
may be used.
m WARNING! Segmented diamond cutting discs must
not be used!
m WARNING! Defective or worn diamond cutting discs
must be replaced immediately.
1.
Loosen the transport lock (8) and move the sliding
table (4) all the way forward.
2.
Remove the screws from the cover diamond cut-
ting disc (11) with a Phillips screwdriver.
3.
Remove the cover diamond cutting disc (11).
4.
Put the open-end spanner size 6 (B) on the span-
ner size at the end of the motor shaft (12).
5.
Open the fastening nut (15) with the open-end-
ed spanner size 15 (A) by turning it anticlock-
wise while holding the motor shaft (12) with the
open-ended spanner size 6 (B).
6.
Remove the fixing nut (15) and the outer flange (14).
7.
Remove the old diamond cutting disc. Wear safety
gloves!
8.
Place the new diamond cutting disc on the inner
flange (13). Wear safety gloves!
9.
Put the outer flange (14) back on the motor shaft
(12).
10. Screw the fastening nut (15) back on and tighten it
with the open-end spanner size 15 (A).
11. Replace the cover diamond cutting disc (11) and
secure it with the two screws. Use a Phillips screw-
driver for this.
15. Transport
15.1 Preparation for transport
1.
Remove the mains plug from the socket.
2.
Empty the water tank.
3.
Secure the sliding table (4) by moving the sliding
table (4) into the correct position. The transport
lock marking (8a) must correspond with the sym-
bol on the sliding table (4). Now lock the transport
lock (8) (Fig. 8).
30 | GB
4.
Place the protective cover (2) to the lowest posi-
tion.
Ensure that the load is well secured when transporting
the product in a vehicle.
The tile cutter can be carried by one person by the han-
dle (5).
16. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The cus-
tomer's mains connection as well as the extension
cable used must also comply with these regula-
tions.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the designation "H05VV-F".
The printing of the type designation on the connection
cable is mandatory.
Safety information for replacing damaged or de-
fective mains connection cables
Connection type Y
If it is necessary to replace the mains connection ca-
ble, this must be done by the manufacturer or their
representative to avoid safety hazards.
