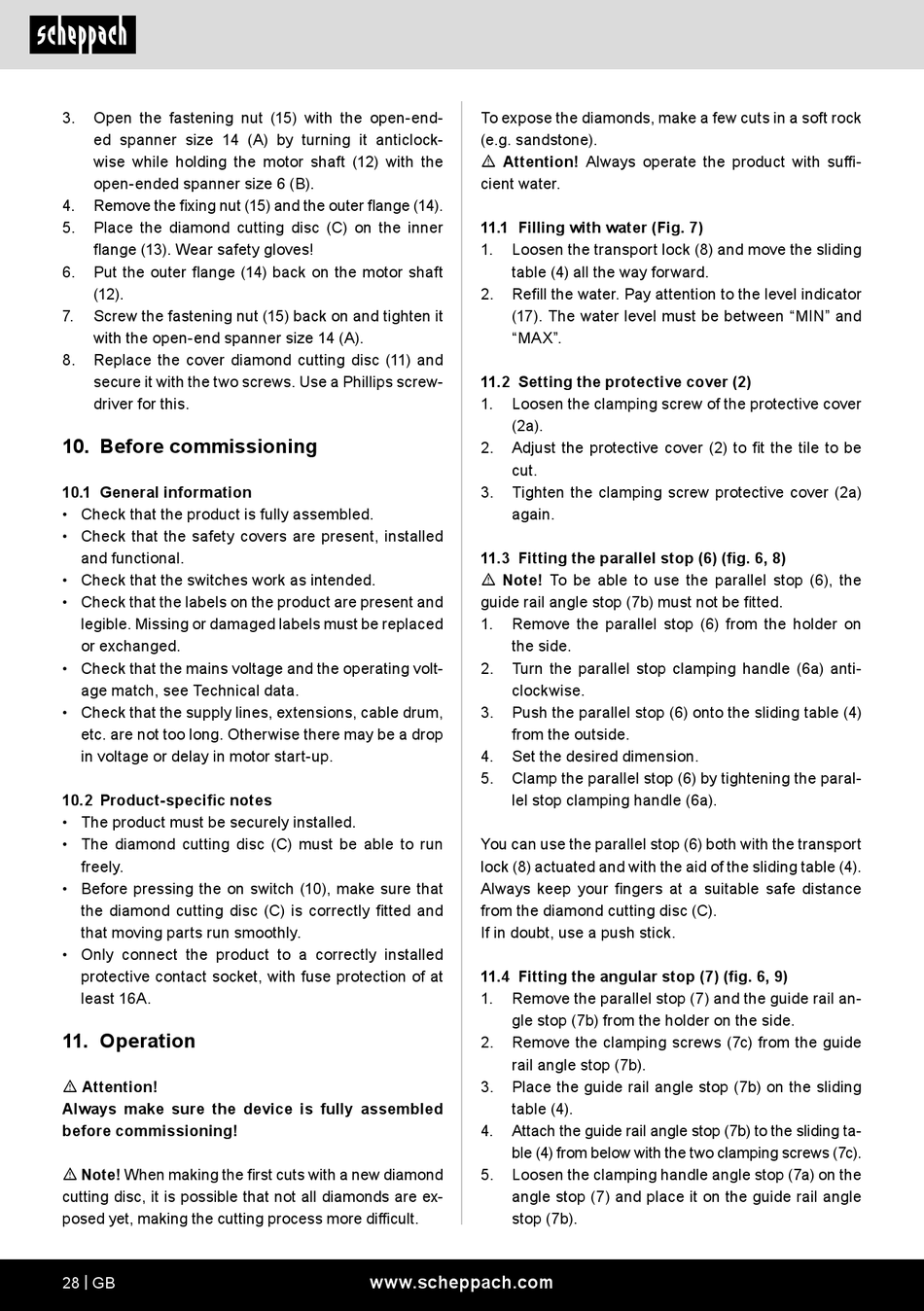

3. Open the fastening nut (15) with the open-end-
ed spanner size 14 (A) by turning it anticlock-
wise while holding the motor shaft (12) with the
open-ended spanner size 6 (B).
4. Remove the fixing nut (15) and the outer flange (14).
5. Place the diamond cutting disc (C) on the inner
flange (13). Wear safety gloves!
6. Put the outer flange (14) back on the motor shaft
(12).
7. Screw the fastening nut (15) back on and tighten it
with the open-end spanner size 14 (A).
8. Replace the cover diamond cutting disc (11) and
secure it with the two screws. Use a Phillips screw-
driver for this.
10. Before commissioning
10.1 General information
• Check that the product is fully assembled.
• Check that the safety covers are present, installed
and functional.
• Check that the switches work as intended.
• Check that the labels on the product are present and
legible. Missing or damaged labels must be replaced
or exchanged.
• Check that the mains voltage and the operating volt-
age match, see Technical data.
• Check that the supply lines, extensions, cable drum,
etc. are not too long. Otherwise there may be a drop
in voltage or delay in motor start-up.
10.2 Product-specific notes
• The product must be securely installed.
• The diamond cutting disc (C) must be able to run
freely.
• Before pressing the on switch (10), make sure that
the diamond cutting disc (C) is correctly fitted and
that moving parts run smoothly.
• Only connect the product to a correctly installed
protective contact socket, with fuse protection of at
least 16A.
11. Operation
m Attention!
Always make sure the device is fully assembled
before commissioning!
m Note! When making the first cuts with a new diamond
cutting disc, it is possible that not all diamonds are ex-
posed yet, making the cutting process more difficult.
28 | GB
To expose the diamonds, make a few cuts in a soft rock
(e.g. sandstone).
m Attention! Always operate the product with suffi-
cient water.
11.1 Filling with water (Fig. 7)
1. Loosen the transport lock (8) and move the sliding
table (4) all the way forward.
2. Refill the water. Pay attention to the level indicator
(17). The water level must be between "MIN" and
"MAX".
11.2 Setting the protective cover (2)
1. Loosen the clamping screw of the protective cover
(2a).
2. Adjust the protective cover (2) to fit the tile to be
cut.
3. Tighten the clamping screw protective cover (2a)
again.
11.3 Fitting the parallel stop (6) (fig. 6, 8)
m Note! To be able to use the parallel stop (6), the
guide rail angle stop (7b) must not be fitted.
1. Remove the parallel stop (6) from the holder on
the side.
2. Turn the parallel stop clamping handle (6a) anti-
clockwise.
3. Push the parallel stop (6) onto the sliding table (4)
from the outside.
4. Set the desired dimension.
5. Clamp the parallel stop (6) by tightening the paral-
lel stop clamping handle (6a).
You can use the parallel stop (6) both with the transport
lock (8) actuated and with the aid of the sliding table (4).
Always keep your fingers at a suitable safe distance
from the diamond cutting disc (C).
If in doubt, use a push stick.
11.4 Fitting the angular stop (7) (fig. 6, 9)
1. Remove the parallel stop (7) and the guide rail an-
gle stop (7b) from the holder on the side.
2. Remove the clamping screws (7c) from the guide
rail angle stop (7b).
3. Place the guide rail angle stop (7b) on the sliding
table (4).
4. Attach the guide rail angle stop (7b) to the sliding ta-
ble (4) from below with the two clamping screws (7c).
5. Loosen the clamping handle angle stop (7a) on the
angle stop (7) and place it on the guide rail angle
stop (7b).
