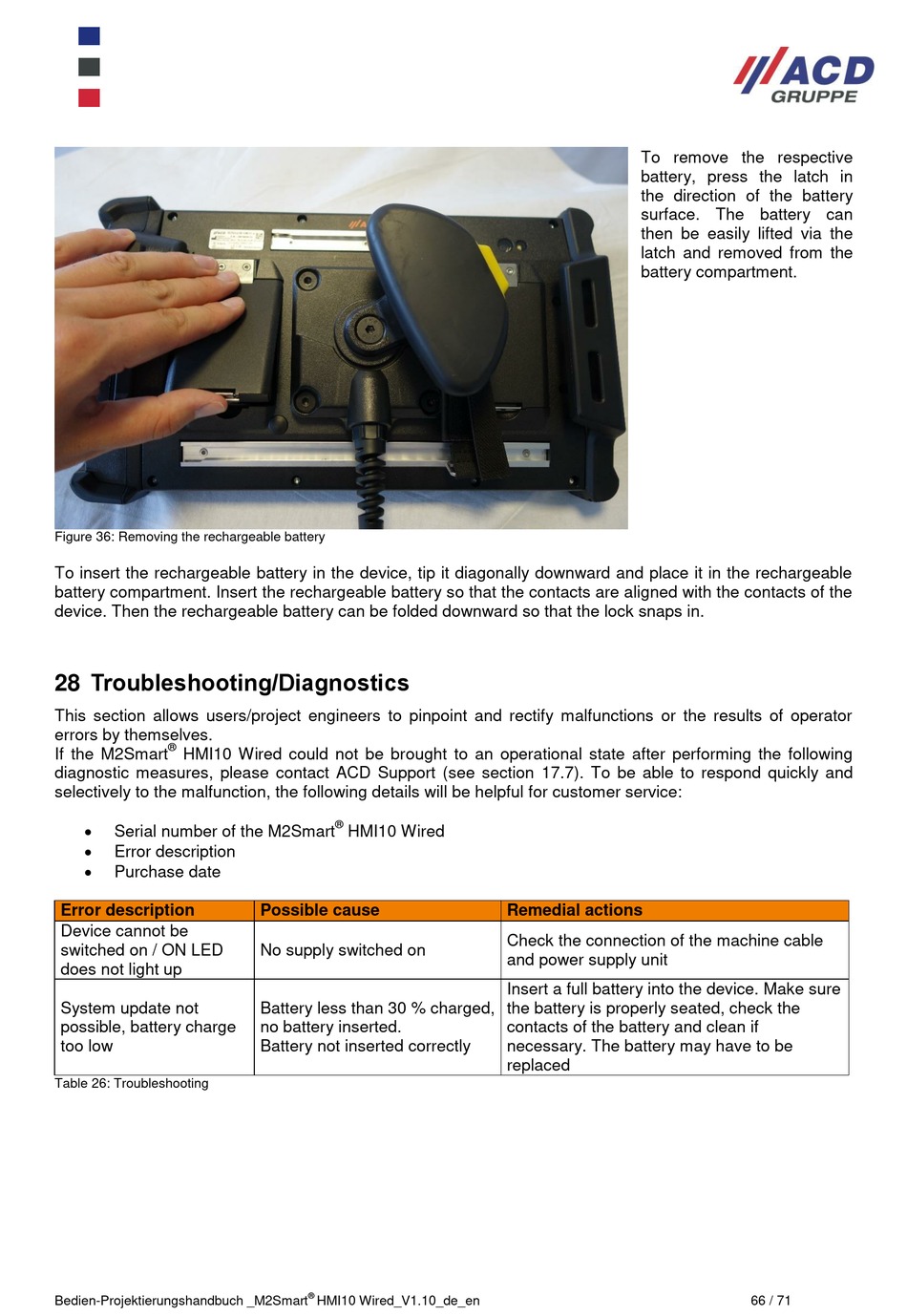

Figure 36: Removing the rechargeable battery
To insert the rechargeable battery in the device, tip it diagonally downward and place it in the rechargeable
battery compartment. Insert the rechargeable battery so that the contacts are aligned with the contacts of the
device. Then the rechargeable battery can be folded downward so that the lock snaps in.
28 Troubleshooting/Diagnostics
This section allows users/project engineers to pinpoint and rectify malfunctions or the results of operator
errors by themselves.
®
If the M2Smart HMI10 Wired could not be brought to an operational state after performing the following
diagnostic measures, please contact ACD Support (see section 17.7). To be able to respond quickly and
selectively to the malfunction, the following details will be helpful for customer service:

Serial number of the M2Smart

Error description

Purchase date
Error description
Device cannot be
switched on / ON LED
does not light up
System update not
possible, battery charge
too low
Table 26: Troubleshooting
Bedien-Projektierungshandbuch _M2Smart
®
HMI10 Wired
Possible cause
No supply switched on
Battery less than 30 % charged,
no battery inserted.
Battery not inserted correctly
®
HMI10 Wired_V1.10_de_en
To remove the respective
battery, press the latch in
the direction of the battery
surface. The battery can
then be easily lifted via the
latch and removed from the
battery compartment.
Remedial actions
Check the connection of the machine cable
and power supply unit
Insert a full battery into the device. Make sure
the battery is properly seated, check the
contacts of the battery and clean if
necessary. The battery may have to be
replaced
