1. Loosen the screw of the handle slightly with a Torx T30 screwdriver.
®

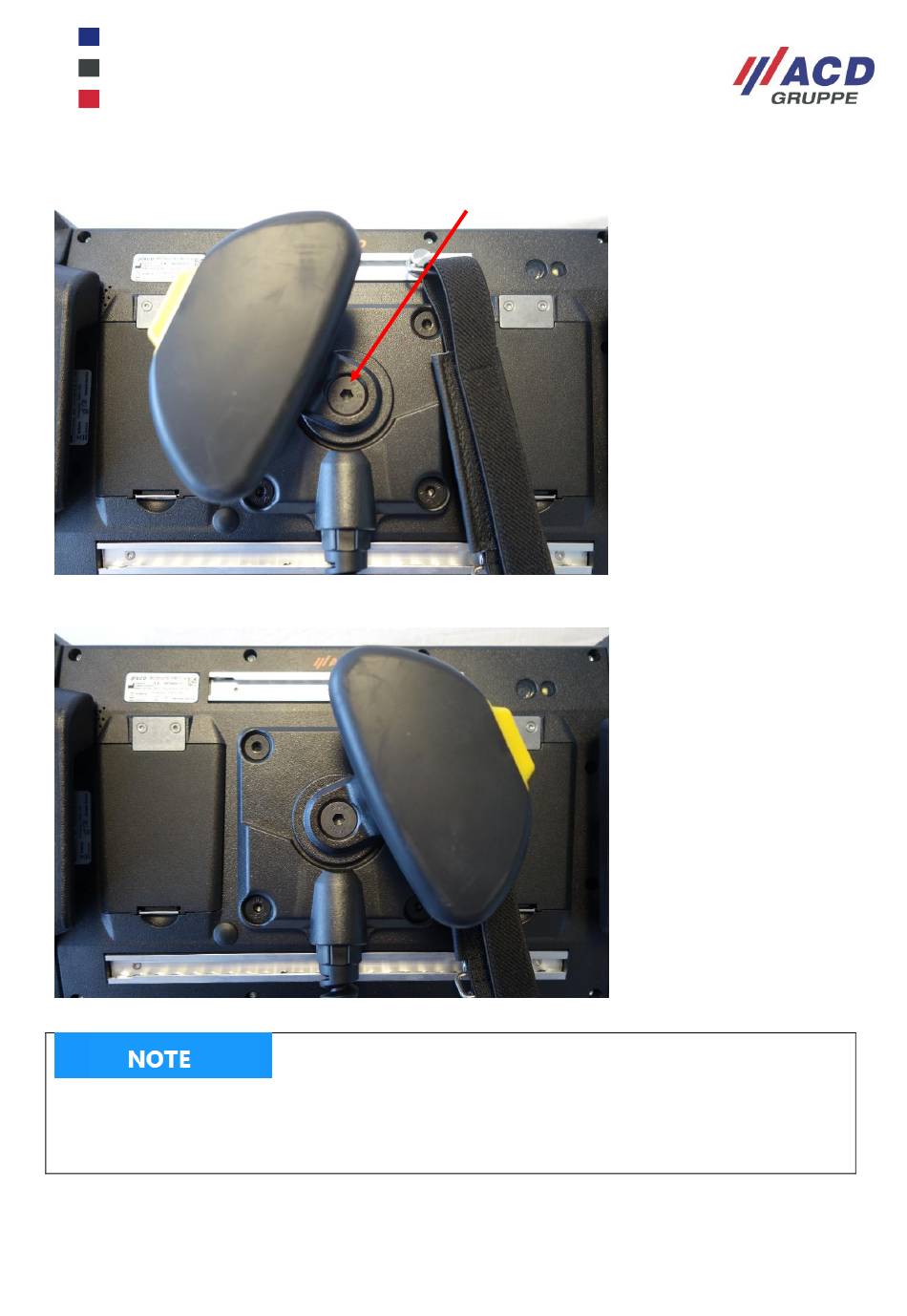

Figure 33: M2Smart HMI10 Wired rear adjustment handle 1
2. Turn the handle to the left-handed position and tighten the screw again. The tightening torque is 0.5 Nm.
®
Figure 34: M2Smart HMI10 Wired rear adjustment handle 2
Turn the handle only within the designated area for left/right-handed operation to avoid damaging the cable
to the enabling switch. Only loosen the screw, do not remove it completely. After the screw has been
opened and closed 10 times, the inserted seal must be replaced to ensure the specified protection class.
