22.2 Device Overview
®

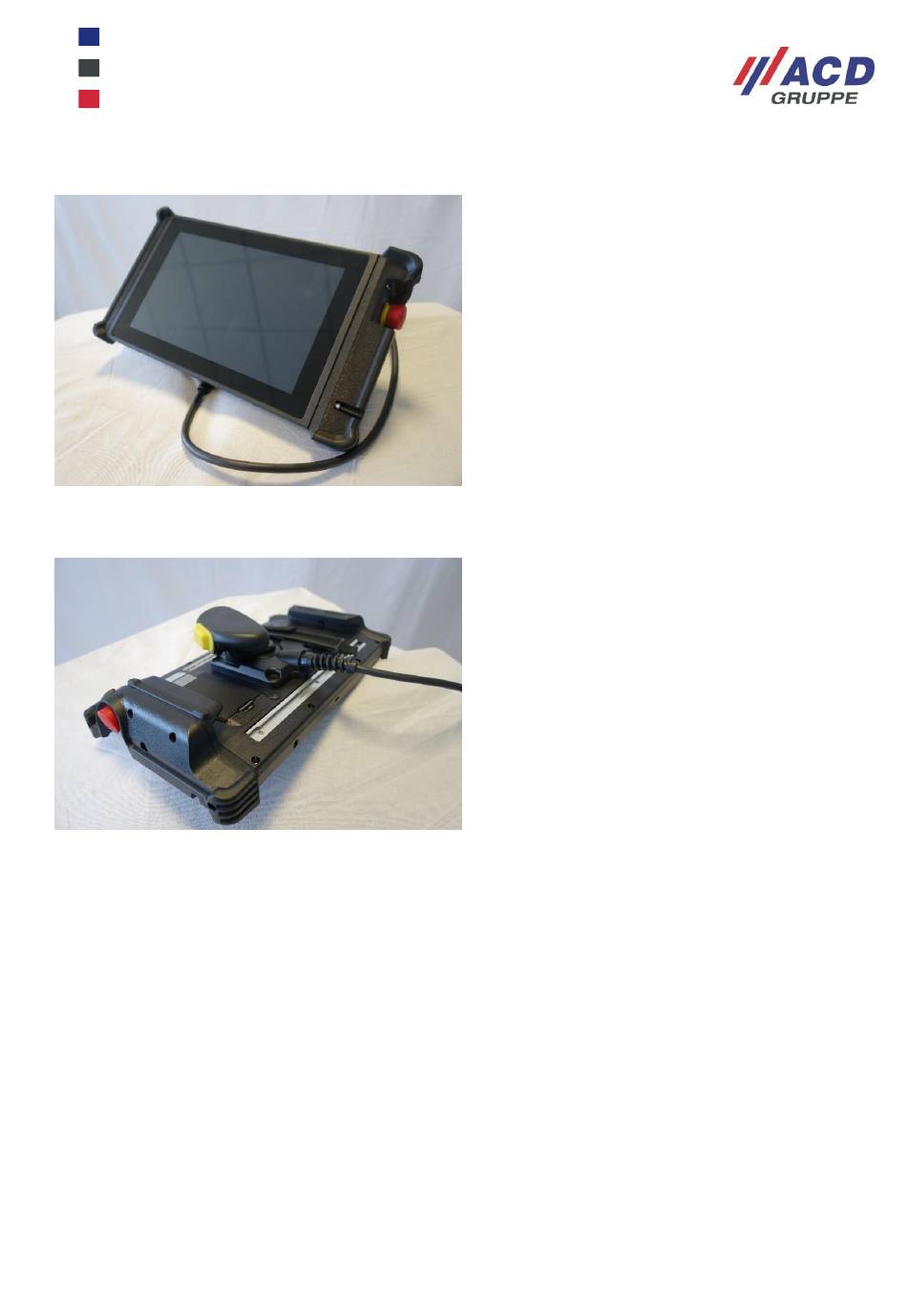

Figure 23: M2Smart HMI10 Wired with the emergency stop button
®
Figure 24: Rear of M2Smart
Bedien-Projektierungshandbuch _M2Smart
HMI10 Wired with enabling switch
®
HMI10 Wired_V1.10_de_en
The adjacent figure shows the
®
M2Smart HMI10 Wired with
emergency stop on the right
side.
The adjacent figure shows the
®
M2Smart HMI10 Wired with
the enabling switch on the
back.
The position of the enabling
switch can be ergonomically
adjusted by rotating the
handle.
